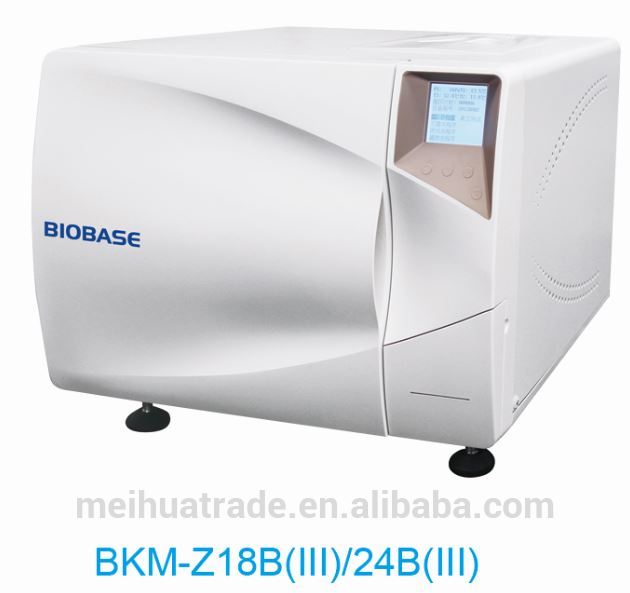

BKM-Z(III) Series Class B Table Top Autoclave Sterilizer (Most advanced technology)
Product Description
Built-in open type water tank
Easy-clean open type water tank
- Water quality monitor
- Water filter inside
- Water level sensor
- A fully injected water tank could support repeated program running
Brand-new operation interface
The LCD screen can display temperature, pressure, time, operation status, failure warning and other information. It is convenient for customers to observe the sterilizer running status
Multiple security protective device
Overhead auto protective device, multiple control and protection for steam generator safe door interlock, double overpressure protection, electronic circuit safety device
Automatic door
BKM-Z18/24/45B(III) models adopt auto-door structure that can effectively prevent scald. BKM-60/80B(III) models are equipped with door structure which adopts multipoint stitching technology to ensure seal reliability. The door is equipped with convenient one-button switch.
High-efficiency ultimate vacuum
The sterilizer adopts high-efficient, low-noise vacuum system which has excellent effects. The ultimate vacuum value can reach -90KPa or above
Multiple program types
The system has various programs that include packed items, unpacked items, custom program, rapid program, BD test program, vacuum test program, pre-heating program and drying program.
High-efficiency steam generator
BKM-Z18/24/45B(III) equipment with build-in instant steam generator. BKM-60/80B(III) equipped with build-in energy-storing steam generator
Other features
0.22 um high-efficiency sterilizing filter that guarantees the air is sterile and prevents repeated contamination. All the processors of water injection, pulse vacuum, heating up, sterilization, exhausting and drying are automatic
Model | BKM-Z18B(III) | BKM-Z24B(III) | BKM-Z45B(III) | BKM-Z60B(III) | BKM-Z80B(III) |
Capacity | 18 L | 24 L | 45 L | 60 L | 80 L |
Design Pressure | -0.1/0.3MPa | ||||
Design Temp. | 144℃ | ||||
Temp. Range | 105-138℃ | ||||
Chamber Material | Medical Stainless steel 304 | ||||
Standard Loading Tray | Type A | Type B | |||
Power Supply | 110/220V±10%, 50/60Hz | 220V±10%, 50/60Hz | |||
Power Consumption | 2.6 Kw | 2.6 Kw | 5.8 Kw | 7.4 Kw | 7.4Kw |
Chamber Size(mm) | φ250*350 | φ250*450 | φ316*618 | φ358*595 | φ358*717 |
External Size(mm) | 560*530*450 | 660*530*450 | 830*640*550 | 1002*730*560 | 1002*730*560 |
Packing Size(mm) | 780*720*680 | 880*720*700 | 1015*750*730 | 1180*830*795 | 1180*830*795 |
Gross Weight(kg) | 70 | 80 | 140 | 185 | 205 |
