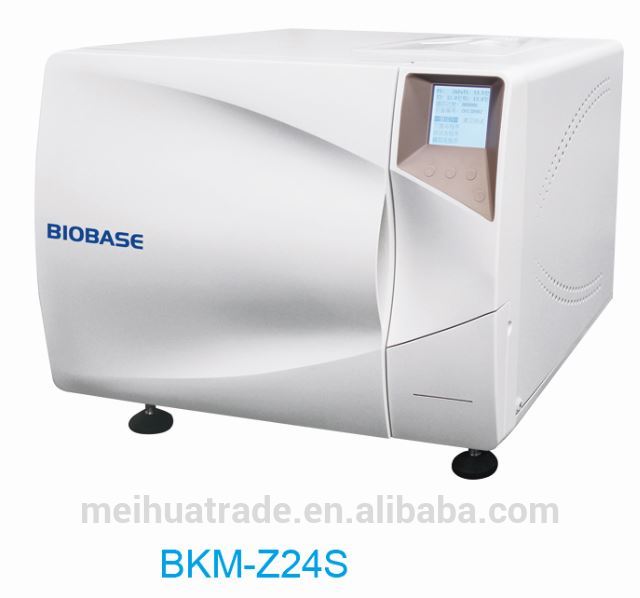

BKM-ZS Series Class S Table Top Autoclave Sterilizer (Most advanced technology)
Product Description
BKM-ZS series Class S autoclave is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in medical and health department such as laboratory, ophthalmology, operating room, CSSD, dialysis room, delivery room and etc. It is suitable for all wrapped or unwrapped solid instruments, liquid in lid-open container, implantable instruments, dressing fabric and rubber tubes, etc.
Built-in open type water tank
Easy-clean open type water tank
- Water quality monitor
- Water filter inside
- Water level sensor
- A fully injected water tank could support repeated program running
Brand-new operation interface
The LCD screen can display temperature, pressure, time, operation status, failure warning and other information. It is convenient for customers to observe the sterilizer running status
Multiple security protective device
Over temperature automatic protective device, multiple control and protection for steam generator, safe door interlock, double overpressure protection, and electronic circuit safety device
Automatic door
BKM-Z24/45/80S models adopt auto-door structure that can effectively prevent scald. BKM-Z80S model are equipped with door structure which adopts multipoint synchronous linkage pressing technology to ensure seal reliability.
Multiple program types
The system has various programs that include wrapped items, unwrapped items, custom program, rapid program, BD test program, washing program, pre-heating program and drying program.
High-efficiency steam generator
BKM-Z24/45S models are equipped with build-in instant steam generator. BKM-Z80S is equipped with build-in energy-storing steam generator which producing steam in high speed and good quality.
Other features
Heating, sterilizing, exhausting and drying procedure are all totally automatic control.
Chamber is heated by film heater, saving energy and time.
Optional accessories
Operation type: press-button operation or inductive operation
Record type: build-in printer
Electronic storage: USB flash disk
Remote monitoring: computer or tablet
Technical Parameters :
Model | BKM-Z24S | BKM-Z45S | BKM-Z80S |
Volume | 24 L | 45 L | 80 L |
Design Pressure | -0.1/0.3MPa | ||
Design Temp. | 144℃ | ||
Temp. Range | 105-138℃ | ||
Chamber Material | Medical Stainless steel 304 | ||

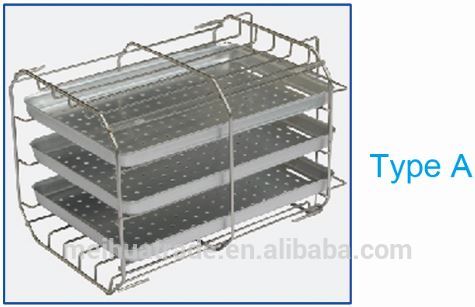

Standard Loading Tray | Type A | Type B | |
Power Supply | 110/220V±10%, 50/60Hz | 220V±10%, 50/60Hz | |
Power Consumption | 2.6 Kw | 5.8 Kw | 7.4 Kw |
Chamber Size(mm) | φ250*450 | φ316*618 | φ358*717 |
External Size(mm) | 660*530*450 | 830*640*550 | 1002*730*560 |
Packing Size(mm) | 880*720*700 | 1015*750*730 | 1180*830*795 |
Gross Weight(kg) | 80 | 140 | 205 |
