Features of glassware washer:
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program;
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process;
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃;
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process;
5.PLC touch screen control with preset 6 programs(including one customized program)
6. Safety protection—electronic security door lock to prevent unexpected door opening, water & drying air temperature dual control and equipped with emergency switch;
Standard Washing Procedure (can be self-designed by the user)
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying
Standard Washing Procedure (can be self-designed by the user)
Pre-cleaning——Washing with alkaline cleaner——Washing with neutralization Rinsex1f——Washing with hot water——Drying with hot air

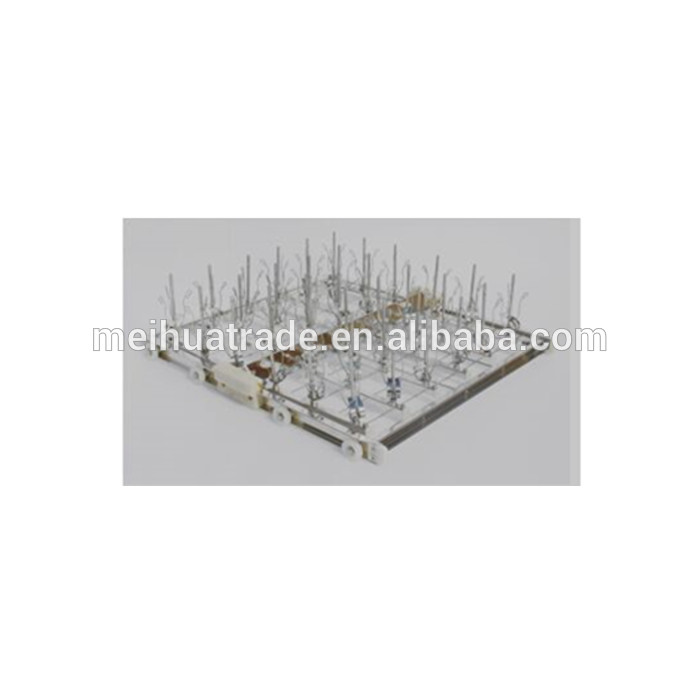

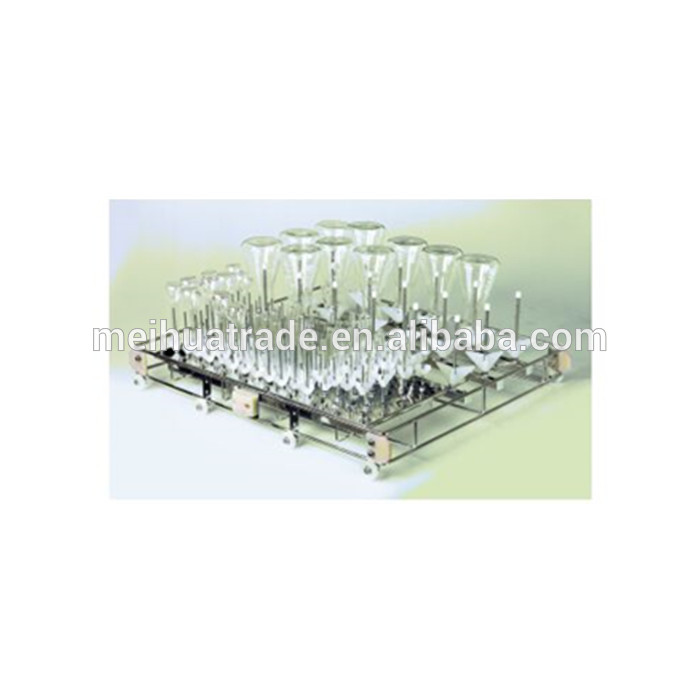

All cleaning racks can be removed completely, convenient to washing rack pipeline
Specifications of Automatic Glassware Washer
Model | BK-LW120 | BK-LW220 | BK-LW320 | BK-LW420 |
External Size (L*W*H) | 980*740*850 | 710*680*1750 | 710*680*1900 | 1100*900*2000 |
Capacity | 120L | 220 L | 320 L | 420 L |
Water Consumption/cycle | 10L | 15L | 18L | 25L |
Inlet Water Pressure | 0.3-0.8(Mpa) | |||
Max Noise | ≤50(dBa) | ≤55(dBa) | ≤55(dBa) | ≤60(dBa) |
Power Supply | 220V,50HZ | 380V,50-60HZ | ||
Consumption | 6KW | 17KW | 19KW | 22KW |
