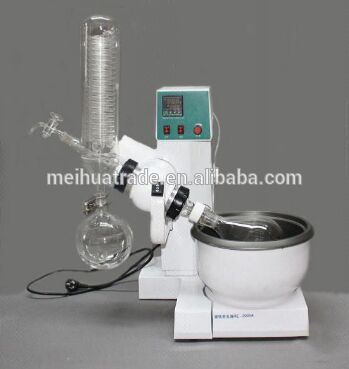

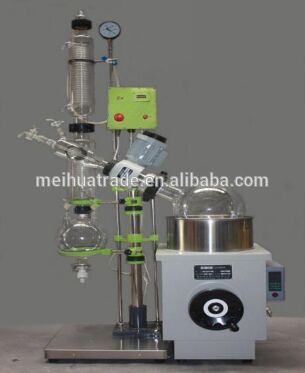

Rotary Evaporator
Rotary EvaporatorRE-2000A/2000B/2000E
1.Description of Rotary Evaporator RE-2000A/2000B/2000E/RE-52A/RE-52C/RE-5299
This product can form film under constant temperature heating and negative pressure conditions.Owning to its efficient
evaporation and condensation recovery of menstruum ,the product is employed in biological ,medical,chemical and food industries , especially for operations of heat-sensitive material,crystallization,separation and recovery of menstruum.
2.Features of Rotary Evaporator RE-2000A/2000B/2000E/RE-52A/RE-52C/RE-5299
1.Double layer PTFE material seals.
2.Humanization operation system,inbuilt gear, gear auto lifting system,
efficiently,stability and durably.
3.Auto-lifting,efficiently,stably,and durably.
4.Clear display of date and controlling information.
5.Electronic no class speed regulation,smooth running.
6.Dual-reflux,integrative standard joints for cooling coil and ground
glass receiving flask.
7.Valve feed pipe cover connecting tetrafluoroethylene pipe.
8.Stainless Al alloy and special industrial plastic structure.
3.Parameters of Rotary Evaporator RE-2000A/2000B/2000E/RE-52A/RE-52C/RE-5299
Parameters
| Model | RE-2000A | RE-2000B | RE-2000E | RE-52A | RE-52C | RE-5299 | ||
Rotary Bottle | 1 L 24#(standard size) | ||||||||
Collecting Bottle | 1 L 35#( ball mill mouth) | 0.5 L 24#(standard size) | |||||||
Condenser | Verticalφ85*430mm, | Verticalφ85*460mm, 29#(standard size) | |||||||
Charging Valve | 19#(standard size) | ||||||||
Rotating Speed | 0-180 rpm | 0-120 rpm | |||||||
Vacuum | -0.098 Mpa | ||||||||
Temp. Range | 0-99 ℃ | ||||||||
Temp. Accuracy | ±1℃ | ||||||||
Stroke Height | 120 mm | ||||||||
Rotating Power | 40W | 30W | |||||||
Heating power | 1.5KW | 1KW | |||||||
Shelf Material | Aluminum alloy | Powder coating anticorrosive | |||||||
Chamber Material | Teflonφ 240*140mm | SS φ240*120mm | SS φ250*140mm | ||||||
Power Supply | 220,110V/50,60Hz | 220V/50Hz | 220,110V/50,60Hz | ||||||
External Size | 660*420*830 mm | 700*440*1005 mm | |||||||
Packing Size | 630*560*540 mm | 590*460*460 mm | |||||||
Gross Weight | 26 Kg | 21Kg | |||||||
| Standard Accessory | 1000LRotary bottle*1,500L recycling bottle*1 | 1000Lrotary bottle*1,500L recycling bottle*1 | ||||||
| Optional Accessory | 0-400 ℃ oil bath,304 SS bath, Transparent bath cover ,Vacuum pump, Recirculating chiller | 0-400 ℃ oil bath, Transparent bath cover, Vacuum pump, Recirculating chiller | ||||||
