2016 single beam scanning UV/VIS spectrophotometer /price of spectrophotometer with Wavelength Range 200-1020nm

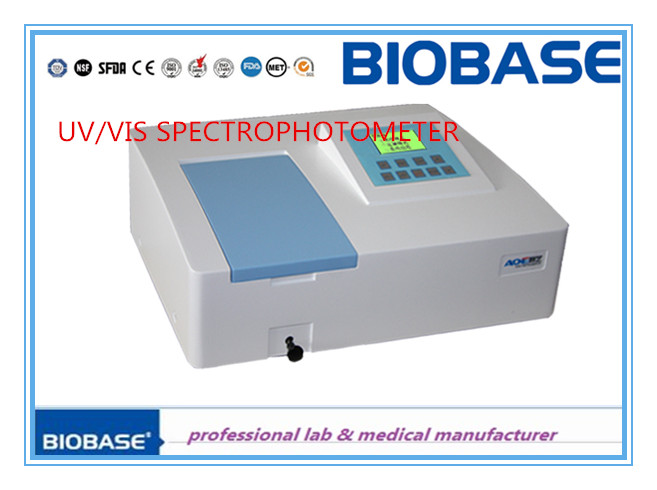

1, picture of UV/VIS spectrophotometer
2. Accessory of UV/VIS spectrophotometer
3. Main types of UV/VIS spectrophotometer
4. Features of UV/VIS spectrophotometer
1.Large LCD screen (128*64 Dots) with saving standard curve function
2.Imported & Environmental Deuterium lamp, preventing from Ozone inhalation
3.Adopted high-class grating with wholly hermetic light path design, to ensure the instrument has the super low stray light
4.Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
5.Pre-aligned design ensures the user can change lamps conveniently
6.Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically
7.With Si02 coating optical mirror, reducing the pollution from outside fully
8.Optional PC Software to expand the applications to Quantitative, Multi-Wavelength and Kinetics
9.Widely used for Organic chemistry, Inorganic chemistry, Life sciences, foods, Medicine and health, Agriculture,
Geology, Metallurgy and Environment etc. fields
Basic Fuctions:
1. Photometry (Basic)
Test Abs., Transmittance by fixed wavelength
2.Quantitative
a. C Mode: EstablishC=K*A curve, test sample concentration
b. F Mode: Establish A=K1*C+K0, test sample concentration
c. Display and save curve, test data (V-1200).
Basic Model
Con. Test C=K*A+B
Parameter of UV/VIS spectrophotometer
Model | BK-UV1000 | BK-V1000 | BK-UV1200 | BK-V1200 |
Optical System | Single Beam, Grating 1200 lines/mm | |||
Wavelength Range | 200-1020nm | 325-1000nm | 200-1020nm | 320-1020nm |
Spectral Bandwidth | 4nm | |||
Wavelength Accuracy | ± 1.8nm (2nm) | ±1.5nm (2nm) | ||
Wavelength Repeatability | ≤ 0.2nm (11D: 1nm; V12, UV12: 0.8nm; UV-11: 1nm) | |||
Photometric Accuracy | ± 0.002A (0-0.5Abs), ± 0.004A (0.5-1.0Abs), ± 0.4% T (0-100% T) (0.004A, 0.5) | |||
Photometric Repeatability | 0.001Abs (0-0.5Abs), 0.002Abs (0.5-1.0Abs), ≤ 0.2% T (0-100% T) | |||
Stray Light | ≤ 0.1 % T @ 360nm; 220nm(0.2) | ≤ 0.05% T @ 360nm (0.2) | ||
Stability | ± 0.001A / h @ 500nm (11D: 0.004, V12, UV12, UV11: 0.002) | |||
Noise | ± 0.001A | |||
Display | 128*64 Dots LCD | |||
Photometric Mode | T, A, C, E | |||
Photometric Range | 0-200%T,-0.301-3.0A | |||
Detector | Silicon Photodiode | |||
Light Source | Deuterium Lamp, Tungsten Lamp | |||
Input | Membrane Keypad | |||
Output | Parallel Print,USB1.0 | |||
Compartment | Solid Sample Holder, Micro Cell Holder, 10-100mm Cell Holder | |||
