Biobase is a professional manufacture of laboratory products from 1999.
We supply a lot kinds of laboratory equipment and medical material.
BK-UV1800/BK-UV1600/BK-V1800/BK-V1600 UV-Visible Spectrophotometer,PC controlled Spectrophotometer,spectrophotometer manufacturer

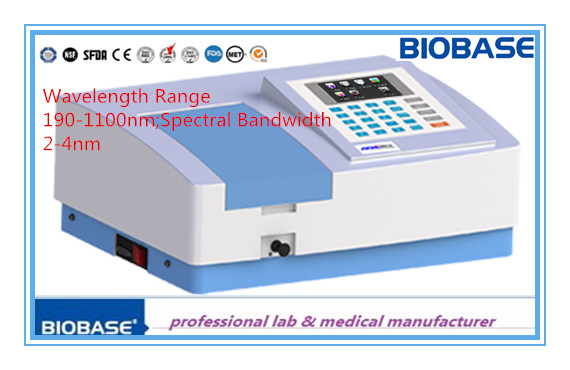

1. Picture of PC controlled Spectrophotometer with 190-1100nm
2. Accessory of PC controlled Spectrophotometer with 190-1100nm
3.Main types of spectrophotometer
4. Features of PC controlled Spectrophotometer with 190-1100nm
1.Large LCD screen(480*272 Dots) with 65 thousand true color and support U disk data saving
2.Imported & Environmental Deuterium lamp, preventing from Ozone inhalation
3. Data output: Data can be exported to U disk (USB Output)
4. Print port: Instrument can connect PCL printer for printing A4 paper (USB Port)
5. Adopted high-class grating with wholly hermetic light path design, to ensure the instrument has the super low stray light
6.Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
7.Pre-aligned design ensures the user can change lamps conveniently
8.With GLP self-check function, check the wavelength accuracy and Photometry accuracy, can provide test report and power-off protection
9.Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically
10With Si02 coating optical mirror, reducing the pollution from outside fully
11Optional PC Software to expand the applications to Quantitative, Multi-Wavelength and Kinetics, Spectrum Scanning, DNA/Protein test
Basic Functions:
1, Photometry
Test Abs., Transmittance and Energy by fixed wavelength
2, Quantitative
Linear fit and Linear fit through zero two modes
a. Coefficient, Standard Sample input and Standard Sample read three
modes to establish standard curve
b. Establish A=K1*C+K0, can search original data, graph curve,
parameters settings
c. Can save 240 group curves, can test 240 data in each curve
d. Double wavelength, Triple wavelength test functions
3, Kinetics
Used for time course scanning or reaction ratecalculations,
can search all data.
4, Multi-Wavelength
Can test Transmittance and Abs. with 8 different wavelengths at
most
5. Parameter of C controlled Spectrophotometer with 190-1100nm
Model | BK-UV1800 BK-UV1800PC | BK-UV1600 BK-UV1600PC | BK-V1800 BK-V1800PC | BK-V1600 BK-V1600PC | |
Optical System | Single Beam, Grating 1200 lines/mm | ||||
Wavelength Range | 190-1100nm | 320-1100nm | |||
Spectral Bandwidth | 1.8nm (2nm) | 4nm | 1.8nm(2nm) | 4nm | |
Wavelength Accuracy | ± 0.5nm | ||||
Wavelength Repeatability | ≤ 0.2nm(0.3) | ||||
Photometric Accuracy | ± 0.002A (0-0.5Abs), ± 0.004A (0.5-1.0Abs), ± 0.5% T (0-100% T)(0.5, 0.004) | ||||
Photometric Repeatability | 0.001Abs (0-0.5Abs), 0.002Abs (0.5-1.0Abs), ≤ 0.2% T (0-100% T) | ||||
Stray Light | ≤ 0.04% T @ 360nm; 220nm (0.05) | ≤ 0.04% T @ 360nm (0.05) | |||
Stability | ± 0.001A / h @ 500nm | ||||
Baseline Flatness | ± 0.002A | ||||
Noise | ± 0.0005A | ||||
Display | 480 * 272 65 thousand true color TFT LCD | ||||
Photometric Mode | T, A, C, E | ||||
Photometric Range | 0-200% T,-0.301-3.0A | ||||
Detector | Silicon Photodiode | ||||
Light Source | Deuterium Lamp, Tungsten Lamp | ||||
Input | Membrane Keypad | ||||
Output | USB2.0*2 Print and data output USB1.0 Connect PC | ||||
Compartment | Optional 8 Auto Cell holder, Solid Sample Holder, Micro Cell Holder, 10-100mm Cell Holder | ||||
With a wooden or carton boxes, strong packing, Ocean shipping,air transport or express courier service is available.
