NEW MS7-H550-Pro Laboratory Hotplate Magnetic Stirrer

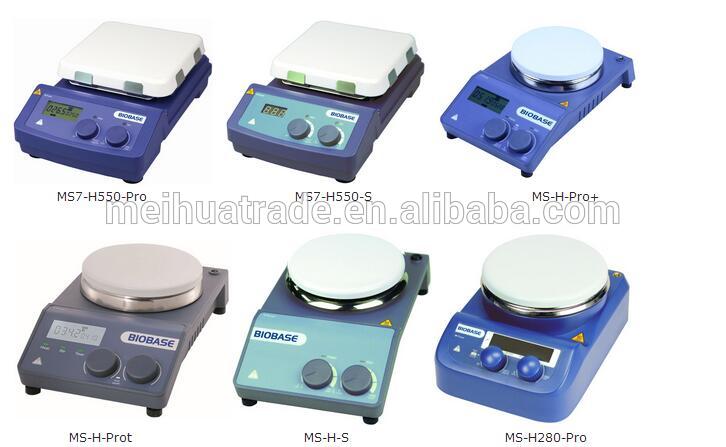

MS7-H550-Pro MS7-H550-S MS-H-Pro+ MS-H-Prot (with timer) MS- MS-H280-Pro
Technical parameter of Laboratory Hotplate Magnetic Stirrer
Model | MS7-H550-Pro | MS7-H550-S | MS-H-Pro+ | MS-H-Prot | MS-H-S | MS-H280-Pro |
Work Plate Size | 184x184mm | 135mm | ||||
Work Plate Material | Glass ceramic | Stainless steel with ceramic coated | ||||
Max. Stirring Capacity | 20L | 10L | 20L | 3L | ||
Motor Type | Brushless DC motor | Shaded pole motor | Brushless DC motor | DC motor | Brushless DC motor | |
Motor Input | 18W | 15W | 18W | 5W | ||
Motor Output | 10W | 1.5W | 10W | 3W | ||
Speed Range | 100~1500rpm | 0~1500 rpm | 100~1500rpm | 0~1500rpm | 100~1500rpm | |
Speed Display | LCD | Scale | LCD | Scale | LED | |
Speed Display Accuracy | ±1rpm | / | ±1rpm | / | ||
Heating Output | 1000W | 500W | ||||
Heating Temp. Range | RT-550℃, increment 1 | RT-550℃, increment 5 | RT-340℃, increment 1 | RT~340℃ | RT-280℃, increment 1 | |
Control Temp. Precision | ±1(<100℃) ±1%(>100℃) | ±10℃ | ±1(<100℃), ±1%(>100℃) | / | ±1(<100℃) ±1%(>100℃) | |
Max Temp. | 580℃ | 360℃ | 350℃ | 320℃ | ||
Temp. Display | LCD | LED | LCD | Scale | LED | |
Display Temp. Accuracy | ±0.1℃ | ±1℃ | ±0.1℃ | / | ±1℃ | |
External Temp. Sensor | Optional PT1000 | / | Optional PT1000 | |||
Max. Stirrer Bar Length | 80mm | 50mm | ||||
Interface | RS232 | / | RS232 | / | / | |
Protection Type | IP21 | IP42 | IP21 | |||
Ambient Temp. | 5-40℃ | |||||
Relative Humidity | 80% | |||||
Power Consumption | 1050W | 1030W | 550W | 530W | 515W | |
Power Supply | AC110/220W±10%, 50/60Hz | |||||
External Size(W*D*H) | 215*360*112mm | 160*280*85mm | 150*260*80mm | |||
Package Size(W*D*H) | 280*420*200mm | 210*345*160mm | 225*290*190mm | |||
Gross Weight | 6.5kg | 3.5kg | 2.5kg | |||
