Weak acid and alkali chemicals storage cabinet/storage safety cabinet to store various hazardous materials
1. technical parameter of Weak acid and alkali chemicals storage cabinet
Model | BK-4-CS | BK-12-CS | BK-30-CS | BK-45-CS | BK-60-CS | BK-90-CS |
Capacity | 4 gallon (15L) | 12gallon (45L) | 30gallon (113L) | 45gallon (170L) | 60gallon (226L) | 90gallon (340L) |
Selective colors | Yellow, blue, red, white (not available for PP material cabinet) | |||||
Steel plate | Thickness over 1.2mm | |||||
Insulation layer | Thickness 4cm | |||||
Storage container | Height 50cm | |||||
Door | Single | Single | Double | Double | Double | Double |
Material | Cold-rolled steel with epoxy paint, PP | |||||
Shelf | 1 | 1 | 1 | 2 | 2 | 2 |
External size (H *W*D) | 56*43*43cm | 89*59*46cm | 112*109*40cm | 165*109*46cm | 165*86 *86cm | 165*109 *86cm |
Package size (H*W*D) | 76*58*58 cm | 109*74*61 cm | 132*124*55 cm | 185*124*61 cm | 185*101*101 cm | 185*124*101 cm |
N.W. | 30KG | 60KG | 100KG | 138KG | 165KG | 190KG |
G.W. | 40KG | 75KG | 120KG | 169KG | 190KG | 225KG |
3. Introduction of Weak acid and alkali chemicals storage cabinet
According to international practice, there are four colors of common used materials storage safety cabinet to store various hazardous materials.

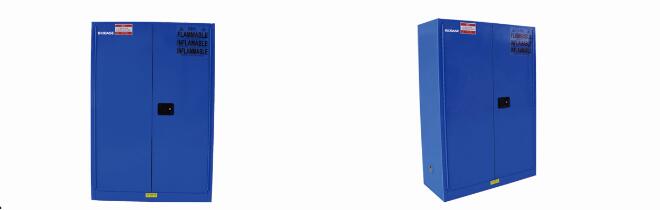

Generally, theyellowcabinets are used for storing flammable materials, theredfor combustible materials, thebluefor weak corrosive materials (Strongly corrosive materials can only be stored inPP(polypropylene) material storage cabinet, such as sulfuric acid, nitric acid, hydrofluoric acid and other strongly corrosive materials), and the white are used for storing the toxic materials.
The color is for distinguishing different type materials in storage and convenient using. The common effect of the each type safety cabinet is for fire prevention, heat insulation and secure storage.
4. Features of Weak acid and alkali chemicals storage cabinet
1. Two-layer anti-fire steel plate with 38mm between two steel plates for insulation.
2. Main body material: 1.2mm steel plate painted with epoxy resin.
3. Safety: Three-linkage lock. The door has two keys and is available to use padlock which realize safe management of double-locked with two key holders.
4. Anti-leakage liquid tank with height of 50mm ensures no liquid overflow.
5. Specific warning labels for different kinds of safety storage cabinet.
6. Installed with double air vents which are set with anti-fire devices.
7. Adjustable anti-leakage shelves.
