Benchtop Ratio Turbidimeter/nephelometer for Measurement of light scatter and decay of the insoluble particles

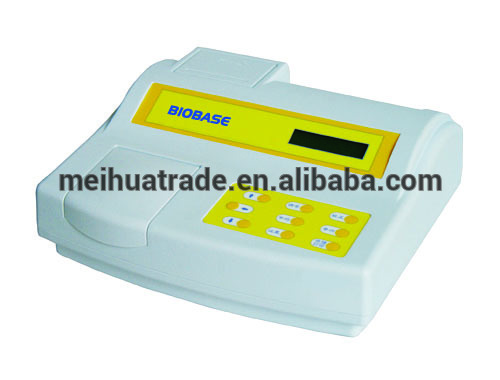

1, picture of Ratio Turbidimeter/nephelometer
2.Features of Ratio Turbidimeter/nephelometer
1. Measurement of light scatter and decay of the insoluble particles suspended in water or transparent liquid.
2. Quantitative analysis of particle.
3.Technical parameters of Ratio Turbidimeter/nephelometer
Model | BK-T200R | BK-T2000R | BK-T4000R |
Light source | Tungsten halogen lamp 6V, 10W | ||
Receiving element | Silicon photocell | ||
Measurement range | 0.00NTU-50.0NTU; 50.1NTU-200 NTU (automatic range switchover) | 0.00NTU-50.0NTU; 50.1NTU-200NTU; 201NTU-2000NTU (automatic range switchover) | 0.000NTU-50.00NTU; 50.01NTU-200.0NTU; 200.1NTU-2000NTU 2001NTU-4000NTU (automatic range switchover) |
Display | LCD | ||
Allowable error of indication | 0-200NTU:≤±8% | a) 0-200NTU:≤±8% b)201-2000NTU:≤±6% | Within the measurement range, the indication relative error is less than ±6% |
Zero Drift | ≤±3%F.S | ≤±0.3%F.S | |
Stability of indication | ≤±1%F.S | ||
Repeatability | ≤2% | ||
Sample bottle | Φ25 mm*95 mm | ||
Sample volume | 20-30 ml | ||
Power Supply | 220V/110V 50/60 Hz | ||
Packing Size | 425*421*295mm | ||
Gross Weight | 9kg | ||
