BIOBASE China Laboratory and Food Table Top Type Vacuum Freeze Dryer

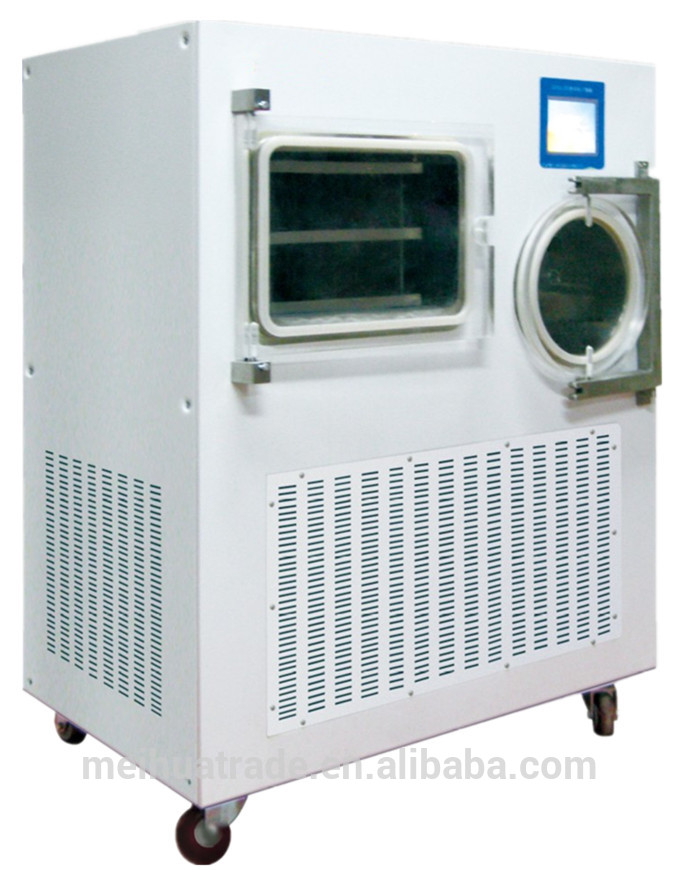

1, Picture of the Table Top Type Vacuum Freeze Dryer,lyophilizer freeze dryer for Pharma or food
2. Technical parameters of the Table Top Type Vacuum Freeze Dryer,lyophilizer freeze dryer for Pharma or food:
Model | BK-FD10S | BK-FD10T | BK-FD10P | BK-FD10PT | |||
Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering with 8 port manifold | |||
Final Condenser Temp (℃) | ≤-56 | ≤-56 | ≤-56 | ≤-56 | |||
Vacuum Degree (Pa) | <10 | <10 | <10 | <10 | |||
Freeze Drying Area (m2) | 0.12 | 0.09 | 0.12 | 0.09 | |||
Ice Condenser Capacity (Kg/24h) | 3 | 3 | 3 | 3 | |||
Shelves | 4 | 3 | 4 | 3 | |||
Material Loading Capacity/Shelf (ml) | 300 | 300 | 300 | 300 | |||
Material Loading Capacity (ml) | 1200 | 900 | 1200 | 900 | |||
Freeze Drying Time (H) | 24 | 24 | 24 | 24 | |||
Manifold | / | / | 8 pieces | 8 pieces | |||
USB Interface | Yes | Yes | Yes | Yes | |||

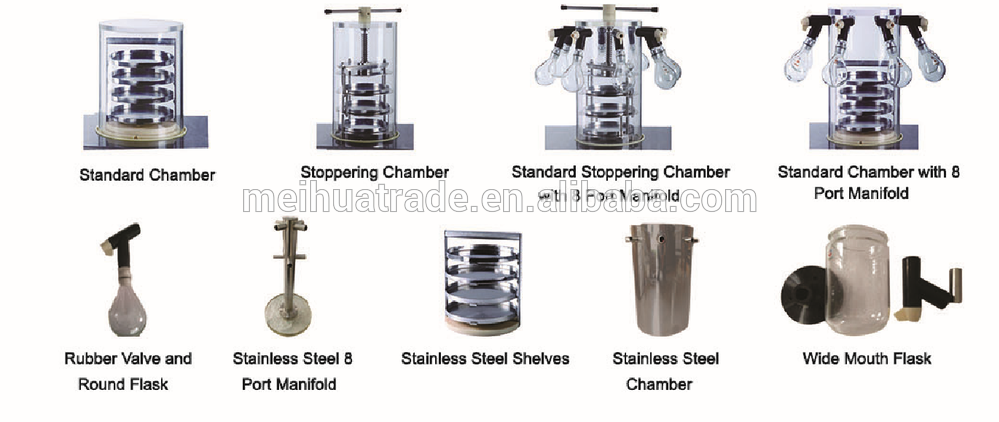

Drying Chamber (Standard) | Transparent acrylic | ||||||
Vacuum Pump (Standard) | Model: 2XZ-2, Speed: 2L/s (China-Made) | ||||||
Control System | Microprocessor, touch screen | ||||||
Power Supply | AC220V±10%,50/60Hz | ||||||
External Size (W*D*H) | 580*625*530/960mm | ||||||
Package Size | Main Body | 670*660*610mm | |||||
Drying Chamber | 350*350*570mm | ||||||
Vacuum Pump | 570*370*190mm | ||||||
Gross Weight | 105kg | 110kg | 110kg | 110kg | |||
Note | Shelf(plate) heating and cold trap(ice condenser) defrosting function are optional; The vacuum pump, standard drying chamber and all other accessories,like valve, flask etc. are standard accessories; The vacuum pump is independently packed in a separate package. | ||||||
