Karl fischer titration fully automatic Potential titration ,conductivity titration and constant titration

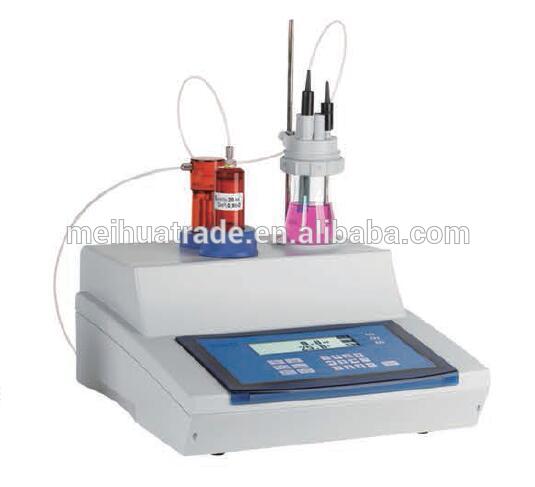

1.Picture show of automatic potential titrator ,conductivity titration and constant titration

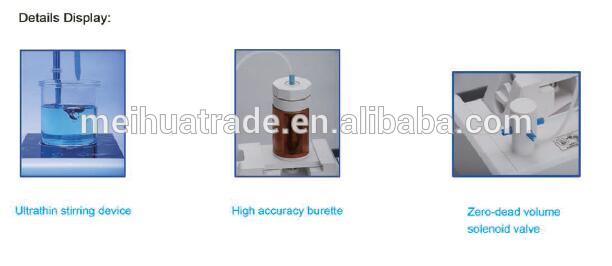

2.Feature show of automatic potential titrator ,conductivity titration and constant titration
1. Large LCD touch screen.
2. Potential titration ,conductivity titration and constant titration can be achieved through different unit combination
3. Prestore with preselected endpoint titration, blank titration or manual titration function and other automatically generate specific titration mode can be programmable.
3. Technical Parameter show of automatic potential titrator ,conductivity titration and constant titration
Model Specifications | BT-5 | ||
MeasuringUnit | Potential standard | Measuringrange | ±1999.0 mV 0-14.00 pH |
Resolution | 0.1mV 0.01pH | ||
Accuracy | ±0.03%FS ±0.01pH±1 bit | ||
Constant optional | Measuring range | 0-199.9 μA 0-19.99 μA 0-1.999 μA 0-0.199 μA | |
Polarization voltage | 30mV 50mV 100mV | ||
Accuracy | Control titration sensitive ±5%FS Polarized current inspection error ±2.5%FS | ||
Conductivity optional | Measuring range | 0.000μS/cm-199.9 mS/cm | |
Resolution | 0.001μS/cm | ||
Accuracy | ±1.0% FS | ||
Temperature
| Measuring range | -5.0-105.0 ℃ | |
Resolution | 0.1℃ | ||
Accuracy | ±0.3℃±1 bit | ||
Titration System | Repetitivity of titration analysis | 0.2% | |
Titration volume accuracy | 10ml burette: ±0.025ml 20ml burette: ±0.035ml | ||
Burette resolution | 10ml burette: 1/10000 20ml burette: 2/10000 | ||
Burettesupplementary speed | 50±10s when burette is full scale | ||
Control device | Large LCDtouchscreen Computer software controller | ||
Stability | ±0.3mV±1 bit/3h | ||
Stirring system | PWM technology adjust by software low noise | ||
Output interface | RS232 bi-directional | ||
Power supply | AC110V/ 220V±10% 50/60HZ | ||
External size W*D*H | 360*300*300mm | ||
Package size W*D*H | 510*410*490mm | ||
Gross Weight | 13kg | ||
