China BIOABE Mini Dosing DPP-F6 Series Liquid Dispensing Peristaltic Pump
Dispensing Peristaltic Pump DPP-F6 Series is suitable for non-pollution and high precision liquid dispensing.
The filling accuracy is 0.5%-1%.
Features
1. 4.3 inch color LCD display, touch screen control, dynamic display working status, flow volume and motor speed,etc.
2. Serve motor drive, precise control, strong power, low vibration and low noise.
3. V-CIR circuit system, use imported chips, computing speed fast, reliable performance, working stable.
4. V-EMB operation system, embedded software design, powerful function, friendly interface, attention to users’ experience.
6. F-EMB operation system with unique accurate angle control technology, achieve high accuracy dispensing and dosing.
7. Intelligent calibration function, suitable for high precision liquid filling.
8. Online micro adjusting function adjust the flow rate without stop the pump.
9. The pump can store 60 commonly used filling modes, save setting time.
10. Back suction angle setting, avoid liquid drop off when the pump stop working.
11. External control start/stop function, it can connect with foot pedal switch. The pump also can be unified controlled by the host computer when working in filling line.
12. Automatic temperature control system, reducing the fan noise effectively.
13. Load-shedding memory function, store the running parameters in time, safe and reliable.
14. Fast filling function, not only can be used for washing the tubing, but also can fill liquid to the tubing fast.
15. Strong anti-jamming feature, wide voltage design, suitable for complex power supply environment.
16. Circuit board spray with three paint, anti-dust, anti-moisture, anti-static, resist corrosion.
17. 304 stainless steel housing, use seamless welding technology, avoid accidental spilled liquid on the housing infiltrate inside, to protect the inside circuit board.

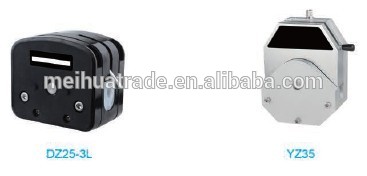

18. DZ25-6L pump head, aluminum alloy material, 304 stainless steel rollers, strong rigidity, high accuracy, reliable performance.
Product Composition and Flow Rate Range
Model | Drive | Motor Type | Pump Head | Tubing Size | Speed Range(rpm) | Flow Rate Range(ml/min) |
DPP-F6-3L | F6-3L | Servo Motor | DZ25-3L | 15#,24#,35#,36# | 1~600 | 2.11~3600 |
DPP-F6-6L | F6-6L | DZ25-6L | 15#,24#,35#,36# | 3~6000 | ||
DPP-F6-12L | F6-12L | YZ35 | 26#,73#,82# | 6.9~12000 |
Drive Technical Parameters
Drive | F6-3L | F6-6L | F6-12L | |
Flow rate range | 2.11-3600ml/min | 3-6000ml/min | 0.0069-12ml/min | |
Speed range | 0.1-600rpm | |||
Speed resolution | 0.01 rpm/min | |||
Flow rate accuracy | <±0.5% | |||
Outlet pressure | 0.3Mpa | |||
Motor type | Servo motor | |||
Circuit system | F-CIR | |||
Control system | F-EMB | |||
Control method | Touch screen and membrane keypad | |||
Display | LCD screen | |||
External control speed signal | 0-5V(standard),0-10V,4-20mA(optional) | |||
Start/stop, direction singal | Passive switch signal, such as foot pedal switch Active switch signal: 5V, 12V and 24V for option | |||
Communication interface | RS232(standard), N232 communication protocol;RS485(optional) MODBUS protocol (RTU mode) | |||
Ambinettemperature | 0-40℃ | |||
Relative humidity | <80% | |||
IP rate | IP31 | |||
Power supply | 220V/110V±10%, 50Hz/60Hz | |||
Consumption | <80W | <180W | <300W | |
Drive external size (L×W×H)mm | 223×152×200 | 283×192×218 | 302×222×275 | |
