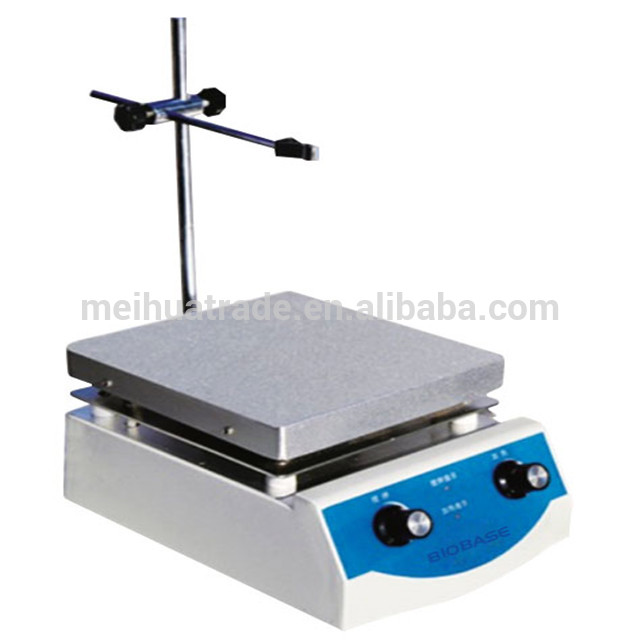

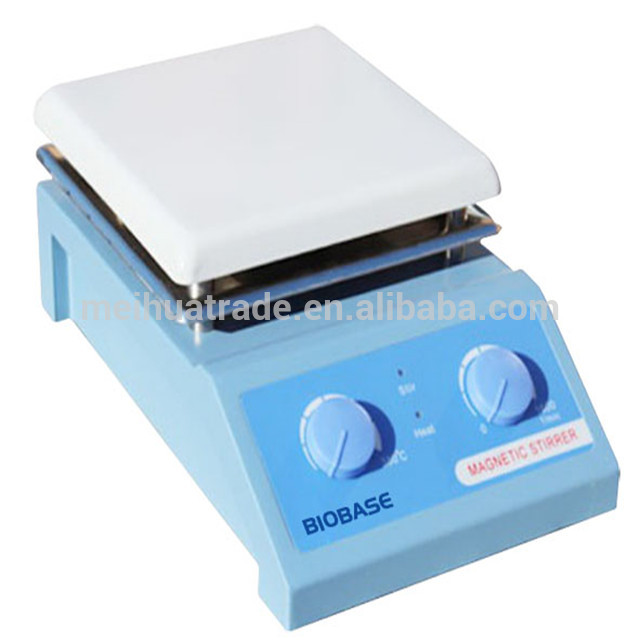

Laboratory Industrial Liquid Heating Small Capacity Magnetic Stirrer with Hotplate
Hotplate magnetic stirrer is used when liquid heating is needed in industry, agriculture, health and medicine, scientific research and college labs etc.
Model | MS7-H550-Pro | MS7-H550-S | MS-H-Pro+ | MS-H-Prot | MS-H-S | MS-H280-Pro |
Work Plate Size | 184x184mm | 135mm | ||||
Work Plate Material | Glass ceramic | Stainless steel with ceramic coated | ||||
Max. Stirring Capacity | 20L | 10L | 20L | 3L | ||
Motor Type | Brushless DC motor | Shaded pole motor | Brushless DC motor | DC motor | Brushless DC motor | |
Motor Input | 18W | 15W | 18W | 5W | ||
Motor Output | 10W | 1.5W | 10W | 3W | ||
Speed Range | 100~1500rpm | 0~1500 rpm | 100~1500rpm | 0~1500rpm | 100~1500rpm | |
Speed Display | LCD | Scale | LCD | Scale | LED | |
Speed Display Accuracy | ±1rpm | / | ±1rpm | / | ||
Heating Output | 1000W | 500W | ||||
Heating Temp. Range | RT-550℃, increment 1 | RT-550℃, increment 5 | RT-340℃, increment 1 | RT~340℃ | RT-280℃, increment 1 | |
Control Temp. Precision | ±1(<100℃) ±1%(>100℃) | ±10℃ | ±1(<100℃), ±1%(>100℃) | / | ±1(<100℃) ±1%(>100℃) | |
Max Temp. | 580℃ | 360℃ | 350℃ | 320℃ | ||
Temp. Display | LCD | LED | LCD | Scale | LED | |
Display Temp. Accuracy | ±0.1℃ | ±1℃ | ±0.1℃ | / | ±1℃ | |
External Temp. Sensor | Optional PT1000 | / | Optional PT1000 | |||
Max. Stirrer Bar Length | 80mm | 50mm | ||||
Interface | RS232 | / | RS232 | / | / | |
Protection Type | IP21 | IP42 | IP21 | |||
Ambient Temp. | 5-40℃ | |||||
Relative Humidity | 80% | |||||
Power Consumption | 1050W | 1030W | 550W | 530W | 515W | |
Power Supply | AC110/220W±10%, 50/60Hz | |||||
External Size(W*D*H) | 215*360*112mm | 160*280*85mm | 150*260*80mm | |||
Package Size(W*D*H) | 280*420*200mm | 210*345*160mm | 225*290*190mm | |||
Gross Weight | 6.5kg | 3.5kg | 2.5kg | |||
Certification
