Product Information

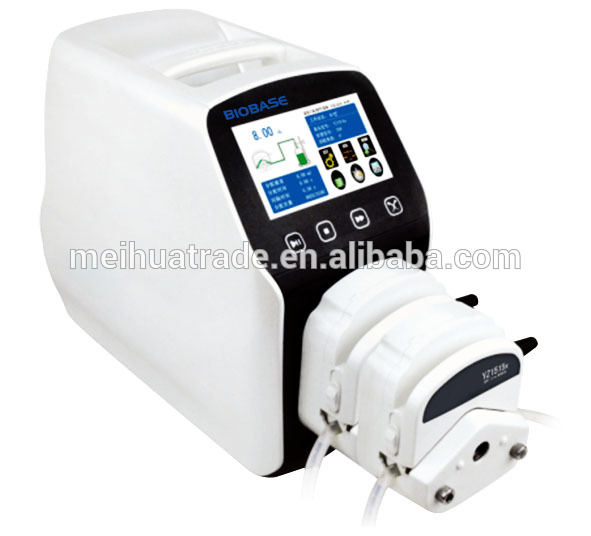

Intelligent Calibration Liquid Filling Dispensing Peristaltic Pump
Parameters
Intelligent Calibration Liquid Filling Dispensing Peristaltic Pump
Dispensing Peristaltic Pump
| Pump Head&Flow Rates(ml/min) | |||||||||
YZ1515x | YZ2515x | MC1~MC12(10) | MC1~MC12(6) | DZ25-3L | SN25 | SN15-14 | SN15-16 | |||
Model |
Drive&Speed Tubing | 13#,14#,19#, 16#, 25#,17#, 18# | 15#,24# | ID:0.13~3.17mm Wall Thickness:0.86~1mm | 15#, 24#,35#, 36# | 24# | 14# | 16# | ||
DPP-LabF1 | LabF1 | 1-150rpm | 0.07 ~570 | 1.7 ~435 | 0.000067 ~32(suggest working rotating speed less than 150rpm) | 0.00008 ~45(suggest working rotating speed less than 150rpm) | 2.11 ~900 | 25 ~375 | 0.2 ~36 | 0.8 ~132 |
DPP-LabF3 | LabF3 | 1-350rpm | 0.07 ~1330 | 1.7 ~1035 | 2.11 ~2100 | 2.5 ~875 | 0.2 ~84 | 0.8 ~308 | ||
DPP-LabF6 | LabF6 | 1-600rpm | 0.07 ~2280 | 1.7 ~1740 | 2.11 ~3600 | 2.5 ~1500 | 0.2 ~144 | 0.8 ~528 | ||

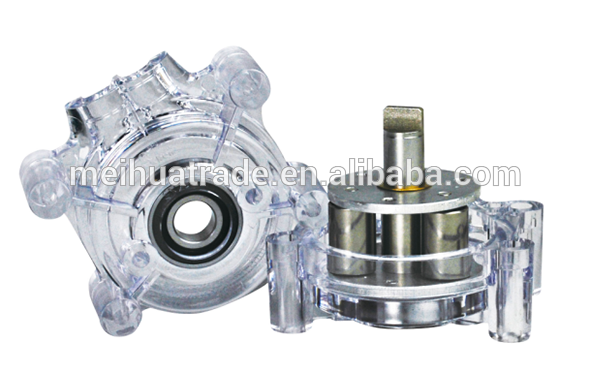

Pump head
Product Composition and Flow Rate
Drive | LabF1/F1 | LabF3/F3 | LabF6/F6 |
Flow rate range | 0.00067-570mL/min | 0.00067-2100mL/min | 0.00067-360mL/min |
Speed range | 0.1-600rpm | ||
Speed resolution | 0.01 rpm | ||
Flow rate accuracy | <±0.5% | ||
Motor type | Stepper motor | ||
Circuit system | DPP-LabF series: LabF-CIR;DPP-F series: F-CIR | ||
Control system | DPP-LabF series: LabF-EMB;DPP-F series: F-EMB | ||
Control method | Touch screen and membrane keypad | ||
Display | LCD screen | ||
External control speed signal | 0-5V(standard),0-10V,4-20mA(optional) | ||
Start/stop,direction singal | Passive switch signal, such as foot pedal switch; Active switch signal: 5V, 12V | ||
Ambienttemperature | 0-40℃ | ||
Relative humidity | <80% | ||
IP rate | IP31 | ||
Power supply | 220V/110V±10%, 50Hz/60Hz | ||
Consumption | <50W | ||
Drive external size (L×W×H)mm | DPP-LabF series: 216.4×157.3×230.7 DPP-F series: 213×152×235 | ||
Features
Intelligent Calibration Liquid Filling Dispensing Peristaltic Pump
1.4.3 inch color LCD display, touch screen control, dynamic display working status, flow volume and motor speed,etc.
2. Stepper motor drive, control precisely.
3. F-CIR circuit system all use imported chips, computing fast, reliable performance, working stable.
4. F-EMB operation system, embedded software design, powerful function, friendly interface, attention to users’ experience.
5. Intelligent calibration function, ensure the flow rate accuracy.Suitable for high precision liquid filling.
6. The dispensing total number counting function, need to clear the numbers by manual. This is convenient for counting dispensing numbers when manual dispensing.
7. Online micro adjusting function: adjust the flow rate without stop the pump.
8.The pump can store 60 commonly used filling modes, save users setting time.
9. Back suction angle setting, avoid liquid drop off when the pump stop working.
10.External control start/stop function, it can connect with foot pedal switch, also can be unified controlled by the host computer when working in filling line.
11.Automatic temperature control system, reducing the fan noise effectively.
12.Load-shedding memory function, store the running parameters in time, safe and reliable.
13.Fast filling function, not only can be used for washing the tubing, but also can fill liquid to the tubing fast.
14.Strong anti-jamming feature, wide voltage design, suitable for complex power supply environment.
15. Circuit board spray with three paint, anti-dust, anti-moisture, anti-static, resist corrosion.
16. ABS engineering plastic housing, resist corrosion, no rust .
