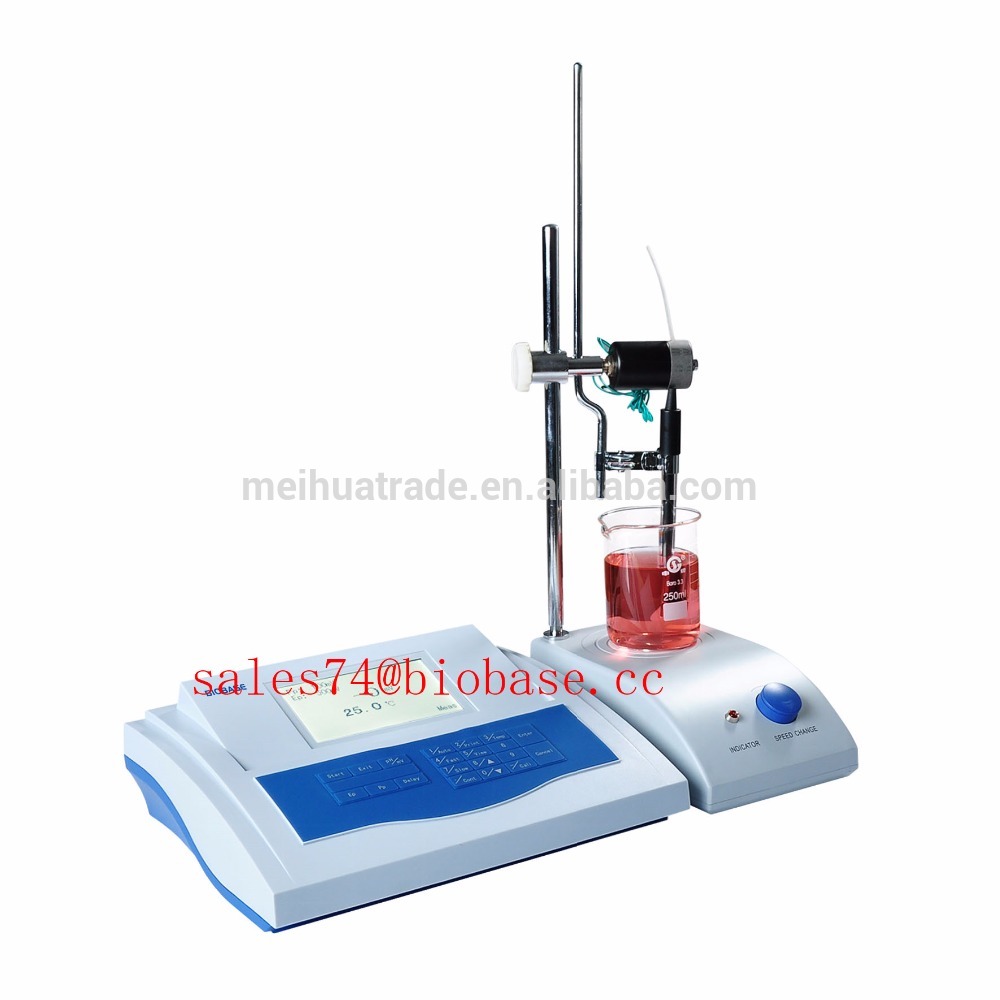

2016 hot sale BIOBASE High stability ZDJ-4A Automatic potential titrator
Features of BT-5 Automatic Potential Titrator:
1. Large LCD touch screen.
2. Potential titration ,conductivity titration and constant titration can be achieved through different unit combination
3. Prestore with preselected endpoint titration, blank titration or manual titration function and other automatically generate specific titration mode can be programmable.
Technical Parameters of BT-5 Automatic Potential Titrator:
Model Specifications | BT-5 | ||
MeasuringUnit | Potential (standard) | Measuringrange | ±1999.0 mV,0~14.00 pH |
Resolution | 0.1mV,0.01pH | ||
Accuracy | ±0.03%FS,±0.01pH±1 bit | ||
Constant (optional) | Measuring range | 0~199.9 μA,0~19.99 μA, 0~1.999 μA,0~0.199 μA | |
Polarization voltage | 30mV,50mV,100mV | ||
Accuracy | Control titration sensitive:±5%FS; Polarized current inspection error:±2.5%FS | ||
Conductivity (optional) | Measuring range | 0.000μS/cm~199.9mS/cm | |
Resolution | 0.001μS/cm | ||
Accuracy | ±1.0%FS | ||
Temperature
| Measuring range | -5.0~105.0 ℃ | |
Resolution | 0.1℃ | ||
Accuracy | ±0.3℃±1 bit | ||
Titration System | Repetitivity of titration analysis | 0.2% | |
Titration volume accuracy | 10ml burette: ±0.025ml; 20ml burette: ±0.035ml | ||
Burette resolution | 10ml burette: 1/10000; 20ml burette: 2/10000 | ||
Burettesupplementary speed | 50±10s(when burette is full scale) | ||
Control device | Large LCDtouchscreen,Computer software controller | ||
Stability | ±0.3mV±1 bit/3h | ||
Stirring system | PWM technology(adjust by software, low noise) | ||
Output interface | RS232(bi-directional) | ||
Power supply | AC110V/ 220V±10%, 50/60HZ | ||
External size(W*D*H) | 360*300*300mm | ||
Package size(W*D*H) | 510*410*490mm | ||
Gross Weight | 13kg | ||
