Dry Heat Sterilization Equipments Type Hot air oven hot air circulating drying oven
introduction of hot air circulating drying oven
More choices! Models with larger inner space are also avalaible. BOV-D45 , BOV-D65,BOV-D125 and BOV-D230 ! Choose the one that meets your need best! Please refer to the technical parameters for more specific information.
1. Exterior material: Cold-rolled steel with electrostatic coating.
2. Stainless steel inner chamber;
3. PID micro-computer intelligent temperature controller, over-temperature protection; LED display;
4. Double-layer glass observation window, adjustable airtight buckle lock.
E Function type has the following feature other than the above function:
1. Adjustable speed fan
2. Large LCD display screen shows the multiple data; has timing function and over temperature protection.
3. Independent temperature limit alarm system.; Auto alarm for heating suspend.
4. Optional RS-485 interface for software connection.
Parameter of hot air circulating drying oven
Model | BOV-D30CII BOV-D30E | BOV-D45 BOV-D45E | BOV-D65 BOV-D65E | BOV-D125 BOV-D125E |
BOV-D230E |
Voltage | 220V/50Hz | ||||
Tem. Range (℃) | Incubator:RT+5~80℃;Drying Oven:80~250℃ | ||||
Tem. Motion(℃) | A:±0.5℃ B:±1℃ | ||||
Tem. Resolution Ration(℃) | 0.1℃ | ||||
Environment tem. | 5-35℃ | ||||
Power as Drying Oven(w) | 800 | 1200 | 1600 | 2300 | 3000 |
Power as Incubator(w) | 300 | 300 | 400 | 600 |
700 |
Inner Chamber Size (mm) | 310×310×310 | 350×350×350 | 400×360×450 | 500×450×550 | 600×500×750 |
Exterior Size (mm) | 450×490×685 | 490×530×735 | 540×540×830 | 640×630×930 | 730×670×1220 |
Packing Size (mm) | 600×540×830 | 660×590×870 | 670×640×970 | 760×750×1070 | 900×800×1350 |
Load per rack (Kg) | 15/kg2 pcs for standard configuration | ||||
N.W. (Kg) | 39 | 42 | 47 | 56 | 70 |
G.W. (Kg) | 51 | 56 | 60 | 71 | 115 |
Hot Selling:
Biosafety Cabinet:
Laminar Flow Cabinet:
Fume Hood:
Autoclave:

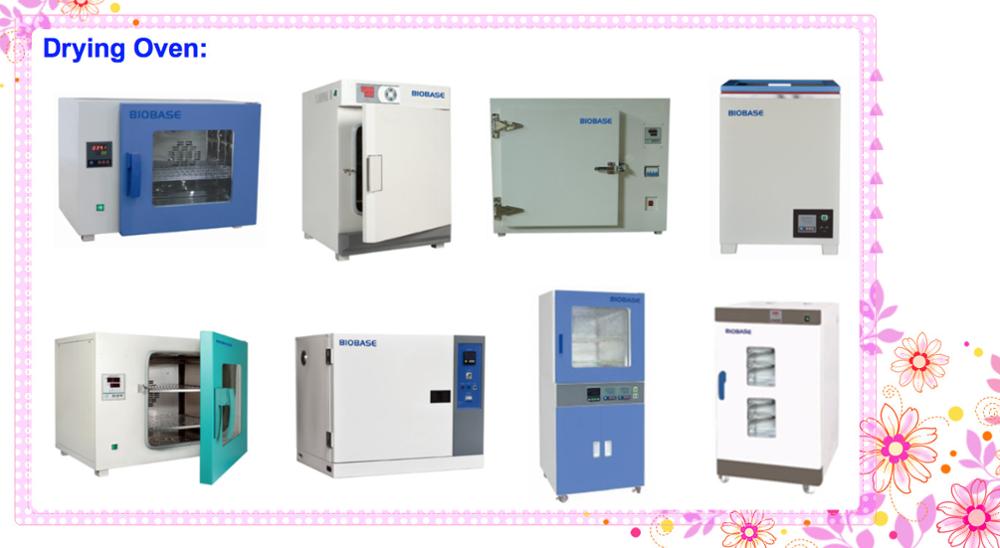

Drying Oven:
Incubator:
Zhangqiu Meihua International Trading Co.,Ltd is the subsidiary of BIOBASE group. BIOBASE,
established in 1999,has been through high and stable development for 15 years,is now with revenues of one hundred million,1200employees in China and abroad offices.The products wemanufacture extend
to most of the laboratory items andscientific analytical equipment,covering biological safety
cabinets,laminar flow cabinets,fume hoods,incubators,autoclaves,biochemistry analyzers,
ELISA microplate processorsdrying ovens,centrifuges,microscopes,biochemical reagents, etc.Our mission is to enable our customers to make the world healthier,cleanerand safer.
BIOBASE group invests in science and technology researches,aims to keep improving products
performance and quality as well as develops new products to meet customers"wide requirement.We satisfy our customers by offering comprehensive support,purchase convenience and we are ready to
serve more and more BIOBASE users.
BIOBASE group,serving global distributors and its loyal end users,is becoming one of the most
important scientific services suppliers.
