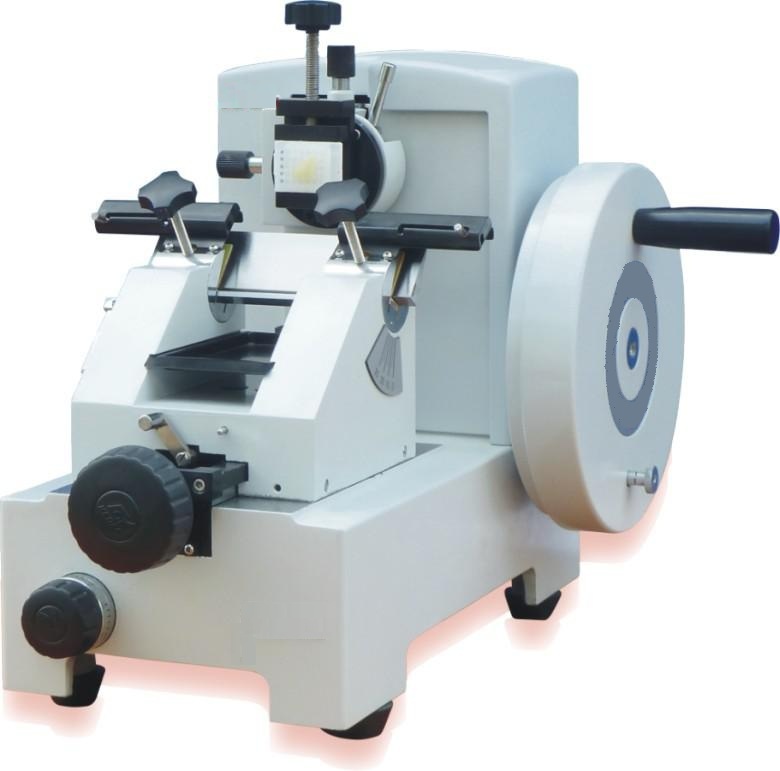

Click on the image to view the original image

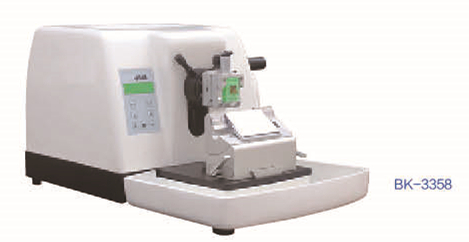

CE Marked BK-3358 China low price sliding semi-automatic rotary microtome for sale
Features of sliding semi-automatic rotary microtome
Automatic return of specimen
Auto exchange between section and trimming mode
Imported cross-roller guide rails and a screw motion mechanism
ectioning and trimming are completed through the control system
Hand wheel balance can be locked at any position to assure user"s safety
Universal cassette clamp and standard specimen clamp; Emergency stop systems
Advanced driving systems, functions of section, trimming, fast forward, backward etc
LCD screen shows section and trimming thickness range, numbers of section and trimming
Easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp);
Equipped with a safety alert system, drive-overload protection mechanism and an automatic standby protection mechanism;
The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables the easy changing of the blade;
Blade holder can be laterally moved to avoid moving the blade with direct contact, thereby utilizing the entire length of blade (three different segments);
Parameters of sliding semi-automatic rotary microtome
Model | BK-3358 |
Section Thickness Setting Range | 0 - 60μm |
Trimming Thickness Setting Range | 0 - 100μm |
Section Thickness Range | 0 - 1μm increment 0.25μm 1 - 10μm increment 1μm 10 - 20μm increment 2μm 20 - 60μm increment 5μm |
Trimming Thickness Range | 0.25~60μm |
Minimum Setting Value | 0.25μm |
Horizontal Specimen Feed | 26mm |
Horizontal Specimen Feed | 52mm |
Specimen Clamp Rotation | Any angle within 360 degrees |
Specimen Orientation | XY – 8° |
Minimum Setting of Sectioning Thickness | 0.25μm |
Maximum Specimen Size | 50 * 50mm |
Precision Error: | ±1% |
Power Supply | AC220V±10%, 50/60HZ; AC110V±10%, 50/60HZ |
Consumption | 150W |
External Size | 520*430*330mm |
Package Size | 670*550*480 |
G.W | 48kg |
Standard Accessories of sliding semi-automatic rotary microtome
Standard specimen clamp, Disposable blade holder, Disposable microtomeblade(10pc), Waste tray
