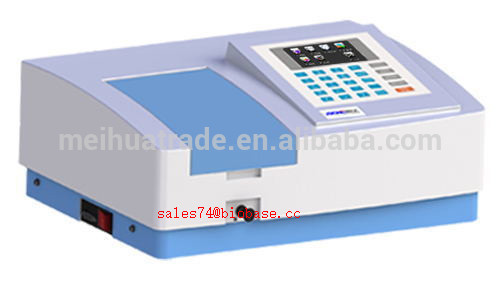

BIOBASE Scanning UV/VIS Spectrophotometer with PC analysis software
Features:
Imported & Environmental Deuterium lamp, preventing from Ozone inhalation
High-class grating with wholly hermetic light path design, ensures the instrument has the super low stray light
Socket-Type Deuterium lamp and Tungsten lamp
GLP self-check function:check the wavelength accuracy and Photometry accuracy, provide test report and power-off protection
Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically
Si02 coating optical mirror, reduces the influence from outside
Basic Fuctions:
1. Photometry
Test Abs., Transmittance by fixed wavelength
2. Quantitative
a. C Mode: EstablishC=K*A curve, test sample concentration
b. F Mode: Establish A=K1*C+K0, test sample concentration
c. Display and save curve, test data (V-1200,UV-1200).
Model | BK-S360 | BK-S380 | BK-S390 |
Optical System | Single Beam, Grating1200 lines/mm | ||
Wavelength Range | 190-1100nm | ||
Spectral Bandwidth | 1.8nm | 1nm | 0.5,1,2,4,5nm |
Wavelength Accuracy | ± 0.3nm | ||
Wavelength Repeatability | ≤0.2nm | ||
Photometric Accuracy | ± 0.002A (0-0.5Abs), ± 0.004A (0.5-1.0Abs), ± 0.3% T (0-100% T) | ||
Photometric Repeatability | 0.001Abs (0-0.5Abs), 0.002Abs (0.5-1.0Abs),≤0.1% T (0-100% T) | ||
Stray Light | ≤0.04% T @ 360nm; 220nm | ||
Stability | ± 0.001A / h @ 500nm | ||
Baseline Flatness | ± 0.0015A | ||
Noise | ± 0.0004Abs | ||
Display | 65 thousand true color 7 inch TFT LCD(480 *800) | ||
Photometric Mode | T, A, C, E | ||
Photometric Range | 0-200% T,-0.301~3.0A | ||
Detector | Silicon Photodiode | ||
Light Source | Deuterium Lamp, Tungsten Lamp | ||
Input | Membrane Keypad | ||
Output | USB Print and data output,Connect PC | ||
Standard Accesseries | 10mm glass cuvette *4 units 10mm quartz cuvette *2 units | ||
Power Supply | 110V/220±10% ,60/50Hz | ||
Packing Size(mm) | 740*570*440 | ||
Gross Weight(kg) | 25 | ||
