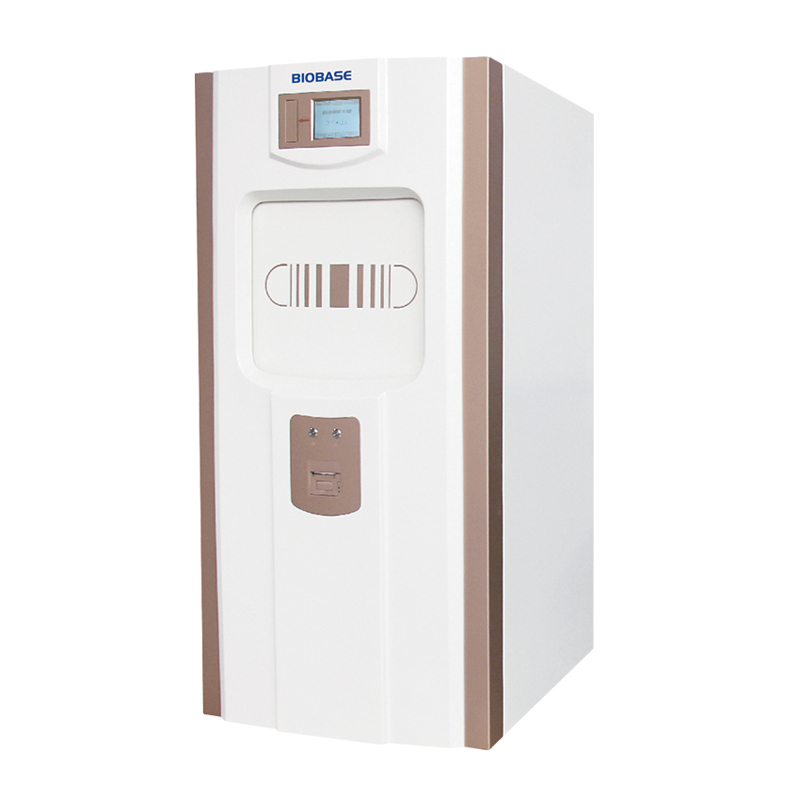

Medical H2O2 Low Temperature Plasma Sterilizer BKQ-PS100X
Features of Plasma Sterilizer:
The sterilizer is applicable to sterilize the medical instruments that are thermo labile or nonmoisture tight.
It is not applicable to the sterilization of liquid, powder or cotton fabrics. All the medical instruments that
meet the following conditions can be processed by this type of sterilizer.
BKQ-PS100:
Medical tubular instrument: inner diameter≥1mm, length≤500mm
Nonmetal tubular instrument: inner diameter ≥1mm, length≤2000mm
BKQ-PS200
Medical tubular instrument: inner diameter≥0.8mm, length≤300mm
Nonmetal tubular instrument: inner diameter ≥1mm, length≤1000mm
Techincal Parameters of Plasma Sterilizer:

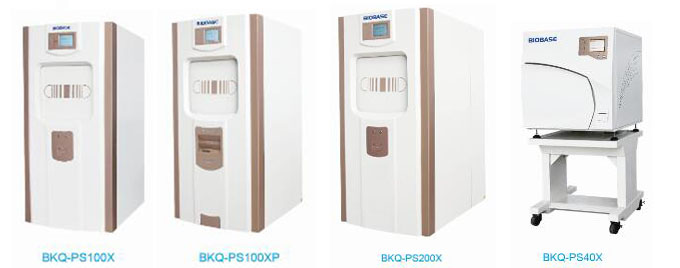

Model | BKQ-PS40 | BKQ-PS100X | BKQ-100XP | BKQ-PS200X | BKQ-200XP |
Volume | 64L | 135L | 225L | ||
Chamber size (L*W*H)mm | 650*380*260 | 750*450*400 | 1250*450*400 | ||
Power consumption | 3.5Kw | 3.8Kw | 4.7Kw | ||
Power supply | 220V,50Hz | 380V, 50Hz | 380V, 50Hz | ||
External size (L*W*H)mm | 850*725*750 | 990*760*1600 | 1460*760*1600 | ||
Package Size (L*W*H)mm | 1110*984*1068 | 1250*1019*1918 | 1720*1019*1918 | ||
Gross Weight | 240 Kg | 460 Kg | 580Kg | ||
USB flash disk storage
Timely sterilizing information storage to guarantee all data can be safely stored and traced during the sterilizer
service life. This accessory can also be updated to traceability system.
Integrated biological incubator
The biological incubator will timely display temperature and incubate time. It equipped with independent control
system that could work in case of the sterilizer switched off.
Foot switch
Simply kick the switch to open or close the door.
Alloy storage rack
The alloy storage rack realizes that sterilized articles can be separately stored.
Metallic sterilizing container
To improve sterilizing result, we provide various sterilizing container for different kinds of instruments and
operation kits.
Auto elevating trolley
The trolley equipped with auto elevating platform, chargeable lithium battery. The convenient memory function
could record three positions.
Trolley size: 1150*780*1165mm (for BKQ-PS100); 1650*780*1165mm (for BKQ-PS200).
BIOBASE GROUP
Established in 1999
1200 employees in China and abroad offices.
Packaging Details:
Mainly packed by Carton box or other common security package, you also can give us your special requirments about it. We will try our best to make sure the goods arrive safely.
Delivery Detail:
Shipped in 10 days after payment confirmed.
