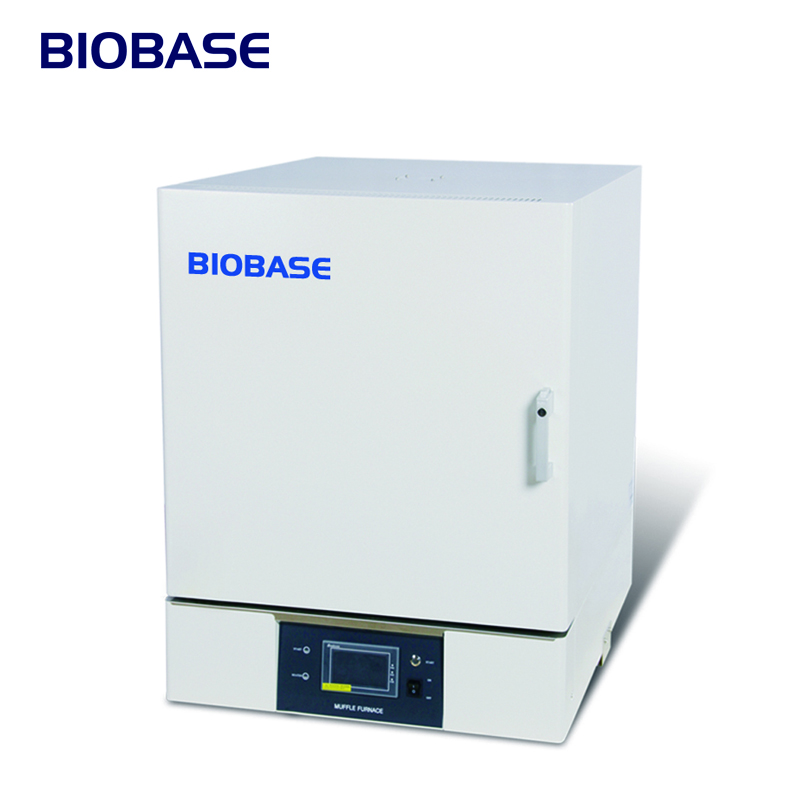

High Temperature Pid Micro Digital Screen Controller Ceramic Fiber Muffle Furnace Cheap
1. Imported high density ceramic fiber.
2. PID two digital screen controller or programmable controller as requirement.
3. Controller has the function of timing and over-temperature protection.
4. Dual Ceramic Inner Chamber, hollow heat insulation and good ventilation
ensure that outer shell is not hot and the inner shell can cool down quickly
5. Equipped cooling fun ensure the cooling rate up to 5℃/min
Note:3~5 is only for SX4 series
Model | MC2.5-12 | MC5-12 | MC10-12 |
Rated Temp.(℃) | 1200 | ||
Temp. Rising Time (Empty/min) | 20 | ||
Temp. Accuracy(℃) | ±1 | ||
Timing(min) | 0~9999 | ||
Consumption(KW) | 2.5 | 5 | 10 |
Power Supply(V) | AC220V±10%,50/60Hz | 380V/50HZ 380V/60HZ | |
Internal Size(W*D*H)mm | 200*120*80 | 300*200*120 | 400*250*160 |
External Size(W*D*H)mm | 580*412*570 | 680*522*650 | 780*584*700 |
Package Size(W*D*H)mm | 630*455*630 | 730*565*710 | 820*625*760 |
Gross Weight(Kg) | 45 | 60 | 98 |
