500ml, 1L, 2L, 5L, 10L, 20L, 50L Explosion-proof rotary vacuum evaporator With Water Bath factory price

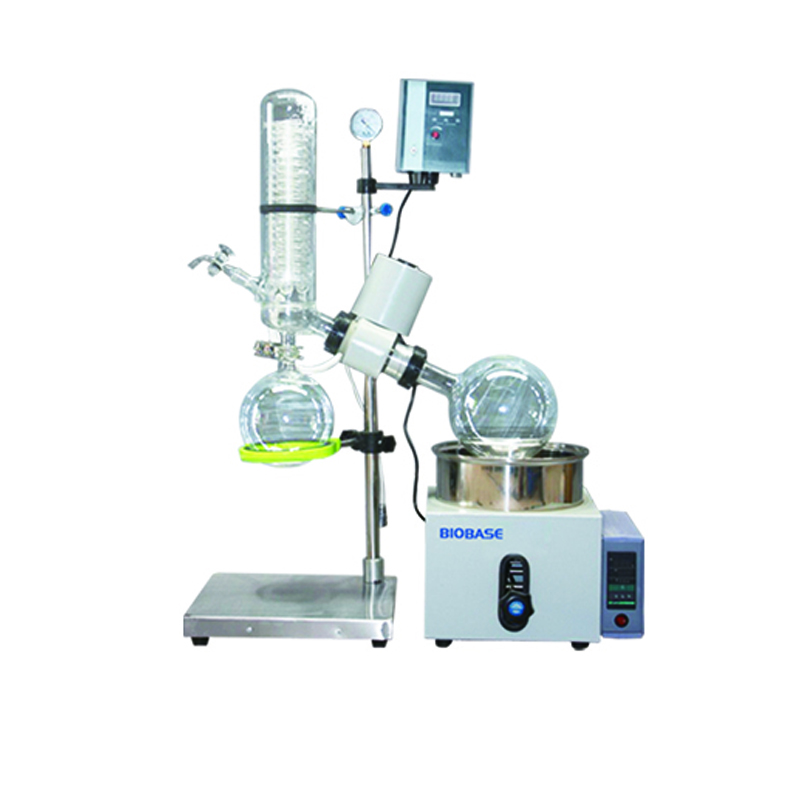

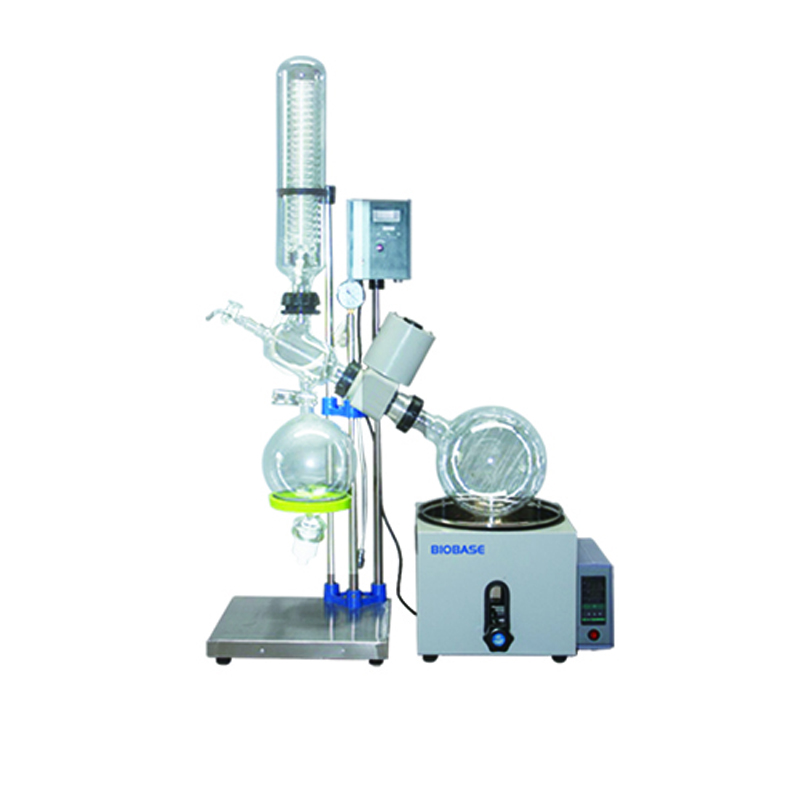

Introduction of rotary vacuum evaporator
Product features:
1.Explosion-proof motor.
2.Ex-frequency inverter.
3.Ex-auto temperature controller.
4. QH/HA01-2005 standard.
5. Anti-corrosive PTFE sealing with good performance.
6.Stepless speed controller.
7.LED display.
8.Stainless steel and aluminium alloy structure
9.Auto-lifting bath is optional
Parameter of rotary vacuum evaporator
Model | ExRE-1002 | ExRE-2002 | ExRE-5003 |
Rotary Bottle | 10 L( flange φ95) | 20L (flange φ95) | 50L (flange φ125) |
Collecting Bottle | 5L ( flange φ50) | 10L (flange φ60) | 20L (flange φ60) |
Condenser | Vertical three backflow, φ120*640mm(main), φ135*470mm(SUB) | Vertical three backflow, φ130*680mm(main), φ160*530mm(SUB) | Vertical three backflow, φ160*840mm(main), φ160*530mm(SUB) |
Charging Valve | 34#(standard size) | 40#(standard size) | |
Rotating Speed | 0-110 rpm | ||
Vacuum | -0.098 Mpa | ||
Temperature control range | 0-400℃ | ||
Temperature control accuracy | ±1℃ | ||
Rotating power | 120 W | 120 W | 180 W |
Heating power | 3 KW | 5 KW | 7 /8KW |
Power supply | 220/50 V/Hz | 220/50 V/Hz | 220/50or380/50 V/Hz |
External size(W*D*H) | 1050*580*1950 mm | 1100*600*2100 mm | 1300*720*2300 mm |
Packing size | 1350*350*400 mm 1280*570*660 mm
| 1370*700*680 mm 700*680*740 mm
| 1450*390*440 mm 1150*840*660 mm 790*730*790 mm
|
Packing Weight | 100 Kg | 123 Kg | 170 Kg |
Standard Accessory | 10Lrotary bottle*1, 5Lcollecting bottle *1, Explosion-proof transducer, Explosion-proof motor EX120W | 20Lrotary bottle*1, 10Lcollecting bottle *1, Explosion-proof transducer, Explosion-proof motor EX120W | 50Lrotary bottle*1, 20Lcollectingbottle *1, Explosionproof transducer, Explosion-proof motor EX120W |
Optional Accessory | Double collection bottle,Auto-lifting, Vacuum pump, Recirculating chiller | ||
