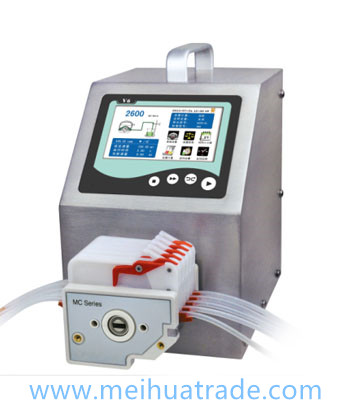

High Quality Flow Rate FPP-V6 Series with 4.3 Inch Color LCD Screen Peristaltic Pump

Click on the image to view the original image

Product：	views：3High Quality Flow Rate FPP-V6 Series with 4.3 Inch Color LCD Screen Peristaltic Pump
Branch：	BIOBASE
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:43

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: BIOBASE

Model Number:: FPP-V6-3L

Structure:: Other

Usage:: Water

Application:: Other

Power:: Electric

Fuel:: Other

Pressure:: Low Pressure

Speed range:: 0.1-600rpm

Speed resolution:: 0.01 rpm

Flow rate accuracy:: <±0.5%

Bac suction:: 0-360℃

Outlet pressure:: 0.3Mpa

Control method:: Touch screen amd membrance keypad

External control speed:: 0-5V, 0-10V, 4-20mA

Communication interface:: RS232, RS485 support MODBUS protocol (RTU mode)

Output interface:: Output motor working status ( Open-Collector output)

Name:: Peristaltic Pump

Standard or Nonstandard:: Standard

Theory:: Other

Supply Ability

Supply Ability:: 500 Unit/Units per Month Peristaltic Pump

Packaging & Delivery

Packaging Details: Wooden Box

Port: QingDao Port, Shandong

Lead Time:: Shipped in 15 days after payment

Product Description

High Quality Flow Rate Peristaltic Pump

Features -- High Quality Flow Rate Peristaltic Pump FPP-V6 Series with 4.3 Inch Color LCD Screen

1.4.3 inch color LCD display, touch screen control, dynamic display working status, flow volume and motor speed,etc.

2.Servo motor drive, precise control,

3.V-CIR circuit system, use imported chips, computing speed fast, reliable performance, working stable.
4.V-EMB operation system, embedded software design, powerful function, friendly interface, attention to users’ experience.
5.Intelligent calibration function, ensure the flow rate accuracy. Suitable for high precision transferring liquid.
6.Fixed volume measurement function.

7.Fixed time and volume.

8.Timing start and stop function.

9.Plenty external control function, besides start/stop, direction, speed control, RS485/RS232 communication interface, has V-EMB-PGM programmable external control function.

10.Online micro adjusting function: adjust the flow rate without stop the pump.

11.Unique accurate angle control technology, achieve high accuracy dispensing and dosing.
12.Fast filling function, not only can be used for washing the tubing, but also can fill liquid to the tubing fast.
13.Automatic temperature control system, reducing the fan noise effectively.
14.Load-shedding memory function, store the running parameters in time.
15.Strong anti-jamming feature, wide voltage design, suitable for complex power supply environment.
16.Circuit board spray with three paint, anti-dust, anti-moisture, anti-static, resist corrosion.
17.304 stainless steel housing with seamless welding technology, avoid accidental spilled liquid on the housing infiltrate inside, to protect the inside circuit board.
18.DZ25-3L,DZ25-6L,YZ35 pump head, aluminum alloy material, 304 stainless steel rollers, strong rigidity, high accuracy, reliable performance.

Technical Parameters -- High Quality Flow Rate Peristaltic Pump FPP-V6 Series with 4.3 Inch Color LCD Screen

Model	FPP-V6-3L					FPP-V6-6L				FPP-V6-12L
Drive	V6-3L					V6-6L				V6-12L
Pump Head	DZ25-3L					DZ25-6L				YZ35
Tubing	15#	24#	35#	36#		15#	24#	35#	36#	73#	82#
Flow Rate (mL/min)	0.211-900	0.385-1800	0.508-3000	0.6-3600		0.3-1800	0.55-3300	0.8-4800	1.0-6000	1.23-7400	2.0-12000
Flow rate range	0.211-3600mL/min					0.3-6000mL/min				1.23-12000mL/min
Speed range	0.1-600 rpm, reversible
Speed precision	0.01 rpm
Flow rate precision	0.01mL
Accuracy	<±0.5%
Back suction angle	0-360°
Output pressure	0.3Mpa
Control method	Touch screen and mask keypad
External control speed	0-5V, 0-10V, 4-20mA
External control start/stop and direction	Passive switch signal, such as : foot pedal switch Active switch signal: 5V, 12V, 24V for option.
Communication interface	RS232, RS485 support MODBUS protocol (RTU mode)
Output interface	Output motor working status ( Open-Collector output)
Power supply	AC220V±10%, 50Hz/60Hz ( standard), AC110V±10%, 50Hz/60Hz (optional)
Drive size	223152200mm				283192218mm					302223275mm
Drive weight	5.05kg				7.85kg					13.14kg
Consumption	<80W				<180W					<300W
Working condition	Environment temperature: 0-40℃, Relative humidity: <80%
IP rate	IP31
