FEATURES

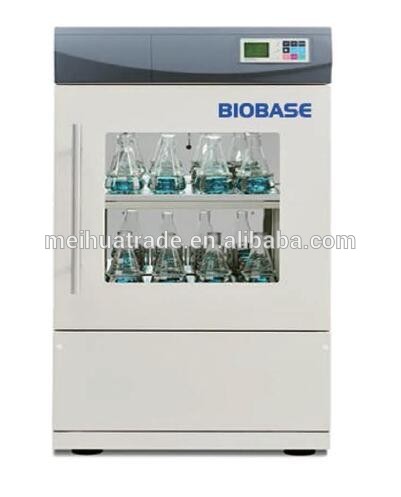

Vertical Type Shaking Incubator (single door & double layer)--Biobase Meihua, the most professional laboratory and medical products supplier.
1. Audio and visual alarm.
2. Power off recovery function.
3. Soft shaking mode, stable and reliable operation.
4. Efficient drive motor and cooling controller, low energy consumption.
5. Transparent window and built-in lighting design convenient for observation samples.
6. Optional accessories: UV lamp, humidity controller, inlet air pipe, light system, etc.
TECHNICAL PARAMETERS
Vertical Type Shaking Incubator (single door & double layer)--Biobase Meihua, the most professional laboratory and medical products supplier.
Model | BJPX-1102C | BJPX-2102C | ||
Controller | PID | |||
Display | LCD | |||
CirculationMode | Forced convection | |||
ShakingMode | Rotaryshaking | |||
Drive Mode | Unishaft drive | |||
Rotating Speed | 40~300rpm | |||
RotatingAccuracy | ±1rpm | |||
Vibration Range | Φ25mm | |||
Temp. Range | RT+5℃~60℃ | 4℃~ 60℃ | ||
Temp.Accuracy | ±0.1℃ | |||
Temp. Uniformity | ±1℃ | |||
Timing Range | 0~500 hours | |||
Shaking Plate Size | 500*350mm | |||
Shaking Plate Quantity | 2 pcs | |||
Max. Capacity | 1000ml*12or 500ml*24 or 250ml*30 or100ml*48 or50ml*48 | |||
StandardCapacity | 500ml*12,250ml*15 | |||
Internal Material | Stainless steel | |||
External Material | Cold-rolled steel with anti-bacteria power coating | |||
Refrigerant | / | CFC-Free 134A | ||
Cooling Consumption | / | 200W | ||
Heating Consumption | 500W | |||
SafetyFunction | Audio and visual alarm for over-temperature; Alarm for over-speeds; Independent over-temperature protector; Shutdown protection for door opening; Leakage or over-current protection. | |||
Consumption | 600W | 830W | ||
Power Supply | AC110V/220V±10%,50/60HZ | |||
External Size(W*D*H)(mm) | 700*600*1250 | |||
Peckage Size(W*D*H)(mm) | 800*700*1400 | |||
Gross Weight(kg) | 200 | 235 | ||
