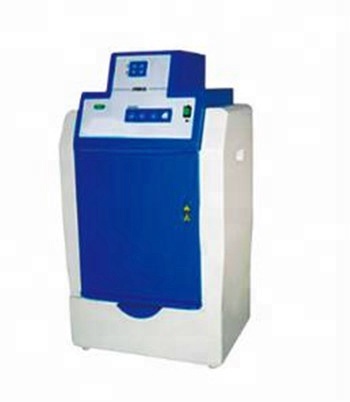

High Quality Laboratory Equipment Gel Document Imaging System
Features
1.CCD with lower lux and high-resolution.
2.Six time zoom lens and simple to enlarge and shrink gel photos.
3.The gel can be placed in the center position by the indicator.
4.Intelligent control box:
*The zoon, focus, aperture, UV light and white light can be controlled through panel key and computer.
*The UV light can shut down when the door is opened and reactivate when the door is shut
*The UV light protection system can shut down the lights with 15 minute delay automatically.
*Drawer-style gel platform.
5. A multi-layer gel-filter effectively filters background noise
Technical Parameters
Model | BK04S-3C | BK04S-3E |
Effective pixels | 1280*1024 | 2560 *1920 |
Pixel density | 10 bit | |
Pixel Size | 5.4*5.4 μm | |
Resolution | 1.4 megapixels | 5.0 megapixels |
Signal to noise Ratio | >=56db | |
Sensitivity | Can detect the double chain DNA of EB staining below 20pg | |
Camera | Low illumination and high resolution digital CCD | |
Zoom lens | F=1:1.2,2/3 inch 6 times zoom lens | |
Filter | 590nm | |
UV light transmission area(W*L) | 250*200mm | |
Visible light transmittance area(W*L) | 250*210mm | |
Transmission UV wavelength | 302nm | |
Reflectance UV wavelength | 254,365mm | |
Transmission UV lamp power | 8W | |
Reflectance UV lamp power | 11W | |
External Size(L*W*H) | 470*405*820mm | |
Package size(L*W*H) | 770*700*1430mm | |
G.W(kg) | 71 | |
