Click on the image to view the original image
- Classification:
- Laboratory Heating Equipments
- Brand Name:
- BIOBASE
- Model Number:
- MX6-16TP
- Place of Origin:
- Shandong, China
- Max. Temp.(℃):
- 1600
- Capacity(L):
- 6
- Temp. Accuracy:
- ±1℃
- Consumption(KW):
- 6
- Power Supply:
- 220/380V±10%, 50/60HZ
- Heating Rate:
- 0-30℃/min
- Rising Time(Empty):
- 30 minutes
- Temp.Uniformity:
- ±6℃
- Heating Element:
- Nickel chromium alloy wire
- Product name:
- Muffle Furnace
- Supply Ability:
- 400 Unit/Units per Month
- Packaging Details
- Carton&WoodenBox
- Port
- QINGDAO,SHANDONG
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Units) 1 - 5 >5 Est. Time(days) 15 To be negotiated

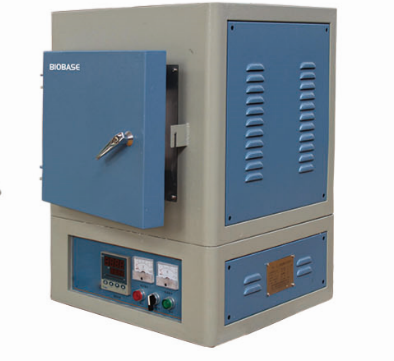

BIOBASE Program Controlling Temperature For Lab Muffle Furnace
Description:
Features:
*Program controlling temperature for TP series.
*Heating wire is set in four sides of the furnace, anti-corrosion,prevent contamination
*Special insulation design, low shell temperature.
*SCR control, PID parameter self-setting;
*Low energy consumption.
*Multiple safety protection design:over-temperature alarm;Power off when over-temperature/over-load.Manual or automatic switch without interference;
Built-in parameter password control function.
Technical Parameters:
Model | MX8-13T/TP | MX10-13T/TP | MX6-16TP | MX11-16TP | MX6-17TP | MX11-17TP | |
Max. Temp.(℃) | 1300 | 1600 | 1700 | ||||
Capacity(L) | 8 | 10 | 6 | 11 | 6 | 11 | |
Temp. Accuracy | ±1℃ | ||||||
Consumption(KW) | 4 | 4 | 6 | 8 | 6 | 8 | |
Power Supply | 110/220/380V±10%, 50/60HZ | 220/380V±10%, 50/60HZ | |||||
Heating Rate | 0-30℃/min | ||||||
Rising Time(Empty) | 30 minutes | ||||||
Temp.Uniformity | ±6℃ | ||||||
Material | External material:Cold rolled steel carbon steel spraying Internal material:Ceramic inner chamber | ||||||
Heating Element | Nickel chromium alloy wire | ||||||
Temp. Control | Intelligent temperature controller | ||||||
Optional | Accessory | Observation hole;Exhaust chimney; Furnace bottom plate; | |||||
Function | Automatically power off once the door is opened;30 programmable periods; | ||||||
Internal Size(W*D*H)mm | 200*300* 120 | 200*300*180 | 150*300* 120 | 200*300*180 | 150*300* 120 | 200*300*180 | |
External Size(W*D*H)mm | 630*650* 730 | 600*640* 850 | 650*750* 1000 | 700*750* 1200 | 650*750* 1000 | 700*750* 1200 | |
Package Size(W*D*H)mm | 710*910*920 | 770*860*990 | 800*900*1150 | 850*900*1350 | 800*900*1150 | 850*900*1350 | |
Gross Weight(Kg) | 70 | 75 | 180 | 220 | 180 | 220 | |
