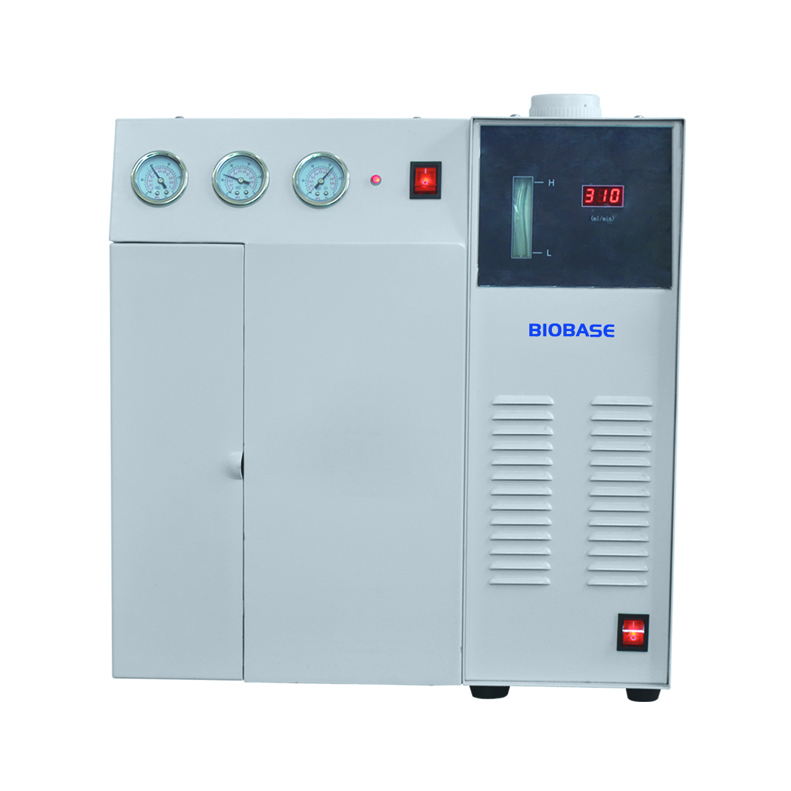

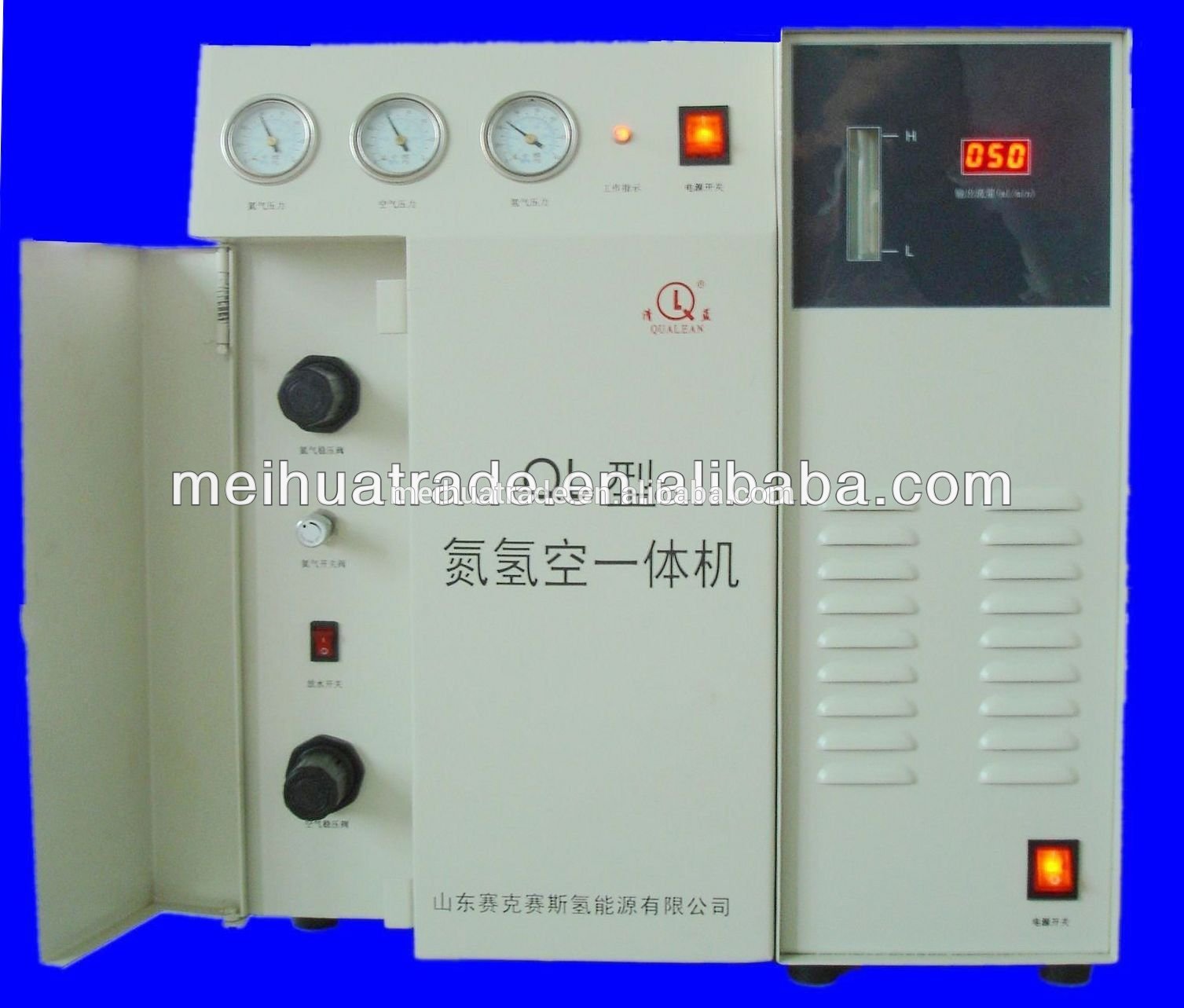

Nitrogen & Hydrogen & Air Generator
product description
Features
1.It can replace traditional high pressure cylinders. N2, H2 and air are generated separately or together, intermittently or continuously. The purity of gas will not decay for long time use.
2.Easy to operate,switching power on to produce gas, regular output flow, completely automatic tracking equipment.
3.Generate nitrogen through world’s leading Pressure Swing Adsorption (PSA) technology, which replaces the traditional electrolyte separation technology.
4. It is safe and convenient to operate, has no corrosion toward instrument and supplies gas for 24 hours.
5.Generate hydrogen through world leading SPE (PEM) technology. No longer need to add lye. Without alkali reversion.
6.It’s powered by whole sealing silent air compressor. After purification, water, oil, dust and impurities are removed. Through pressure stable system, pure and silent air is finally produced under stable pressure.
Technical Parameters
Model | NHA-300 | ||
Gas Type | N2 | H2 | Air |
Output Flow(ml/min) | 0-300 | 0-300 | 0-1000 |
Output Pressure(MPa) | 0-0.4 | ||
Purity(%) | 99.99 | 99.999 | Three-level Purification CO2:0.039% Oil: 0.54ppm |
Power Consumption(W) | <350 | ||
Power Voltage(V) | AC 220/110 50/60Hz | ||
Weight(Kg) | 55 | ||
Dimension(L*W*H)mm | 460*440*460 | ||
company information
BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.
BIOBASE is the only company who has passed NSF40 & EN12469 Certification in China.
Our products include Biosafety Cabinet (Class I/II/III), Laminar Flow Cabinet, Fume Hood, Medical Refrigerator, Freezer, Autoclave, Incubator, Drying Oven, Centrifuge and so on
