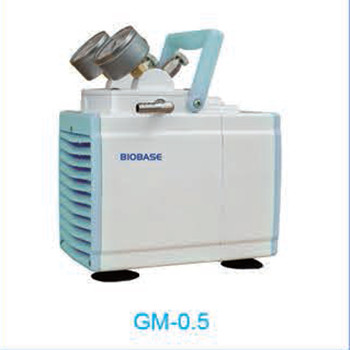

BIOBASE Rotary Slice penis pump enlargement for Lab diaphragm low Vacuum price
FEATURES
* Oil free,clean exhausted air by built- in filter .
* Automatic cooling exhaust system ensures 24 h operation continuously.
* The pressure adjustable design can satisfy a certain range of vacuum and gas velocity.
* orange look for anticorrosive vacuum pump(eg: GM-0.33IIP, GM-0.5P, GM-0.5IIP, GM-1.0P)
TECHNICAL PARAMETERS
Model | GM-0.20 | GM-0.5II | GM-0.5 | GM-0.33II | GM-1.0 |
Pump Head | 1 | 2 | 1 | 1 | 2 |
Speed of Evacuation | 12 L/Min | 30 L/Min | 20 L/Min | 60 L/Min | |
Ultimate pressure | ≥0.075 Mpa | ≥0.095 Mpa | ≥0.08 Mpa | ||
Vacuum | 250 mbar | 50 mbar | 200 mbar | ||
Pressure | ≥30 Psi Positive or negative pressure | Negative pressure | ≥30Positive, Positive or negative pressure | Negative pressure | ≥30Positive, Positive or negative pressure |
Inlet | φ6 mm | ||||
Outlet | φ6 mm | Silencer | φ6 mm | Silencer | φ6 mm |
Working Temp. | 7~40℃ | ||||
Body Temp. | <55℃ | ||||
Noise Level | <60 dB | <50 dB | |||
Motor Power | 75W | 160W | |||
Power consumption | AC110/220V±10%, 50/60Hz | ||||
Diaphragm | NBR | ||||
Valves | / | NBR | |||
Net Weight(kg) | 4 | 10 | 6.6 | 6.2 | 10 |
Gross Weight(kg) | 4.5 | 11 | 7.6 | 7.5 | 11 |
External Size (L*W*H)mm | 195*98*156 | 300*120*235 | 210*160*235 | 215*120*235 | 300*160*235 |
Package Size(L*W*H)mm | 330*210*240 | 314*205*316 | 300*210*310 | 315*200*310 | 380*340*270 |
BIOBASE Worldwide Service:
We have completed the construction of BIOBASE first industrial park in Zhangqiu, which covers an area of 81325 square meters. Second industrial park is located at Tangye new district, covers an area of 166650 square meters. BIOBASE US incubator, located at Silicon valley and covering an area of 2000 square meters, is now under construction.We have set up branch offices in 24 provinces and cities in China, and has good oversea cooperation partners in more than 150 countries and regions.
After-Sales Service
* 1-year warranty period.
* Training how to install the machine, training how to use the machine
* Engineers available to service machinery overseas.
* Reliable quality and thoughtful after sale service.
Our Company:
Brief introduction of BIOBASE:
BIOBASE is a new high-tech enterprise focusing on development, production and management of scientific equipment, In Vitro Diagnosis (IVD) instrument and reagent.We are specialized in 8 areas products such as medical diagnosis, biosafety protection, disinfection and sterilization, scientific equipment, baby care products, cold chain products, software products, cleaning project, which is the world"s leading high-tech medical instrument manufacturer.
