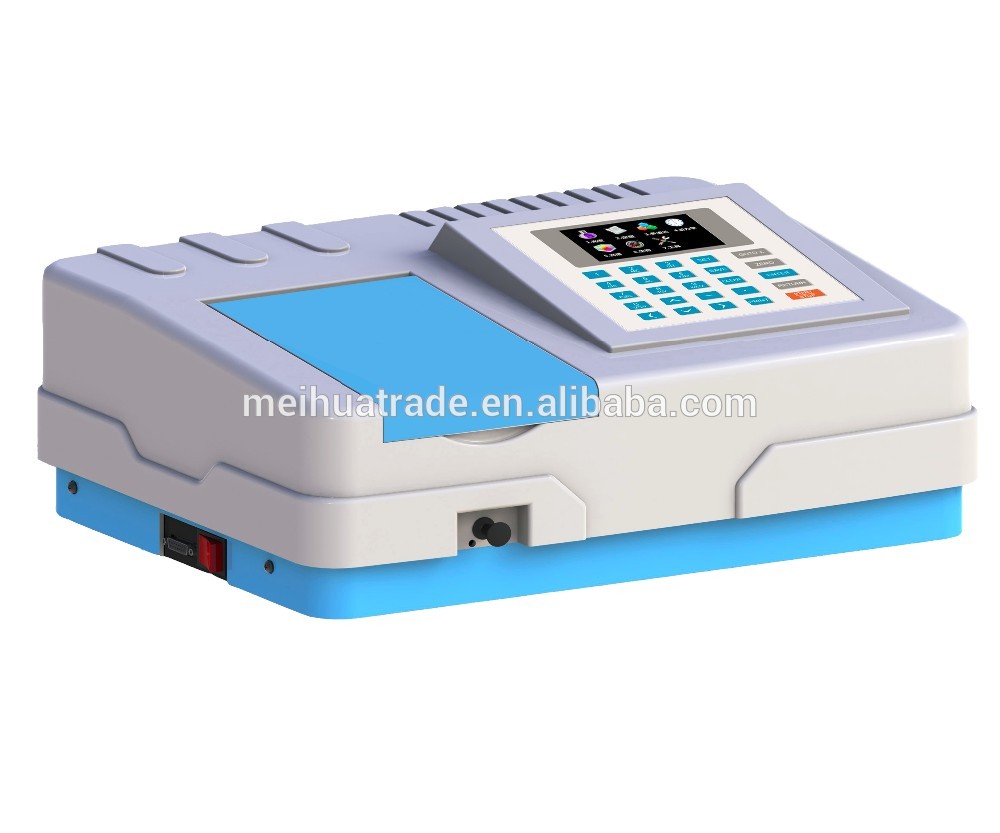

BK-S360/B-S380/B-S390 SCANNING UV/VIS SPECTROPHOTOMETER
SCANNING UV/VIS SPECTROPHOTOMETER Features:
Large LCD screen(480*800) with 65 thousand true color and support U disk data saving
mported & Environmental Deuterium lamp, preventing from Ozone inhalation
Data output: Data can be exported to U disk (USB Output)
Print port: Instrument can connect PCL printer for printing A4 paper (USB Port)
Adopted high-class grating with wholly hermetic light path design, to ensure the instrument has the super low stray light
Upgrade package can be downloaded from AOE web with S/N, support U disk one-key upgrade
Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
Pre-aligned design ensures the user can change lamps conveniently
With GLP self-check function, check the wavelength accuracy and Photometry accuracy, can provide test report and power-off protection
Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically
With Si02 coating optical mirror, reducing the pollution from outside fully
SCANNING UV/VIS SPECTROPHOTOMETER Basic Functions:
1, Photometry
Test Abs., Transmittance and Energy by fixed wavelength
2, Quantitative
Linear fit and Linear fit through zero two modes
a. Coefficient, Standard Sample input and Standard Sample read three modes to establish standard curve
b. Establish A=K1*C+K0, can search original data, graph curve, parameters settings
c. Can save 240 group curves, can test 240 data in each curve
d. Double wavelength, Triple wavelength test functions
3, Kinetics
Used for time course scanning or reaction rate calculationsA/t, can search all data.
4, Multi-Wavelength
Can test Transmittance and Abs. with 8 different wavelengths at most
5, Scanning
User can set the scan range from 190nm to 1100nm to test the max. Abs. peak value, can do derivation, arithmetical operations to the graph.
6, Biology
DNA/Protein, UV,
SCANNING UV/VIS SPECTROPHOTOMETER Specifications
Model | BK-S360 | BK-S380 | BK-S390 |
Optical System | Single Beam, Grating 1200 lines/mm | ||
Wavelength Range | 190-1100nm | ||
Spectral Bandwidth | 1.8nm | 1nm | 0.5,1,2,4,5nm |
Wavelength Accuracy | ± 0.3nm | ||
Wavelength Repeatability | ≤ 0.2nm | ||
Photometric Accuracy | ± 0.002A (0-0.5Abs), ± 0.004A (0.5-1.0Abs), ± 0.3% T (0-100% T) (0.3, 0.003) | ||
Photometric Repeatability | 0.001Abs (0-0.5Abs), 0.002Abs (0.5-1.0Abs), ≤ 0.1% T (0-100% T) | ||
Stray Light | ≤ 0.04% T @ 360nm; 220nm (0.05) | ||
Stability | ± 0.001A / h @ 500nm (0.0008) | ||
Baseline Flatness | ± 0.0015A | ||
Noise | ± 0.0004Abs | ||
Display | 65 thousand true color 7 inch TFT LCD(480 *800) | ||
Photometric Mode | T, A, C, E | ||
Photometric Range | 0-200% T,-0.301-3.0A | ||
Detector | Silicon Photodiode | ||
Light Source | Deuterium Lamp, Tungsten Lamp | ||
Input | Membrane Keypad | ||
Output | USB2.0*2 Print and data output USB1.0 Connect PC | ||
Compartment | Optional 8 Auto Cell holder, Solid Sample Holder, Micro Cell Holder, 10-100mm Cell Holder | ||
