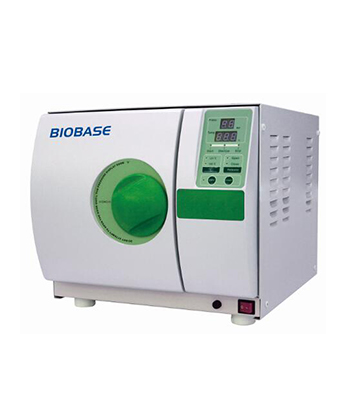

BIOBASE Tabletop Laboratory Medical Autoclave Sterilizer
Product Description:
Features:
1. Adopting European N standard, with thermal vacuum and drying functions, it can be used for A-type hollow instruments and solid instruments. Thermodynamic vacuum guarantees elimination of cold air from the cavity and makes sure that reaches the optimal effect of sterilization.
2. Specially design for dental clinic field, it could sterilize 12 pieces hand piece at same time, simply and efficiently.
3. Microprocessor control, LED display and modularized panel for easy operation.
4. Automatic malfunction detection system makes easy maintaining.
Technical Parameters:
Model | BKM-Z18N | BKM-Z24N | |
Capacity | 18L | 24L | |
Sterilization Class | Class N (according to EN 13060 standard) | ||
Sterilization Temp. | 121℃,134℃ | ||
Drying Procedure | Heating dry | ||
Display | LED display | ||
Control Precision | Temperature: 1℃ | ||
Pressure: 0.1bar | |||
Sterilization Data | Optional Mini printer | ||
Safety System | Hand lock door | ||
Pressure lock system | |||
Relief valve in case of over pressure | |||
Pressure or temperature over load protection | |||
Alarm for system failure, finish reminding, water level warning | |||
Water Supply System | Build-in water tank, easy to clean | ||
Water tank capacity | 4L | ||
Water Consumption | 0.16L~0.18L in one cycle | ||
Tray Holder | 3 pcs SS trays on SS shelf | ||
Chamber | Medical stainless steel 304 unibody structure | ||
Max working pressure:2.3bar | |||
Min working pressure: -0.9bar | |||
Max temperature: 145℃ | |||
Ambient Temp. | 5~40℃ | ||
Power Supply | 110/220V±10%, 60/50Hz | ||
Power Consumption | 1500W | 1700W | |
Chamber Size(mm) | φ245×360 | φ245*470 | |
External Size(mm) | 560*450*400 | 670*450*400 | |
Packing Size(mm) | 660*525*495 | 770*525*495 | |
Gross Weight(kg) | 53 | 60 | |
copamany show

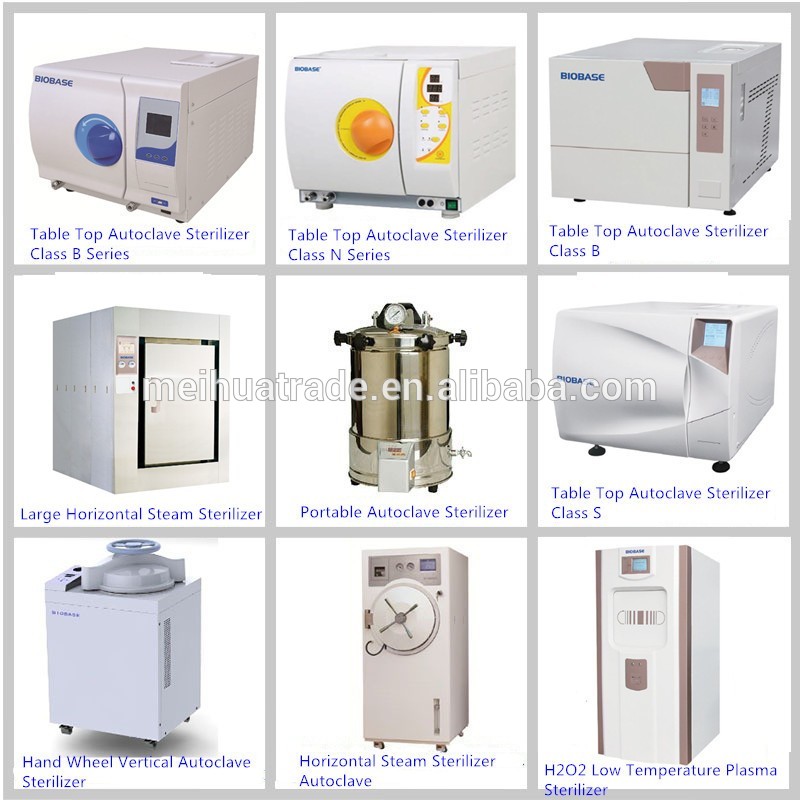

Our mainproducts :
