BIOBASE China FH(X) Series Fume Hood with Active Carbon Filter
FH-series Fume Hood is the first defense to minimize chemical exposure to research workers. They are considered the primary means of protection from inhalation of hazardous vapors.
Advantages:
1. Back side air compensation, to avoid turbulence in work area;

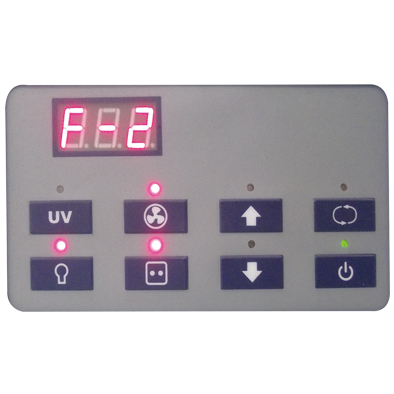

2. Microprocessor control system, LCD display;
3. Adjustable air speed: 9 levels;
4.Motorized front glass window;
5.Chemical-resistant physiochemical board work table;
6.UV Lamp for sterilization;
7.Transparent side glass windows, to maximize light and visibility inside the cabinet;
8.10° slope front ergonomics design, fatigue-free working posture;
9. Standard accessories: Taps, sink, active carbon filter, socket, UV lamp, fluorescent lamp, duct, base stand.
Technical Parameters:
Model | FH1000(X) | FH1200(X) | FH1500(X) | |
Blower | Built-in centrifugal blowers; Speed adjustable | |||
External Size (W*D*H) | 1000*800*2200mm | 1200*800*2200mm | 1500*800*2200mm | |
Internal Size (W*D*H) | 800*750*745mm | 1082*740*735mm | 1380*750*745mm | |
Max Opening | 450mm |
|
| |
Air Velocity | 0.3~0.8m/s |
|
| |
Noise | ≤60dB |
|
| |
Fluorescent Lamp | 15W*1 | 18W*1 | 36W*1 | |
UV Lamp | 30W*1 | 20W*1 | 30W*1 | |
Front Window | Motorized | |||
Material | Exterior Body: Cold-rolled steel with corrosion-proof coating. | |||
Side and Front Window: 5 mm toughened glass, anti-ultraviolet radiation | ||||
Work table: Solid chemical-resistant physiochemical board | ||||
Work Surface Height | 850mm | |||
Power Supply | 110/220V±10%, 50/60Hz | |||
Consumption | 150W | 150W | 235W | |
Stand Accessory | Water tap; Gas tap; Water sink; Base stand | |||
One, total consumption:500W | Two, total consumption:1000W | |||
4-meter Exhaust duct (Φ 300mm) | ||||
Active carbon filter | ||||
Foot switch | ||||
Optional Accessory | Infrared Sterilizer | |||
Gross Weight | 230kg | 320kg | 370kg | |
Package | 1080*1050*1500 mm | 1280*1050*1500mm | 1580*1050*1500mm | |
