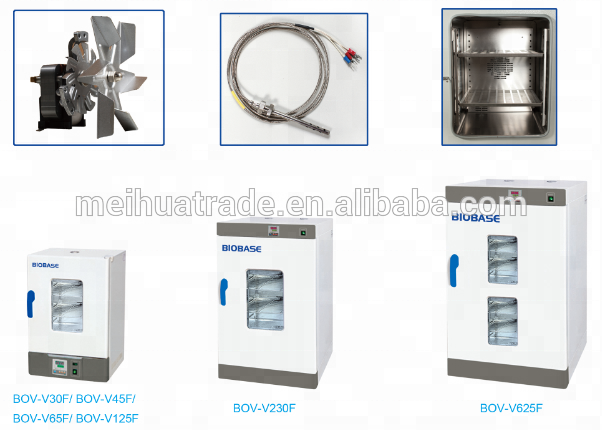

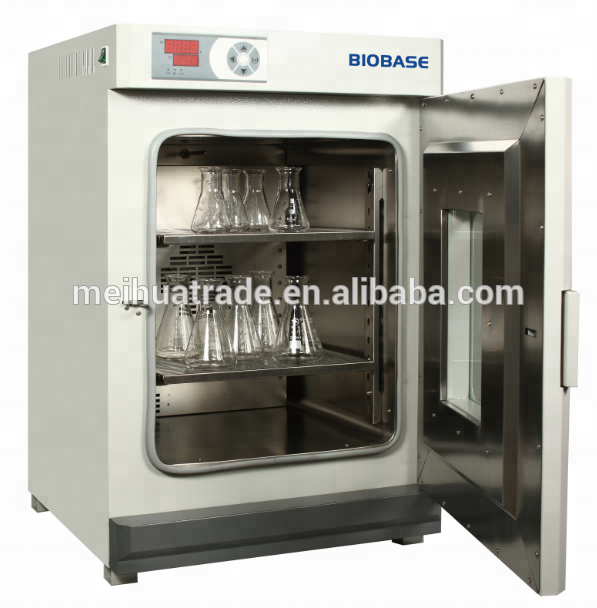

Laboratory Vertical Forced Air Drying Oven BOV-V30F
--FEATURES
*External material: cold-rolled steel with anti-bacteria powder coating.
*Stainless steel inner chamber, round angle structure, adjustable shelves.
*Double-layer glass observation window, adjustable airtight buckle lock.
*PID microprocessor intelligent temperature controller.
*Over-temperature protection.
--TECHNICAL PARAMETERS
Model | BOV-V30F | BOV-V35F | BOV-V45F | BOV-V65F | BOV-V70F | BOV-V125F | BOV-V136F |
Capacity | 30L | 35L | 45L | 65L | 70L | 125L | 136L |
Temp. Range | RT+5~300℃ | RT+10~250℃ | RT+5~300℃ | RT+5~300℃ | RT+10~250 /300℃ | RT+5~300℃ | RT+10~250 /300℃ |
Temp. Precision | 0.1℃ | ||||||
Temp. Fluctuation | ±0.5℃ | ||||||
Ambient Temp. | 5~40℃ | ||||||
Timing Range | 1~9999min | ||||||
Shelves No. | 2 pcs | ||||||
Power Consumption | 800W | 550W | 1200W | 1600W | 1050W | 2300W | 1500W |
Power Supply | 220±10%, 50/60Hz; | 220V/110V±10%, 50/60Hz; | 220±10%, 50/60Hz; | 220±10%, 50/60Hz; | 220V/110V±10%, 50/60Hz; | 220±10%, 50/60Hz; | 220V/110V±10%, 50/60Hz; |
Internal Size (W*D*H)mm | 310*310 *310 | 340*320 *320 | 350*350 *350 | 400*360 *450 | 400*350 *500 | 500*450 *550 | 450*550 *550 |
External Size (W*D*H)mm | 460*510 *695 | 620*530 *490 | 500*550 *735 | 540*550 *840 | 550*550 *860 | 636*680 *915 | 600*745 *900 |
Packing Size (W*D*H)mm | 550*570 *765 | 640*615 *790 | 620*585 *800 | 640*640 *905 | 680*680 *990 | 730*720 *1000 | 730*860 *1030 |
Gross Weight(kg) | 51 | 55 | 56 | 61 | 75 | 71 | 95 |
Model | BOV-V225F | BOV-V230F | BOV-V429F | BOV-V625F | BOV-V640F | BOV-V960F |
Capacity | 225L | 230L | 429L | 625L | 640L | 960L |
Temp. Range | RT+10~250 /300℃ | RT+5~300℃ | RT+10~250 /300℃ | RT+5~300℃ | RT+10~250 /300℃ | RT+10~250 /300℃ |
Temp. Precision | 0.1℃ | |||||
Temp. Fluctuation | ±0.5℃ | |||||
Ambient Temp. | 5~40℃ | |||||
Timing Range | 1~9999min | |||||
Shelves No. | 2 pcs | 3 pcs | 3 pcs | 4 pcs | 5 pcs | |
Power Consumption | 2100W | 3000W | 4000W | 5000W | 4500W | 6000W |
Power Supply | 220V/110V±10%, 50/60Hz; | 220V±10%, 50/60Hz; | 380V/50HZ | |||
Internal Size (W*D*H)mm | 500*600*750 | 600*500*750 | 600*550*1300 | 660*760*1250 | 800*600*1300 | 1000*600*1600 |
External Size (W*D*H)mm | 650*805*1100 | 730*670*1220 | 745*750*1670 | 895*925*1830 | 950*790*1675 | 1140*800*2150 |
Packing Size (W*D*H)mm | 780*880*1210 | 900*800*1350 | 880*880*1820 | 1000*1080*2000 | 1050*870*1795 | 1220*890*2190 |
Gross Weight(kg) | 110 | 105 | 145 | 160 | 170 | 230 |
