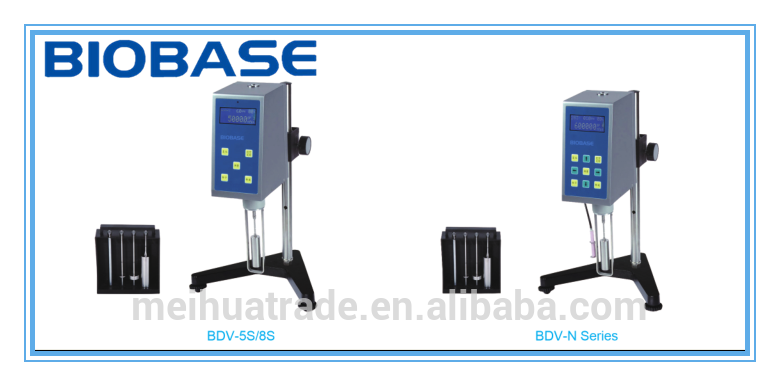

Low Price Viscometer/Digital Viscometer with standard accessaries of 4 types Spindles
Product Description
Spindles:
Technical parameters:
Model | BDV-1N | BDV-2N | BDV-3N | BDV-4N |
Measured Range (mPa·s) | 1~600,000 | 0.6~6,000,000 | 6~80,000,000 | 50~10,000,000 |
Rotation Speed(rpm) | 1~60 | 0.1~99.9 | 0.1~99.9 | 0.1~200 |
Number of Spindle | 4 types(L1~L4) | 4 types | ||
Measurement Accuracy | ±1%(Newtonian Fluid) | |||
Repeatability | ±0.5% (Newtonian Fluid) | |||
Power supply | AC220V±10%, 50/60HZ; 110V±10%, 50/60HZ | |||
L0spindle is for Option Measured Range (mPa.s) |
1~600 |
0.6~6,000 |
6~60,000 |
3~60,000 |
Package Size | 400*350*360mm | 400*350*360mm | 400*350*360mm | 400*350*550mm |
G.W. | 9kg | 9kg | 9kg | 10.5kg |
