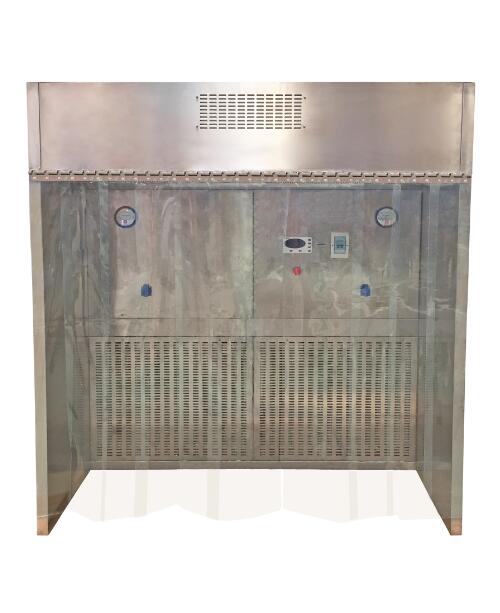

BIOBASE China CE marked dispensing weighing sampling booth, air curtain clean booth design for pharmaceutical
Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Dispensing booth is also called sampling booth or weighing booth.
FEATURES
1. Customized design is welcome.
2. Unique designed air duct effectively controls the noise.
3. Smooth transitions of wall and ground can eliminate the blind angle.
4. Differential pressure gauge is equipped to real-time monitor the filters.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
7. Uniform flow design of main working area can protects the operators and prevent environmental pollution
and cross contamination of products.
PARAMETERS
Model | BKDB-1200 | BKDB-1800 | BKDB-2400 | |
Clean Level | ISO 5 (Class 100), Class A | |||
HEPA Filters | 99.999% efficiency at 0.3 um | |||
Air volume | Supply air volume: ≤7500m3/h, Exhaust air volume: ≤2250m3/h; Adjustable | |||
Material | Fully stainless steel | |||
Air Velocity | 0.35~0.65m/s, adjustable | |||
Noise | ≤75db | |||
Illumination | ≥800lux | |||
UV Lamp | Emission of 253.7nanometers, with UV timer | |||
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
Consumption | 400W | 800W | 800W | |
Weight | 150kg | 200kg | 250kg | |
Work Area Size (W*D*H) | 1200*1200*2000mm | 1800*1800*2000mm | 2400*1800*2000mm | |
Gross Weight | 420kg | 750kg | 840kg | |
Package Size (W*D*H) | 1500*2000*2650mm | 2040*1680*2180mm 2040*1400*600mm 2040*1940*1060mm | 2600*800*2150mm 2600*700*400mm 2600*1900*550mm | |
Customized design for clean level, size or material is available | ||||
