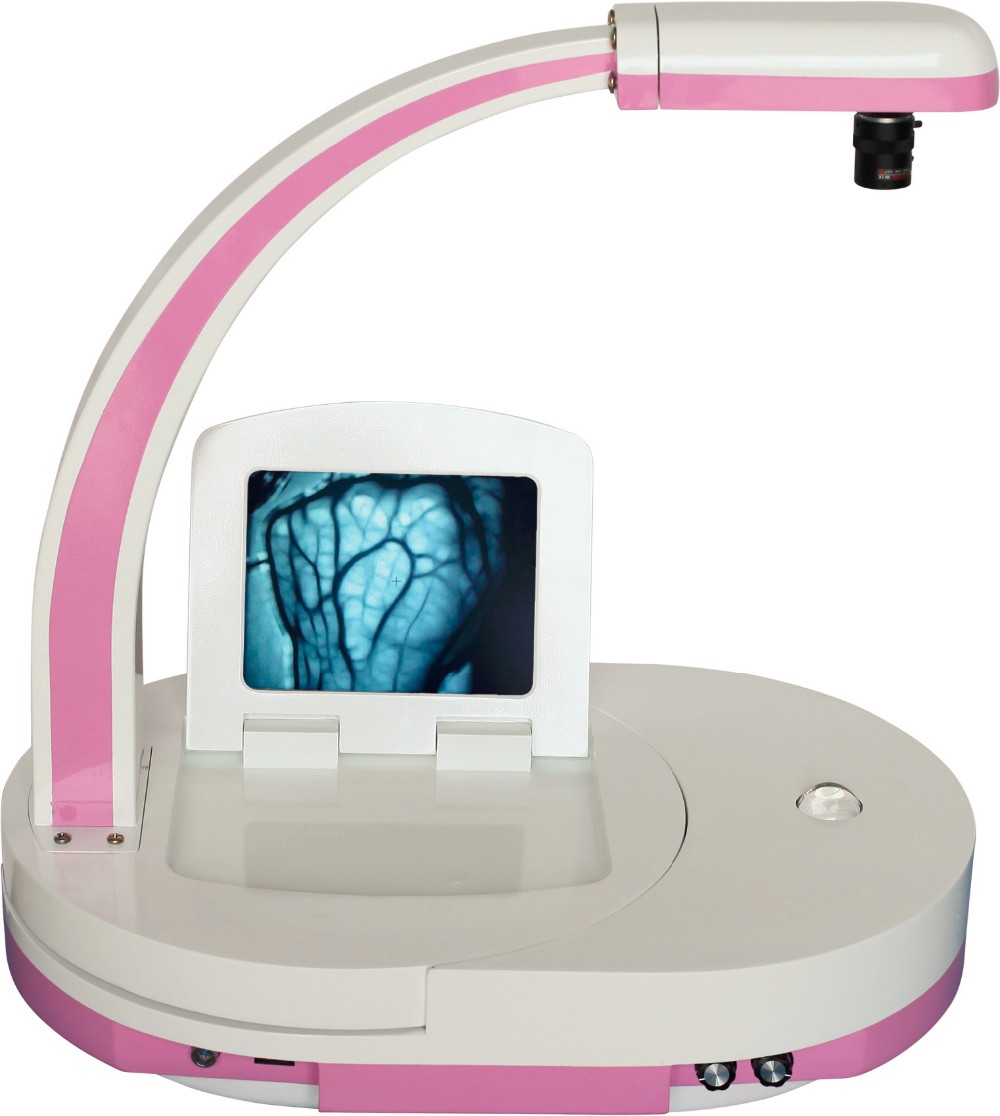

BIOBASE Hot Sale Table Top Vein Imaging Device or Veinviewer
1. With narrow band infrared light source, no damage to human body, no radiation, no heat, no harm to eyes;
2. The 3 million pixels camera can display the magnified image clearly and provide reference for the accurate puncture;
3. With two road top and bottom light source: bottom light source adopts the German original high-power LED solid-state light source, strong penetrability; top light source is multipoint LED, no shadow, no reflected light interference, suitable for observing the superficial blood vessels;
4. Both of the light sources are stepless adjustable;
5. The industrial grade camera and display provide best imaging;
BIOBASE Vein Imaging Device or Veinviewer
Model | BKVD-1201 | BKVD-1202 | BKVD-1203 |
Wavelength Range | 750~950nm | ||
Light Source Intensity | Stepless adjustable | ||
Infrared Camera Resolution | > 480 TVL | > 600 TVL | > 600 TVL |
Camera Illuminance | 0.01 Lux | ||
S/R | 50 dB | ||
Camera Lens | 3 mega-pixel camera, 7-22 zoom | ||
Display | 7″ LCD | 8.4″ LCD | 8.4″ LCD |
LCD Contrast | 600:1 | 700:1 | 700:1 |
Folding Ability |
| Screen folding | Screen folding |
Rotary Ability |
|
| 360 degree |
Power Supply | AC220V±10%, 50/60 Hz, AC110V±10%, 60 Hz | ||
Package Size(L*W*H) | 620*290*460 mm | ||
Gross Weight | 10 kg | 14 kg | 14 kg |
