Features of BS-2H/3H:
1. Aluminum plate.
2. Heating and stirring can proceed simultaneously.
3. Heating power and stirring speed is steplessly adjusted.
4. Max Temp.: 380℃, max speed: 2000rpm.

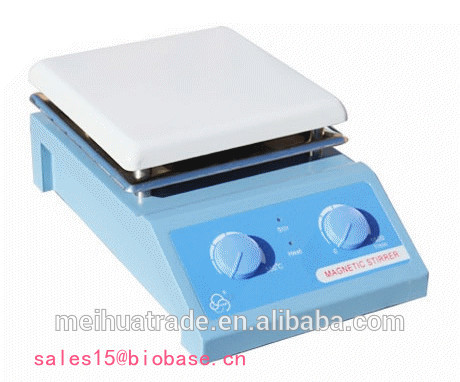

Features of BS-4H/4HC:
1. Ceramic plate.
2. Heating and stirring can proceed simultaneously.
3. Enclosed hot plate with flame protection, fast warm-up and durability.
4. Heating power and stirring speed is steplessly adjusted.
5. Max Temp.: 380℃, max speed: 2000rpm.
6. With the adjustable rack and stirrer bar.
7. PT100 sensor is optional.
It is used when liquid heating is needed in industry, agriculture, health and medicine, scientific research and college labs etc.
Model | BS-2H | BS-3H | BS-4H | BS-4HC |
Work Plate Size | 120*120mm | 170*170mm | 190*190mm | |
Work Plate Material | Aluminum | Ceramic | ||
Max. Stirring Capacity | 2L | 5L | ||
Speed Range | 100-2000rpm | |||
Heating Temp. | 380 ℃ | |||
Power Consumption | 180W | 500W | 600W | |
Power Supply | AC110/220V±10%, 50/60Hz | |||
Standard Accessory | PT100 sensor rack, stirrer bar | |||
External Size(W*D*H) | 200*120*90mm | 250*180*120mm | 300* 210* 126mm | |
Package Size(W*D*H) | 265*185*190mm | 280*210*150mm | 400* 240* 220mm | |
Gross Weight | 3kg | 3.4kg | 6kg | |
