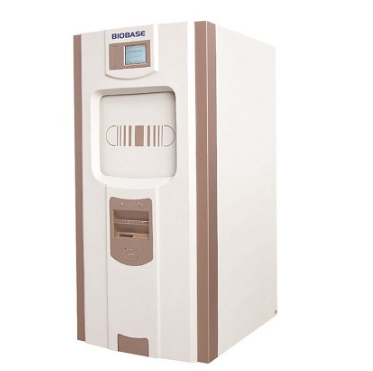

BIOBASE H2O2 Johnson and Johnson Plasma Sterilizer for Cssd Equipment
BIOBASE H2O2 Johnson and Johnson Plasma Sterilizer for Cssd Equipment
Application:
The sterilizer is applicable to sterilize the medical instruments that are thermo labile or nonmoisture tight.
It is not applicable to the sterilization of liquid, powder or cotton fabrics. All the medical instruments that
meet the following conditions can be processed by this type of sterilizer.
BKQ-PS100:
Medical tubular instrument: inner diameter≥1mm, length≤500mm
Nonmetal tubular instrument: inner diameter ≥1mm, length≤2000mm
BKQ-PS200
Medical tubular instrument: inner diameter≥0.8mm, length≤300mm
Nonmetal tubular instrument: inner diameter ≥1mm, length≤1000mm
Product features:
Low temperature sterilization
The sterilization temperature is 50±5℃ which is much lower than steam sterilization. It is dry sterilization that has
no harm on instrument, so it extends the device service life.
Safe and environment friendly
The matter after sterilization is water and oxygen molecule that have no toxic harm to staff or patient, and there
is no need for drainage or air exhausting. High efficient H2O2 filter is installed in the exhausting outlet to
guarantee no H2O2 pollution to the environment.
Convenient
Only power supply is needed for installation. The system adopts man-machine control interface with intelligent
program design. Equipped with foot switch (optional) and integrated biological incubator (optional).
Multiple models
The door structure of the sterilizer is customizable (single or double door). To meet pharmaceutical factory needs,
chamber material can be stainless steel.
Reliable sterilization
The chamber adopts alloy material which has good thermal conductivity to guarantee a stable temperature in the
chamber. The purification system makes the H2O2 diffused uniformly. The low temperature storage system
provides a stable concentration of H2O2.
Safe sealing door
The sterilizer adopts mandrill-driving auto overhead door with reliable sealing function and safe lock device to
guarantee personal safety.
Data management
The 2048M storage (optional) can store original data for inquiring. Mini printer can be used to print operation data
timely. There are two types of record methods to guarantee the data is 100% acquirable.
Advanced configuration
The vacuum pump, controller, pressure transmitter and other key components are world famous brand. The
sterilizer equipped with multiple programs and bar code identification system (optional).
Reassuring
We provide comprehensive operation training materials to key components maintenance intelligent reminding
system for your convenience.
BIOBASE H2O2 Johnson and Johnson Plasma Sterilizer for Cssd Equipment
Model | BKQ-PS40 | BKQ-PS100X | BKQ-100XP | BKQ-PS200X | BKQ-200XP |
Volume | 64L | 135L | 225L | ||
Chamber size (L*W*H)mm | 650*380*260 | 750*450*400 | 1250*450*400 | ||
Power consumption | 3.5Kw | 3.8Kw | 4.7Kw | ||
Power supply | 220V,50Hz | 380V, 50Hz | 380V, 50Hz | ||
External size (L*W*H)mm | 850*725*750 | 990*760*1600 | 1460*760*1600 | ||
Package Size (L*W*H)mm | 1110*984*1068 | 1250*1019*1918 | 1720*1019*1918 | ||
Gross Weight | 240 Kg | 460 Kg | 580Kg | ||
