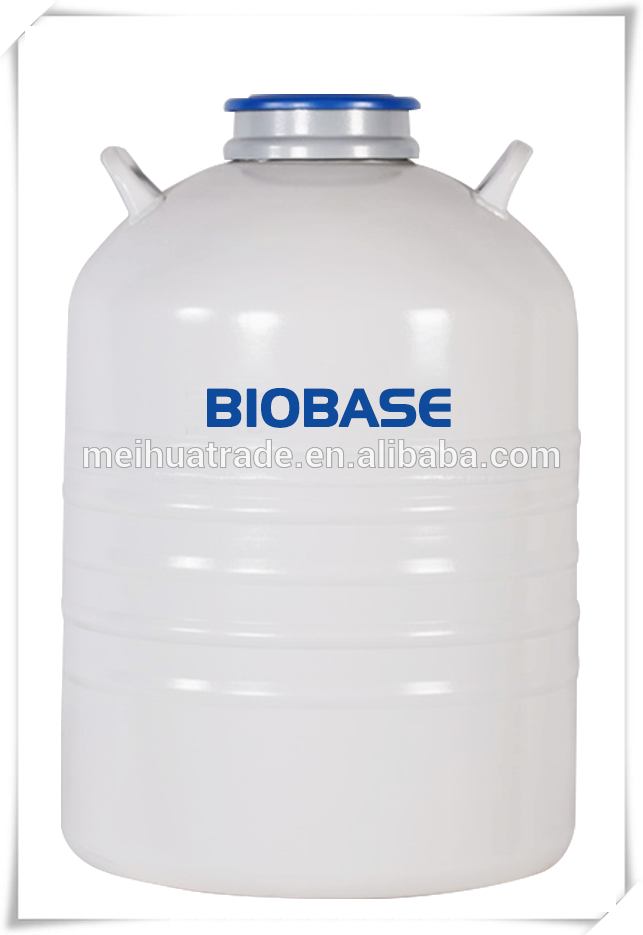

Biobase Liquid Nitrogen Container with Low price or liquid nitrogen tank
Liquid Nitrogen Container for Storage and Transportation
Biobase Liquid Nitrogen Container with Low price or liquid nitrogen tank
Mainly used for artificial insemination and biological samples storage and transportation.
*More than five years life
*Made of high-strength aluminium alloy.
*Adopting advanced powder coating technique
*A leather bag is available for models of the capacity less than 50L.
Model
| Unit
| LNC-2-30 | LNC-2-50 | LNC-3-50 | LNC-6-50 | LNC-10-50 | LNC-10-80 | |||||
Capacity | L | 2 | 2 | 3 | 6 | 10 | 10 | |||||
Weight empty | kg | 3 | 3 | 3.5 | 5 | 6.3 | 6.5 | |||||
Caliber | mm | 30 | 50 | 50 | 50 | 50 | 80 | |||||
Outer diameter | mm | 230 | 230 | 230 | 300 | 300 | 300 | |||||
Height | mm | 375 | 375 | 425 | 465 | 535 | 540 | |||||
Static evaporation loss | L/d | 0.07 | 0.10 | 0.10 | 0.11 | 0.10 | 0.21 | |||||
Static holding time | d | 29 | 20 | 30 | 54 | 95 | 48 | |||||
Canister | Canister outer diameter | mm | 19 | — | 38 | 38 | 38 | 63 | ||||
Canister height | mm | 120 | — | 120 | 120 | 120 | 120 | |||||
Canisters No. (pc) | pc | 3 | — | 3~ 6 | 3~ 6 | 3~ 6 | 3~ 6 | |||||
Canisters No. (standard) (pc) | pc | 3 | — | 3 | ||||||||
| Straw holding capacity (single) | 0.5ml | pc | 90 | — | 792 | 792 | 792 | 2244 | |||
0.25ml | pc | 204 | — | 1788 | 1788 | 1788 | 5022 | |||||
Straw holding capacity (double) | 0.5ml | pc | — | — | — | — | — | — | ||||
0.25ml | pc | — | — | — | — | — | — | |||||
Packing size (W*D*H) | mm | 254*254 *420 | 254*254 *420 | 254*254 *480 | 340*340 *500 | 335*335 *585 | 335*335 *585 | |||||
Gross weight | kg | 4 | 4 | 5 | 7 | 8 | 8 | |||||
