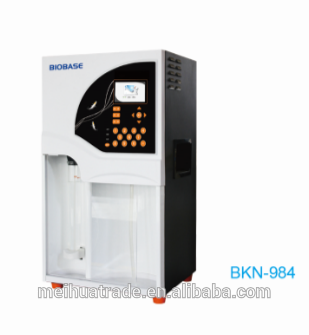

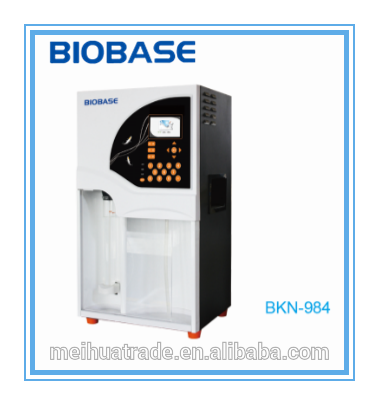

Kjeldahl Nitrogen Analyzer
Introduction
automatic calibration system of titration liquid concerntration(mol)
1. Dual mode of automatic calibration method which instrument eliminates errors and traditional direct input method.
2. Automatic calibration method which instrument eliminates errors: this method eliminates system errors which are caused by the difference between the exterior calibration of instrument and the instrument titration (calibration) and makes the system precision higher.
Safety protection system:
1. Digestion tube vacant protection: the system will not heat up if the digestion tube isn’t put in.
2. Safety door vacant protection: if the safety door isn’t pull down, the system will not heat up.
3. Automatic water-replenishing function of steam cylinder: when the steam generator has no water or its water level not high enough, the system will replenish water automatically to avoid burning without water.
4. Steam overpressure protection: when the pressure of steam generator system is too high because of the blocking and breakdown of steam pipeline or abnormal steam pipeline, the system will automatically stop running and give an alarm
5. Leakage protection: when system has leakage of electricity or the operator gets an electic shock by accident, the system will switch off the electricity and cut off power supply to make sure the operator is safe.
Accessory:
BKD Series Kjeldahl Digestion Furnace
Model | BKD-20A/B | BKD-12A/B | BKD-8A/B |
Design temperature | RT-500 ℃ | ||
Temperature control precision | ±1 ℃ | ||
Input power | 3.6KW | 2.8KW | 2KW |
Source voltage | AC220V | ||
Working current | 17A | 13A | 10A |
Heating elements | Aluminum alloy heating board (Nichrome wire) | ||
Temperature rise rate | 20 ℃/min | ||
Number of heating orifices | 20 orifice | 12 orifice | 8 orifice |
Test tube capacity | 250ml±0.25ml | ||
Technical Parameters
Model | BKN-987 | BKN-987N |
Working Process | Adding quantitative sample dilution, alkali liquor and absorption liquid; | |
Measurement Range | 0.1-240mgN | |
Measurement Sample Amount | Solid<6g liquid<16ml | |
Measurement time | 4-8 minutes | |
Titration Precision | 2.0Ul/step | 0.5Ul/step |
Titration Solution Concentration | Direct titration samples with 4 titration concentrations of 0.1mol,0.5 mol and 1 mol | |
Titration System | High-precision plunger type titration system | High-precision peristaltic titration system |
Executive Standard | Comply with stipulations of AOAC, EPA, DIN, ISO AND GB | |
Repeatability Precision | ±0.5% | |
Recovery Ratio | ≥99.5% | |
Data Storage | Effective storage space 2G | |
Print Function | 110mm line printer which can realize user selective print function | |
Power | 1800w | |
Power Supply | 220v/50Hz | |
Requirement of Cooling Water | Under 25℃ | |
Cooling Water Consumption | 1.5L/min (Distillation process) | |
Certifications:
BIOBASE group, founded in 1999 and been through high and stable development for 15 years, who is now with revenues of one hundred million, 1200 employees in China and abroad offices, 22.4 acres land industry parks and 20000 square meters production base.
The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer.
BIOBASE group invests in science and technology research, aim to keep impoving products performance and quality as well as develop new products to meet customers wide requirement.
We satisfy our customers by offering comprehensive support, purchase convenience and we are ready to serves more and more BIOBASE users.
BIOBASE group, serving global distributors and its loyal end users, is becoming one of the most important scientific services supplier.
Till now we have exported to more than 200 countries.
EXhibitions:
Package
With a wooden or cardboard boxes, strong packing.
