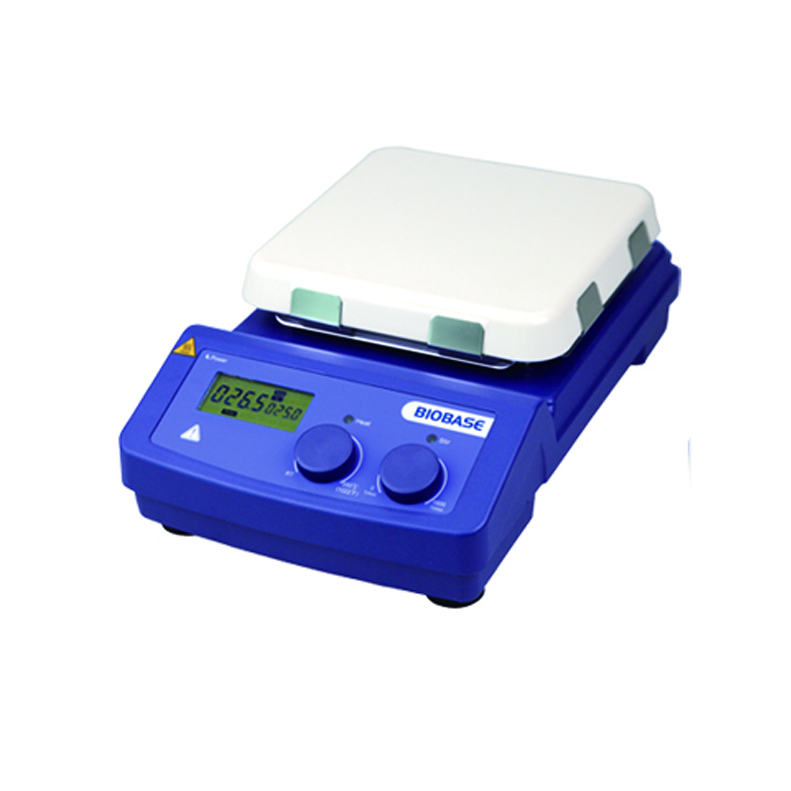

NEW MS7-H550-Pro Laboratory Hotplate Magnetic Stirrer
MS7-H550-Pro MS7-H550-S MS-H-Pro+ MS-H-Prot (with timer) MS- MS-H280-Pro
Technical parameter of Laboratory Hotplate Magnetic Stirrer
Model | MS7-H550-Pro | MS7-H550-S | MS-H-Pro+ | MS-H-Prot | MS-H-S | MS-H280-Pro |
Work Plate Size | 184x184mm | 135mm | ||||
Work Plate Material | Glass ceramic | Stainless steel with ceramic coated | ||||
Max. Stirring Capacity | 20L | 10L | 20L | 3L | ||
Motor Type | Brushless DC motor | Shaded pole motor | Brushless DC motor | DC motor | Brushless DC motor | |
Motor Input | 18W | 15W | 18W | 5W | ||
Motor Output | 10W | 1.5W | 10W | 3W | ||
Speed Range | 100~1500rpm | 0~1500 rpm | 100~1500rpm | 0~1500rpm | 100~1500rpm | |
Speed Display | LCD | Scale | LCD | Scale | LED | |
Speed Display Accuracy | ±1rpm | / | ±1rpm | / | ||
Heating Output | 1000W | 500W | ||||
Heating Temp. Range | RT-550℃, increment 1 | RT-550℃, increment 5 | RT-340℃, increment 1 | RT~340℃ | RT-280℃, increment 1 | |
Control Temp. Precision | ±1(<100℃) ±1%(>100℃) | ±10℃ | ±1(<100℃), ±1%(>100℃) | / | ±1(<100℃) ±1%(>100℃) | |
Max Temp. | 580℃ | 360℃ | 350℃ | 320℃ | ||
Temp. Display | LCD | LED | LCD | Scale | LED | |
Display Temp. Accuracy | ±0.1℃ | ±1℃ | ±0.1℃ | / | ±1℃ | |
External Temp. Sensor | Optional PT1000 | / | Optional PT1000 | |||
Max. Stirrer Bar Length | 80mm | 50mm | ||||
Interface | RS232 | / | RS232 | / | / | |
Protection Type | IP21 | IP42 | IP21 | |||
Ambient Temp. | 5-40℃ | |||||
Relative Humidity | 80% | |||||
Power Consumption | 1050W | 1030W | 550W | 530W | 515W | |
Power Supply | AC110/220W±10%, 50/60Hz | |||||
External Size(W*D*H) | 215*360*112mm | 160*280*85mm | 150*260*80mm | |||
Package Size(W*D*H) | 280*420*200mm | 210*345*160mm | 225*290*190mm | |||
Gross Weight | 6.5kg | 3.5kg | 2.5kg | |||
FAQ FOR BETTER AND EASY COOPERATION
1--Why choose BIOBASE?
We are the leading manufacturer, OEM &ODM service are offered.
2--How about the sample of BIOBASE products?
We could send you the samples nut the freight and the sample are charged.
3--How about BIOBASE payment term?
T/T &L/C&Western Union(40% deposit, the balance before shipment)
4--How about BIOBASE delivery time?
Within 7-15 workdays after receiving deposit.
5--How about BIOBASE validity of quotation?
Usually 30 days as the shipping freight and exchange rate can be fluctuant.
6--What’s the shipping port?
FOB to Qingdao Port, China(also can ship according to customer’s request)
7--How about the package?
Bubble film+ Cotton+ Standard export wooden case.
8--How to inspect the goods?
Products will be checked by our QC staff firstly, then our project manager.
Client can come and check by themselves or third party check is available.
