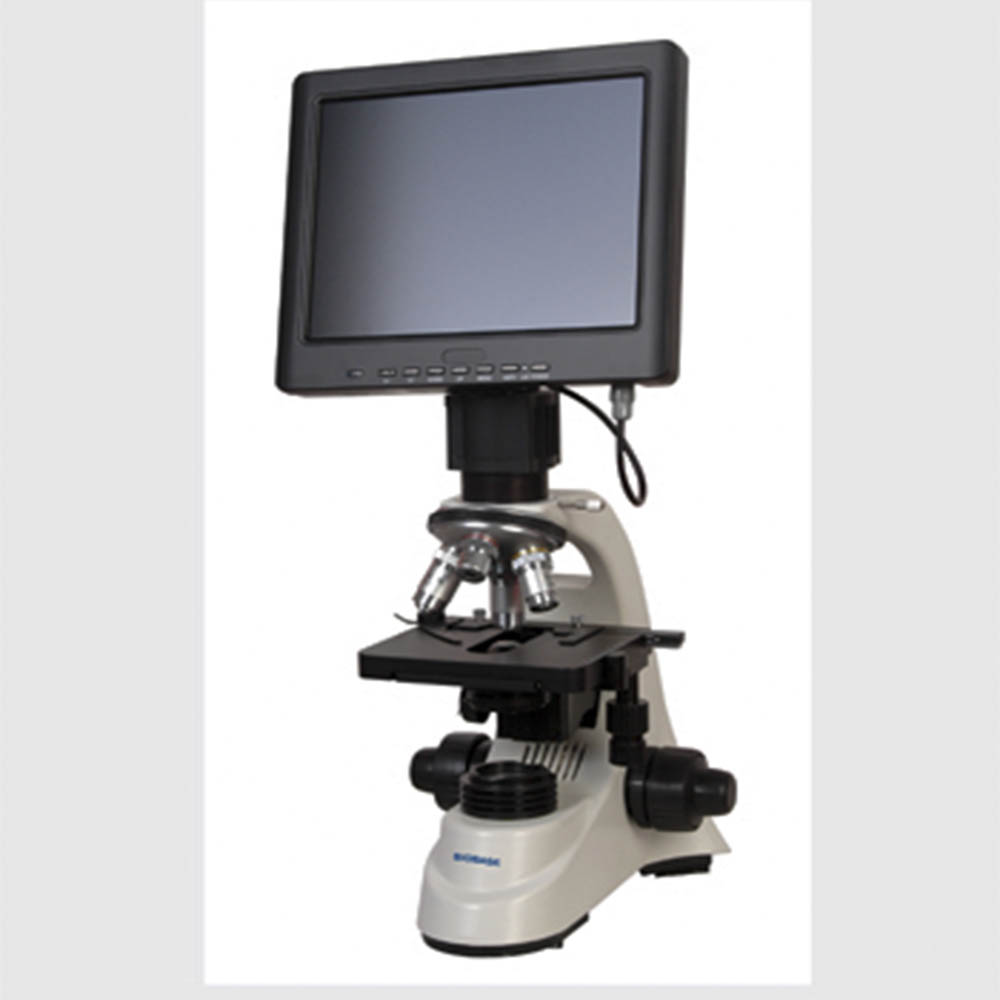

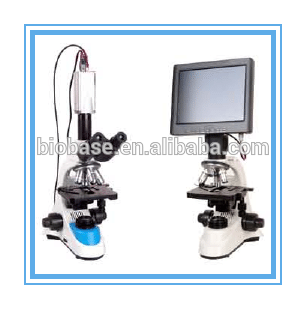

<h2>Trinocular Microscope Connect to Camera or Monitor Digital Microscop</h2>
Technical Parameters
Specification | Model | ||||||
BXTV-1 | BXTV-1A | BXTV-1B | BXTV-1C | BXTV-1D | BXTV-1E | ||
Viewing Head | Sliding Trinocular Head Inclined at 45° | √ | √ |
|
|
|
|
Compensation Free Trinocular Head inclined at 30° |
|
| √ |
|
|
| |
10’’LCD |
|
|
| √ | √ | √ | |
Nosepiece | Ball Beating Quadruple Nosepiece | √ | √ | √ | √ | √ | √ |
Eyepiece | WF10X/18mm | √ | √ | √ | √ | √ | √ |
Objective | Achromatic 4X,10X,40X(S)100X(S,O) | √ | √ |
| √ | √ | √ |
Plan Achromatic 4X,10X,40X(S)100X(S,O) |
|
| √ | Optional | |||
Stage | Double Layer Mechanical Stage 135*140mm | √ | √ | √ | √ | √ | √ |
Condenser | ABBE NA1.25 condenser with Iris Diaphragm &filter,rack&pinion adjustable | √ | √ | √ | √ | √ | √ |
Illumination | Build-in Illumination,Halogen lamp6V/20W,Power supply 90-230V | √ | √ | √ | √ | √ | √ |
Power supply | 110,220V/50,60Hz | √ | √ | √ | √ | √ | √ |
Package | Cartoon with foam | √ | √ | √ | √ | √ | √ |
Package size | 250*360*460mm | √ | √ | √ | √ | √ | √ |
Gross weight | 8kg | √ | √ | √ | √ | √ | √ |
Optional Accessory | Camera, Monitor | √ | √ | √ | √ | √ | √ |
Image Sensor | 1/3 SONY CCD | Video Output | BNC 1.0VP-P.75 |
Signal System | PAL/NTSC | Backlight Compensation | OFF/ON |
Scanning frequency | Horizontal:15.62KHz Vertical:50Hz | Electronic Shuttle | AUTO IRIS EE |
Horizontal Resolution | 480TV/520TV | Camera Interface | CS |
Min Illumination | F1.2 0.5LUX 0.01 LUX | Balance | Auto |
Gain control | Auto | Power | DC 12V |
48S/N Ratio | 50dB AGC |
|
|
