- Type:
- Gel Document Imaging System
- Brand Name:
- BIOBASE
- Model Number:
- BK04S-3C
- Place of Origin:
- China
- Instrument classification:
- Class I
- Model:
- BK04S-3C
- Effective Pixels:
- 1280*1024
- Pixel Density:
- 10 bit
- Pixel Size:
- 5.4*5.4μm
- Resolution:
- 1.4 megapixels
- Transmission UV Lamp Power:
- 8W
- Filter:
- 590nm
- UV Light Transmission Area(W*L):
- 250*200mm
- Transmission UV Wavelength:
- 302nm
- Product name:
- Gel Document Imaging System
- Supply Ability:
- 400 Unit/Units per Month
- Packaging Details
- Carton&Wooden boxes
- Port
- Qingdao Port(Depending on you)
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Units) 1 - 1 >1 Est. Time(days) 15 To be negotiated
BIOBASE CCD with lower lux and high-resolution Gel Document Imaging System
Description:
Gel Document Imaging System is used for gel band observation and analysis after electrophoresis run by using software technology and the band picture can be zoomed in or zoomed out according to user"s requirements.
Features:
* CCD with lower lux and high-resolution
* Six time zoom lens and simple to enlarge and shrink gel photos
* A multi-layer gel-filter effectively filters background noise
* The gel can be placed in the center position by the indicator.
* Intelligent control box:
a. The zoon, focus, aperture, UV light and white light can be controlled through panel key and computer.
b. The UV light can shut down when the door is opened and reactivate when the door is shut
c. The UV light protection system can shut down the lights with 15 minute delay automatically.
d. Drawer-style gel platform.
Technical Parameters:
Model | BK04S-3C | BK04S-3E |
Effective Pixels | 1280*1024 | 2560 *1920 |
Pixel Density | 10 bit | |
Pixel Size | 5.4*5.4μm | |
Resolution | 1.4 megapixels | 5.0 megapixels |
Signal To Noise Ratio | >56db | |
Sensitivity | Can detect the double chain DNA of EB staining below 20pg | |
Camera | Low illumination and high resolution digital CCD | |
Zoom Lens | F=1:1.2,2/3 inch 6 times zoom lens | |
Filter | 590nm | |
UV Light Transmission Area(W*L) | 250*200mm | |
Visible Light Transmittance Area(W*L) | 250*210mm | |
Transmission UV Wavelength | 302nm | |
Reflectance UV Wavelength | 254, 365nm | |
Transmission UV Lamp Power | 8W | |
Reflectance UV lamp Power | 11W | |
External Size(L*W*H) | 470*405*820mm | |
Package Size(L*W*H) | Main machine:710*760*1390mm,Accessory:420*320*330mm | |
Gross Weight | Main machine:61kg,Accessory:2.5kg | |
Our company:
Founded in 1999, having over 2000 employees (till August, 2018), BIOBASE Group is a new high-tech enterprise focusing on development, production and management of scientific equipment, In Vitro Diagnosis (IVD) instrument and reagent.
BIOBASE Group is specialized in products of 8 areas including medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.

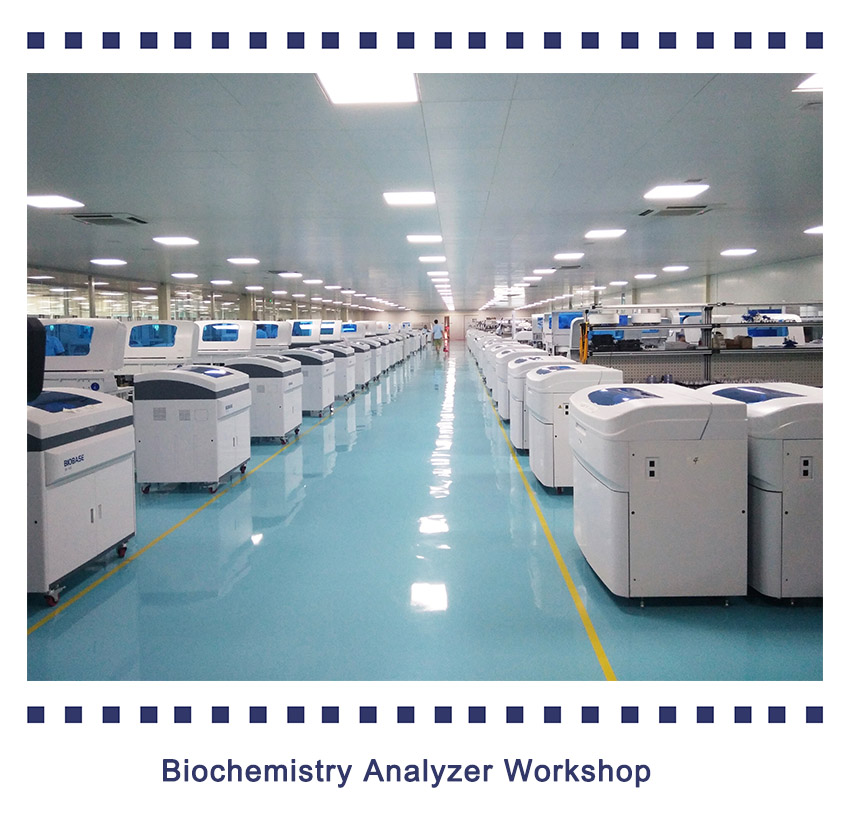

Gathering up a professional team of experts, scholars as well as other scientific research personnels, our company has obtained patents and expanded marketing for multiple products such as the self-developed Biochemistry analyzer, 107 kinds of Reagents, Automatic Elisa processor, Medical sterilization instrument and Biosafety protection equipment.

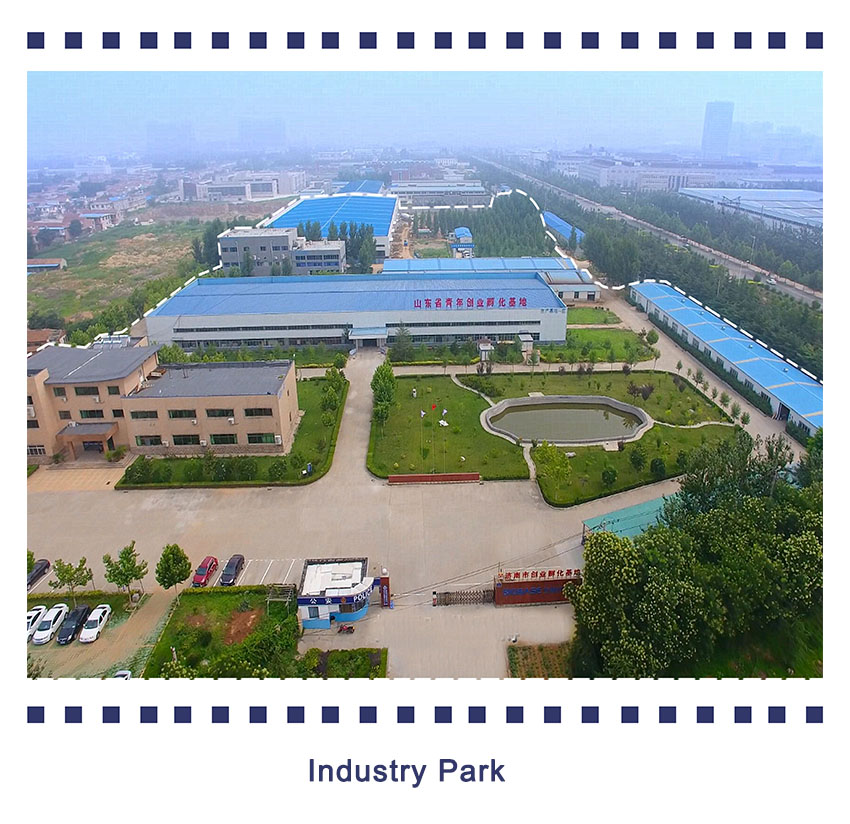

BIOBASE Group have completed the construction of BIOBASE first industrial park in Zhangqiu, covering an area of 80,000 square meters, second industrial park in Tangye new district, covering an area of 160,000 square meters, and USA incubator in Silicon valley, covering an area of 2000 square meters.
