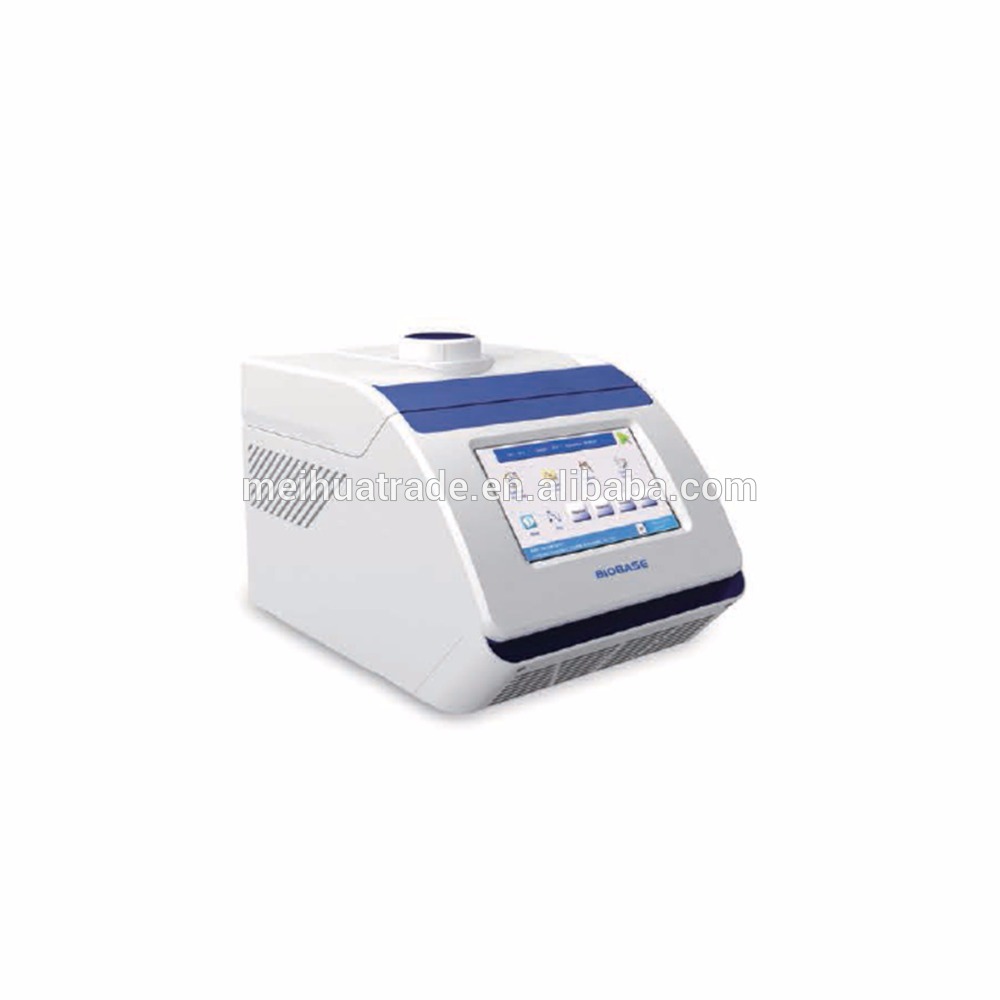

Features of PCR Machine Thermal cycler:
Thermal cycler is a apparatus most commonly used to amplity
segments of DNA via the polymerase chain reaction(PCR).
Based on the general function of standard PCR product,
the BK-E3T Gradient PCR is further enhanced by thermal
gradient technology.Its thermal gradient module allows
simultaneous incubation at up to 12 different annealing
temperatures, to optimizing reactions in a single run and
improve efficiency of your research.
Technical parameters of PCR Machine Thermal cycler:
Model | BK-E3T |
Sample Capacity | 0.2ml×96 wells, 0.5ml×77 wells PCR tubes, PCR microplate |
Temperature Control | Thermoblock& Sim-Tube Mode |
Programmable Temperature Range | 4 to 99℃ |
Heating/Cooling Rate | 2.0℃/sec(average) |
Sample Volume | 10 to 80ul |
Temperature Accuracy | ±0.3℃ |
Temperature Uniformity | ±0.3℃(within30 sec of arrival 90℃) |
Gradient Capability | 12row(horizontal) |
Gradient spread | 0 to 30℃ |
Gradient Temperature. Range | 30℃to 99℃ |
Program number | 1-200 |
Number of linkage files | 1- 9 |
Program Segment | 1- 6 |
Number of temperature steps | 1-16 |
Number of Cycles | 1-99 |
Hold Time | 1sec to 99 min 59 sec or indefinitely |
Temperature Increments/Decrements | 0 to 30℃ |
Tm Calculator | Yes |
Lid Temperature | 105℃±0.3℃ |
Power-off Protection | Yes |
Dimensions(L×W×H) | 29cm×24cm×25cm |
Weight | 7kg |
Operating Conditions | 5 to 35℃, ≤80% Rel. humidity |
Voltage/Frequency | AC220×(1±10%)V,50×(1±10%)Hz |
