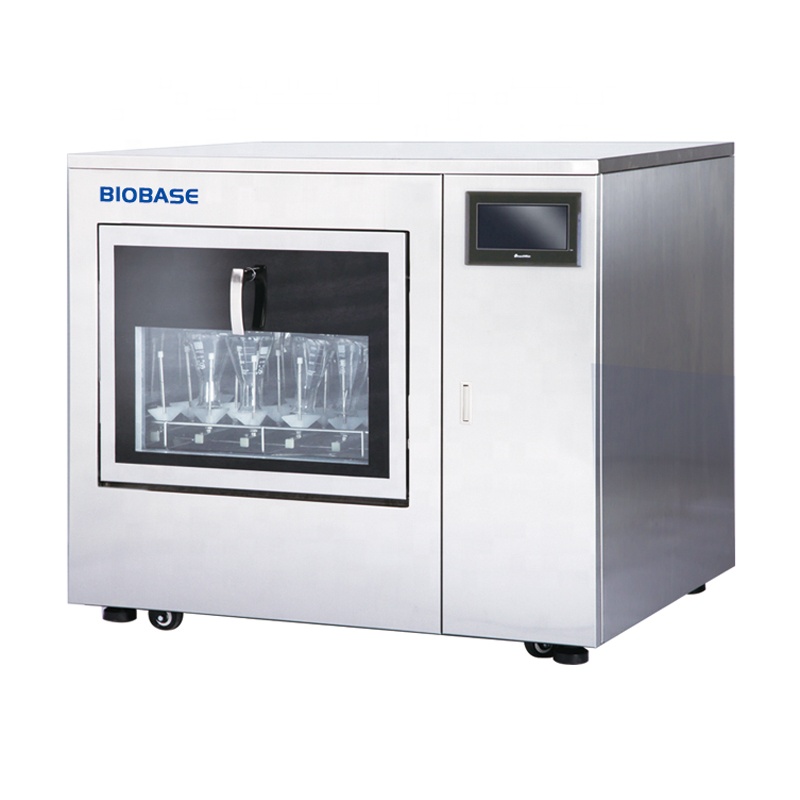

BIOBASE HEPA filter and drying process automatic glassware washer

Click on the image to view the original image

Product：	views：13BIOBASE HEPA filter and drying process automatic glassware washer
Branch：	BIOBASE
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 18:44

Product Details

Overview

Quick Details

Place of Origin:: Shandong, China

Brand Name:: BIOBASE

Model Number:: BK-LW420

Standard:: Other

External size:: 1100*900*2000mm

Capacity:: 420L

Water consumption/cycle:: 25L

Inlet water pressure:: 0.3~0.8 Mpa

Max noise:: Less than 60dBa

Power supply:: 220V,50Hz

Consumption:: 20KW

Packing Size:: 1300*1040*2235mm

Gross Weight(kg):: 420

Optional Accessories:: USB interface, printer, cleaning racks

Supply Ability

Supply Ability:: 200 Unit/Units per Month

Packaging & Delivery

Packaging Details: wooden package

Port: Qingdao

Lead Time:

Quantity(Units)	1 - 1	>1
Est. Time(days)	30	To be negotiated

BIOBASE automatic glassware washer

Product Description

Feature:

1.Perfect cleaning for glassware external and inner surface. Top and bottom are arranged rotary spray arm with many nozzles to achieve cleaning all range angle; top nozzle and cylinder fan-shaped incision design ,360° cleaning vessel inner ssurface

2.Independent air heater with circulating fan, improve the drying efficiency, the drying temperature can be set 50~90°

3.Fully stainless steel structure (SUS304 or SUS316)

4.PLC control system, stable and reliable performance; double temperature control for water and air

5.Electronic secutiry door lock; doublr protection for water and air temperature, over teperature protection.

Standard washing procedure

Pre-cleaning→washing with cleaner agent→rinse→ washing with neutralization agent→rinse→washing with hot water→drying

Technical parameters

Model	Dimension (WDH)mm	Voltage (V/Hz)	Power (KW)	Capacity (L)	Max Noise (dBa)	Water pressure(Mpa)
BK-LW-120	980740830	220/50	6	120	≤50	0.3-0.8
BK-LW-220	7106801750	380/50	17	220	≤55	0.3-0.8
BK-LW-320	7106801900	380/5	19	320	≤55	0.3-0.8
BK-LW-420	11009002000	380/50	22	420	≤60	0.3-0.8
