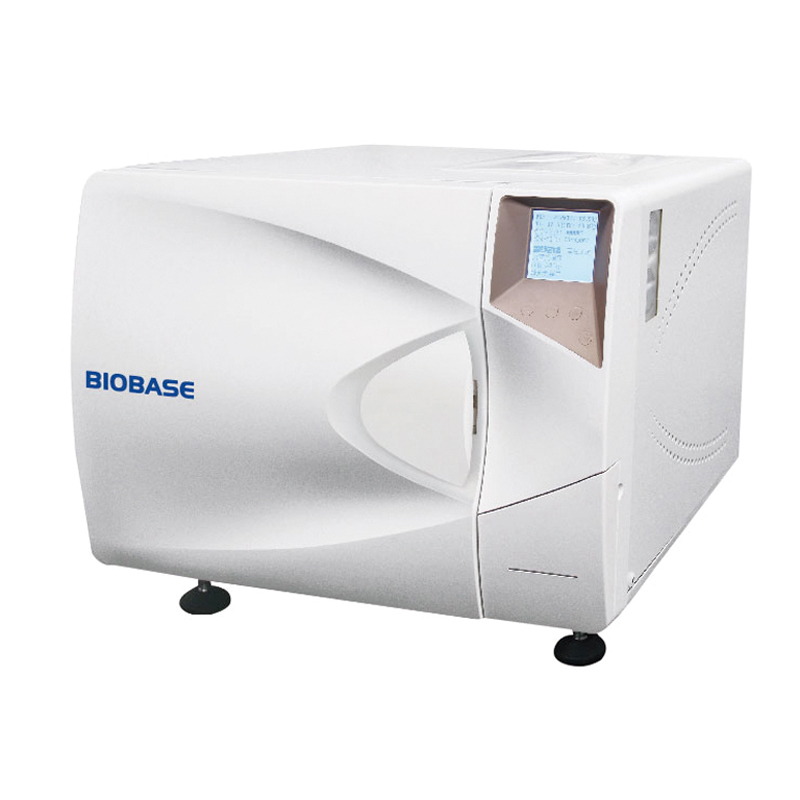

BIOBASE CE Certified Table top Autoclave Sterilizer
BKM-S series autoclave is a Class B table top sterilizer. As a type of high pressure sterilizer, it takes steam as its sterilization medium which is fast, safe and economic. They are common used in medical health care institution or R& D institution to make the sterilization for wrapped or unwrapped instrument, fabric, utensils, culture medium, unsealed liquid, etc.
Features:
Build-in open type water tank
a. Easy-clean open type water tank
b. Water quality monitor
c. Water filter inside
d. Water level sensor
e. A fully injected water tank can support repeated program running.
Brand-new operation interface
The LCD screen can display temperature, pressure, time, operating status, error and alarm information, etc. It is convenient for users to observe the sterilizer running status.
Multiple security protective device
Over temperature automatic protective device, multiple control and protection for steam generator, door safety interlock protection and dual chamber overpressure protection, electronic circuit safety device.
Automatic door structure
BKM-Z24/45S series adopt automatic door structure, fast and simple operation, protecting operators from scald. BKM-Z80S series adopt multipoint synchronous linkage pressing technology, reliable and durable.
A variety pf programs
Sterilization programs: Unwrapped, Wrapped, Rubber, User01, N-Quick
Auxiliary program: Preheat, Washing
Efficiency steam generator
BKM-Z24/45S series adopts build-in instant steam generator. BKM-Z80S adopts build-in energy-storage type steam generator producing steam in high speed and large quantity.
Other features
Heating, sterilization, exhausting, drying totally automatic.
Chamber is heated by film heater, saving energy and time.
Technical parameters:
Model | BKM-Z24S | BKM-Z45S | BKM-Z80S |
Volume | 24 L | 45 L | 80 L |
Design Pressure(MPa) | -0.1/0.3MPa | ||
Design Temp.(℃) | 144℃ | ||
Temp.Range(℃) | 105-138℃ | ||
Chamber Material | MedicalStainless steel 304 | ||
Standard Loading Tray | Type A | Type B | |
Power Supply | 110/220V±10%, 50/60Hz | 220V±10%, 50/60Hz | |
PowerConsumption | 2.6 Kw | 5.8 Kw | 7.4 Kw |
Chamber Size(mm)(?*L) | ?250*450 | ?316*618 | ?385*717 |
External Size(mm)(W*D*H) | 6605*530*450 | 830*640*550 | 1002*730*560 |
Packing Size(mm)(W*D*H) | 980*720*680 | 990*770*685 | 1160*870*795 |
Gross Weight(Kg) | 70 | 80 | 180 |
