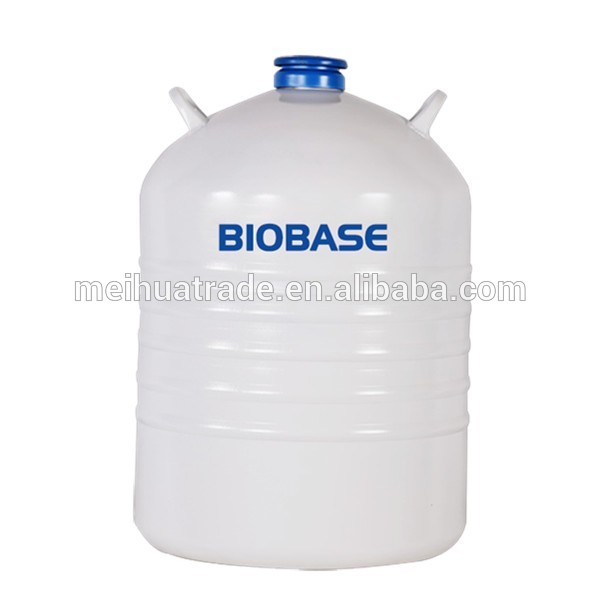

LNC-15 -50 Liquid Nitrogen Container for Storage and Transportation laboratory cheap price
Introduction of Liquid Nitrogen Cryogenic Storage Tank
*More than five years life
*Made of high-strength aluminium alloy.
*Adopting advanced powder coating technique
*A leather bag is available for models of the capacity less than 50L.
Parameter of Liquid Nitrogen Cryogenic Storage Tank
Model | Unit
| LNC-15 -50 | LNC-20-50 | LNC-20B -50 | LNC-25 -50 | LNC-30 -80 | LNC-30B -50 | |||||||
Capacity | L | 15 | 20 | 20 | 25 | 30 | 30 | |||||||
Weight empty | kg | 8.2 | 12 | 12 | 12.8 | 13.5 | 13.1 | |||||||
Caliber | mm | 50 | 50 | 50 | 50 | 80 | 50 | |||||||
Outer diameter | mm | 409 | 409 | 409 | 409 | 461 | 461 | |||||||
Height | mm | 600 | 640 | 640 | 670 | 652 | 655 | |||||||
Static evaporation loss | L/d | 0.11 | 0.12 | 0.19 | 0.13 | 0.20 | 0.19 | |||||||
Static holding time | d | 136 | 172 | 106 | 186 | 150 | 161 | |||||||
Canister | Canister outer diameter | mm | 38 | 38 | 38 | 38 | 63 | 38 | ||||||
Canister height | mm | 120 | 120/276 | 120 | 120/276 | 120/276 | 120/276 | |||||||
Canisters No. (pc) | pc | 3~ 6 | 3~ 6 | 3~ 6 | 3~ 6 | 3~ 6 | 3~ 6 | |||||||
Canisters No. (standard) (pc) | pc | 3 | ||||||||||||
| Straw holding capacity (single) | 0.5ml | pc | 792 | 792 | 792 | 792 | 792 | 2244 | 792 | ||||
0.25ml | pc | 1788 | 1788 | 1788 | 1788 | 1788 | 5022 | 1788 | ||||||
Straw holding capacity (double) | 0.5ml | pc | — | 1284 | 1284 | 1284 | 1284 | 3624 | 1284 | |||||
0.25ml | pc | — | 2832 | 2832 | 2832 | 2832 | 8460 | 2832 | ||||||
Packing size (W*D*H) | mm | 405*405 *615 | 446*446 *696 | 446*446 *696 | 436*436 *756 | 480*480 *840 | 480*480 *840 | 480*480 *840 | ||||||
Gross weight | kg | 12 | 14 | 14 | 16 | 18.5 | 18.5 | 18..5 | ||||||
