CE FDA ISO9001 Certificated 300T/H Fully Auto Biochemistry Analyzer Machine
Features:
1. Fully automated, Discrete, Random access
2. Total open setting of items, supported different reagents from different countries.
3. Reversed optics and imported photo sensor make sure the precision of detection results.
4. Microsring injector imported from Germany assures the veracity of a trace of samples, sample step by 0.1 UL, reagent step by1 UL
5. 24 hour non-stop working, convenient emergency function with inserting emergency at random.
6. Implementing analysis of ultra-trace reaction solution to 180 UL, and saving more reagents.
7. Discrete cuvette, preventing from cross-infection, and be washed and reused, making sure accurate result and save cost.
8. Perfect self-detection function makes sure the analyzer in order and accurate result.
9. Software is easy to learn and use. And test report can be printed.
10. Perfect function of quality control management is convenient for users to manage the clinical test result.
11. Detecting in the whole reaction process with reaction curve, convenient for users to monitor thoroughly and scientifically analyze the detection data.
12. Supporting software can implement the function of detecting surplus reagent through liquid level induction of reagent probe.
Overall Performance | Model | BK400(CRYSTAL) |
Type | Discrete, fully automatic | |
Throughput | 300T/H | |
Analysis Method | End-point, Fixed-time,Rate | |
Certification | CE, FDA, ISO9001, ISO14001, ISO13485 | |

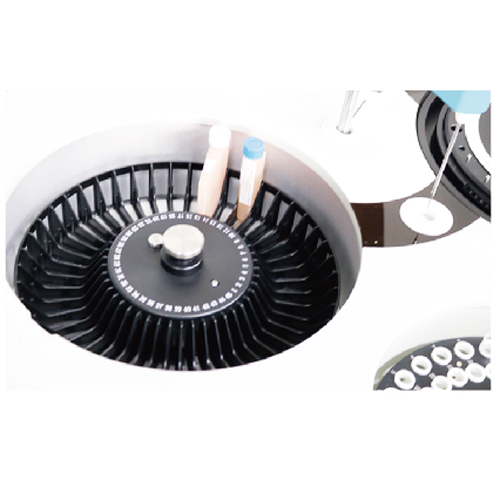

Sample unit | Sample Settings | 60 sample positions, including calibration, quality control and emergency. |
Sample Volume | 2ul ~70ul (0.1ul stepping) | |
Probe cleaning | Automatic washing both interior and exterior | |
Analysis Items | Analyzing maximally 45 items at the same time | |
Reagent unit | Reagent Position | 45 low-temperature refrigerated reagent position |
Reagent Volume | 20~350ul (1ul stepping), supporting reagent from different brand | |
Temperature Control | Continuous 2C~8Ccooling within 24 hours | |
Probe cleaning | Automatic washing both interior and exterior | |
Reaction unit | Temperature Control | 37C±0.1C,with online software monitor the temperature |
Cuvettes | 120 reusable reaction cuvettes (optical path length 6mm) | |
Mixer | After injecting reagent and sample, blending immediately | |
Washing | Automatic water cleaning and drying system | |
System Adjustment | System can record the blank value and get more accurate result by deducting blank base value of each cuvette | |
Optical System | Light Source | 12V/30W halogen-tungsten lamp, 2000 hours |
Receiver | 8 precision photo receivers | |
Wavelength Range | 340,405,450,510,546,578,630,700mm | |
Linear Range | 0.000~2.500Abs | |
Calibration and QC | Calibration | One-point,two-point,multi-point,factor |
Quality Control | Inserting quality control at random,with reaction curve can check each test items clearly. | |
Software | Emergency Function | Emergency sample can be placed in the sample tray at any time |
Software | Windows 7 /8/10 or above, LISsystem available. | |
Data Processing | Having reaction curve detection and data display function in the whole process | |
Others | Power Supply | 110/220V+10%, 60/50Hz |
External Size(W*D*H) | 1020mm*830mm*1200mm | |
Package Size(W*D*H) | 1168*908*1288mm | |
Net/GrossWeight | 130kg/185kg |
Semi- automatic Biochemistry Analyzer
This is a high performance semi auto biochemistry analyzer. It enables the user to program the analyses up, and divides them.Each part can be arranged by the chemist to be more efficient, It can analyze absorbance, linear concentration,end point, kinetic, fixed time, two pointkinetic and non-linear concentration.
Features:
1. Stream line design, nice appearance
2. Self calibration and trouble alarm function
3. Absolutely open system: both of programming and reagent
4. Warning tone for finished sipping and any other ready function
5. Function sketches on main menu; the software is simplicity, easy and fast operation.
6. Real time curve monitoring enhances the reliability of result.
7. Memory for 100 programs and 20000 test results, results tracking by date.
8. On-broad Quality control, control results available either memory or display.
Model | BIOBASE -Silver Plus |
Analysis Method | Kinetics, End point, Fixed time,etc |
Light source | 6v/10w Halogen Lamp, life Span>3000 hours |
Standard filter | 340, 405, 505, 546, 578, 620, 670nm and one free position. |
Band width | ≤8nm |
Linearity range | 0.000-3.000Abs |
Aspiration volume | 200-1400ul |
Flow cell | 32ul;Optical diameter: 1cm |
Cross contamination rate | ≤1% |
Temperature | 25℃,30℃,37℃, ±0.1℃ and be controlled by peliter |
Language | English or any language on request |
Output | Built-in printer, RS232 for additional PC |
Display | 240*128LCD |
Power supply | 110/220V+10% , 60/50Hz |
Dimension | 430*320*220mm (W*D*H) |
Net weight | 9.0kg |
200 Test Data Saved Semi-auto Biochemistry Analyzer
