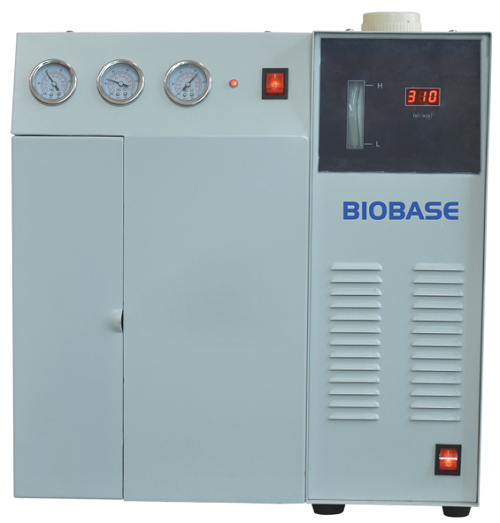

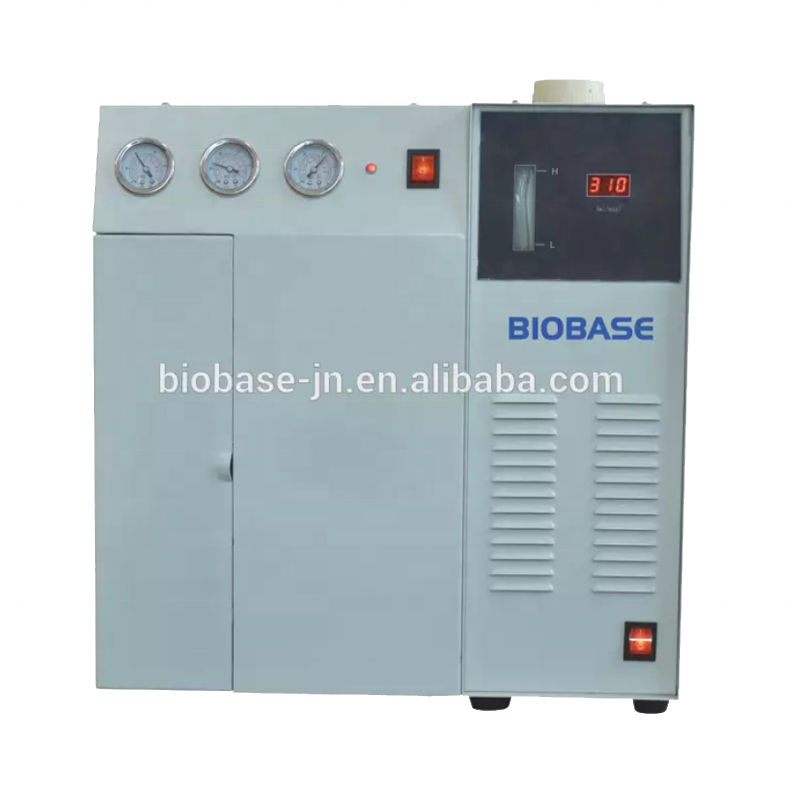

Nitrogen & Hydrogen & Air Generator with Pressure Swing Adsorption Technology
Features(Nitrogen& Hydrogen& Air Generator)
1.It can replace traditional high pressure cylinders. N2, H2 and air are generated separately or together, intermittently or continuously. The purity of gas will not decay for long time use.
2.Easy to operate,switching power on to produce gas, regular output flow, completely automatic tracking equipment.
3.Generate nitrogen through world’s leading Pressure Swing Adsorption (PSA) technology, which replaces the traditional electrolyte separation technology.
4. It is safe and convenient to operate, has no corrosion toward instrument and supplies gas for 24 hours.
5.Generate hydrogen through world leading SPE (PEM) technology. No longer need to add lye. Without alkali reversion.
6.It’s powered by whole sealing silent air compressor. After purification, water, oil, dust and impurities are removed. Through pressure stable system, pure and silent air is finally produced under stable pressure.
Model | NHA-300 | ||
Gas Type | N2 | H2 | Air |
Output Flow(ml/min) | 0-300 | 0-300 | 0-1000 |
Output Pressure(MPa) | 0-0.4 | ||
Purity(%) | 99.99 | 99.999 | Three-level Purification CO2:0.039% Oil: 0.54ppm |
Power Consumption(W) | <350 | ||
Power Voltage(V) | AC 220/110 50/60Hz | ||
Weight(Kg) | 55 | ||
Dimension(L*W*H)mm | 460*440*460 | ||
Nitrogen Generator
Features(Nitrogen Generator)
1.Nitrogen generators supply ideal ultra pure nitrogen for GC(Gas Chromatography), LC/MS(Liquid Chromatograph/Mass Spectroscopy) and Thermal Analyzer.
2.Continuously generate ultra pure nitrogen through Pressure Swing Adsorption (PSA) technology.
3. Convenient, no corrosion and pollution.
4.Compact structure,save space
Type | Nitrogen Generator | |
Model | NG-300 | NG-500 |
Output Flow(ml/min) | 0-300 | 0-500 |
Output Pressure(MPa) | 0-0.4 | |
Purity (%) | 99.99 | |
Power Voltage(V) | AC 220 50-60Hz | |
Surrounding Requirement | 0-40℃, no dust and corrosive gas | |
Power Consumption(W) | <180 | |
Weight(Kg) | 35 | |
Dimension(L×W×H)mm | 460×290×760 | |
Pure Water Hydrogen Generator
Features( Pure Water Hydrogen Generator)
1. Adopt the world"s leading SPE technology
2. High purity hydrogen (99.999%), stable output flow, safe and convenient to operate, various alarm devices (over pressure alarm, water shortage alarm, water accumulated alarm)..
3. Match with all kinds of GC(Gas Chromatography).
4.No corrosion and pollution
Model | HGC-200 | HGC-300 | HGC-600 |
Output Flow(ml/min) | 200 | 300 | 600 |
Output Pressure(MPa) | 0.4MPa/0.02~0.7MPa (under stable pressure) | ||
Hydrogen Purity(%) | >99.999% | ||
Pressure stability: | <0.001Mpa | ||
Power Consumption(W) | 120W | 150W | 200W |
PowerSupply | AC 220/110V 50/60Hz | ||
External Size(W*D*H)mm | 350*220*340 | ||
NetWeight(kg) | 11 | 11 | 12 |
Features(Nitrogen& Hydrogen& Air Generator)
1.It can replace traditional high pressure cylinders. N2, H2 and air are generated separately or together, intermittently or continuously. The purity of gas will not decay for long time use.
2.Easy to operate,switching power on to produce gas, regular output flow, completely automatic tracking equipment.
3.Generate nitrogen through world’s leading Pressure Swing Adsorption (PSA) technology, which replaces the traditional electrolyte separation technology.
4. It is safe and convenient to operate, has no corrosion toward instrument and supplies gas for 24 hours.
5.Generate hydrogen through world leading SPE (PEM) technology. No longer need to add lye. Without alkali reversion.
6.It’s powered by whole sealing silent air compressor. After purification, water, oil, dust and impurities are removed. Through pressure stable system, pure and silent air is finally produced under stable pressure.
Model | NHA-300 | ||
Gas Type | N2 | H2 | Air |
Output Flow(ml/min) | 0-300 | 0-300 | 0-1000 |
Output Pressure(MPa) | 0-0.4 | ||
Purity(%) | 99.99 | 99.999 | Three-level Purification CO2:0.039% Oil: 0.54ppm |
Power Consumption(W) | <350 | ||
Power Voltage(V) | AC 220/110 50/60Hz | ||
Weight(Kg) | 55 | ||
Dimension(L*W*H)mm | 460*440*460 | ||
