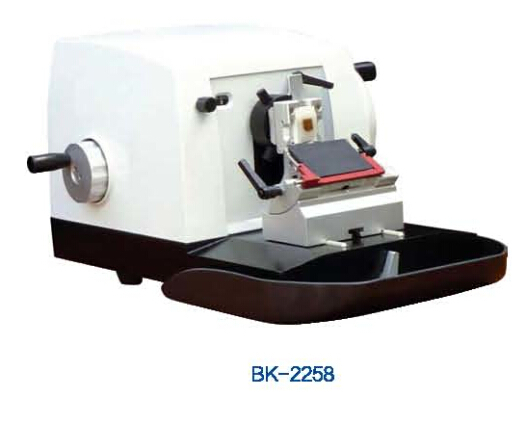

BIOBASE BK-2258 Hand-wheel Manual Microtome
Features
- Easy-to-clean well-sealed housing, no need to remove;
- Right operation hand-wheel can be locked at any position
- Specimen retraction and replaceable cassette holder system
- Ideal sectioning for using either a standard blade or disposable blade
- Cassette holder can be locked at any position along each of the three axes
- Convenient N-type blade holder and E-type holder for disposable blades;
- Blade holder base can be moved forward-or-backward and left-or-right flexibly to eliminating any contact of the fingers with the blade;
- The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables easy changing of the blade;
-
Model
BK-2258
Section Thickness Setting Range
0 - 60μm
SectionThickness Range
0 - 60μm
0 - 2μm increment 0.5μm
2 - 10μm increment 1μm
10 - 20μm increment 2μm
20 - 60μm increment 5μm
MinimumSettingValue
0.5μm
Horizontal Specimen Feed
24mm
Vertical Specimen Stroke
52mm
SpecimenRetraction
0~28mm
Trimming Thickness
1 - 60μm
MaximumSpecimenSize
60* 50mm
PrecisionError:
±1%
Standard Accessories
Standard specimen clamp, Disposable blade holder, Disposable microtome blade(10pc), Waste tray
External Size
520*460*300mm
Package Size
620*530*450mm
G.W.
40kg
Model | BK-2508 |
Section thickness range | 1 -35μm for continuous sectioning; The sectioning thickness can be set at any value >35μm |
MinimumSettingValue | 1μm |
MaximumSpecimenSize | 60* 40mm |
PrecisionError | ±1% |
Blade & Blade Holder | Low profile or high profile disposable blade Steel knife holder or disposable blade holder |
Standard Accessories | Standard specimen clamp, Disposable blade holder, Disposable microtome blade(10pc) |
External Size | 450*320*320mm |
Package Size | 540*450*470mm |
G.W. | 30kg |
Semi-automatic Mircotome
Features
1Automatic return of specimen
2Auto exchange between section and trimming mode
3Imported cross-roller guide rails and a screw motion mechanism
4Sectioning and trimming are completed through the control system
5Hand wheel balance can be locked at any position to assure user"s safety
6Universal cassette clamp and standard specimen clamp; Emergency stop systems
7Advanced driving systems, functions of section, trimming, fast forward, backward etc
8LCD screen shows section and trimming thickness range, numbers of section and trimming
9Easy and fast switching between different specimen clamps (two options: paraffin block clamp and cassette clamp);
10Equipped with a safety alert system, drive-overload protection mechanism and an automatic standby protection mechanism;
11The red bar on the blade holder covers the whole length of blade to protect the user and the push bar enables the easy changing of the blade;
12Blade holder can be laterally moved to avoid moving the blade with direct contact, thereby utilizing the entire length of blade (three different segments);
Model | BK-3358 |
Section Thickness Setting Range | 0 - 60μm |
Trimming Thickness Setting Range | 0 - 100μm |
SectionThicknessRange | 0 - 1μm increment 0.25μm 1 - 10μm increment 1μm 10 - 20μm increment 2μm 20 - 60μm increment 5μm |
TrimmingThickness Range | 0.25~60μm |
MinimumSettingValue | 0.25μm |
Horizontal Specimen Feed | 26mm |
Horizontal Specimen Feed | 52mm |
Specimen Clamp Rotation | Any angle within 360 degrees |
Specimen Orientation | XY – 8° |
Minimum Setting of Sectioning Thickness | 0.25μm |
MaximumSpecimenSize | 50* 50mm |
PrecisionError: | ±1% |
Power Supply | AC220V±10%, 50/60HZ; AC110V±10%, 50/60HZ |
Consumption | 150W |
Standard Accessories | Standard specimen clamp,Disposable blade holder,Disposablemicrotomeblade(10pc),Waste tray |
External Size | 520*430*330mm |
Package Size | 670*550*480 |
G.W | 48kg |
