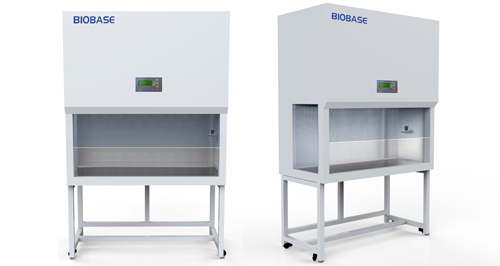

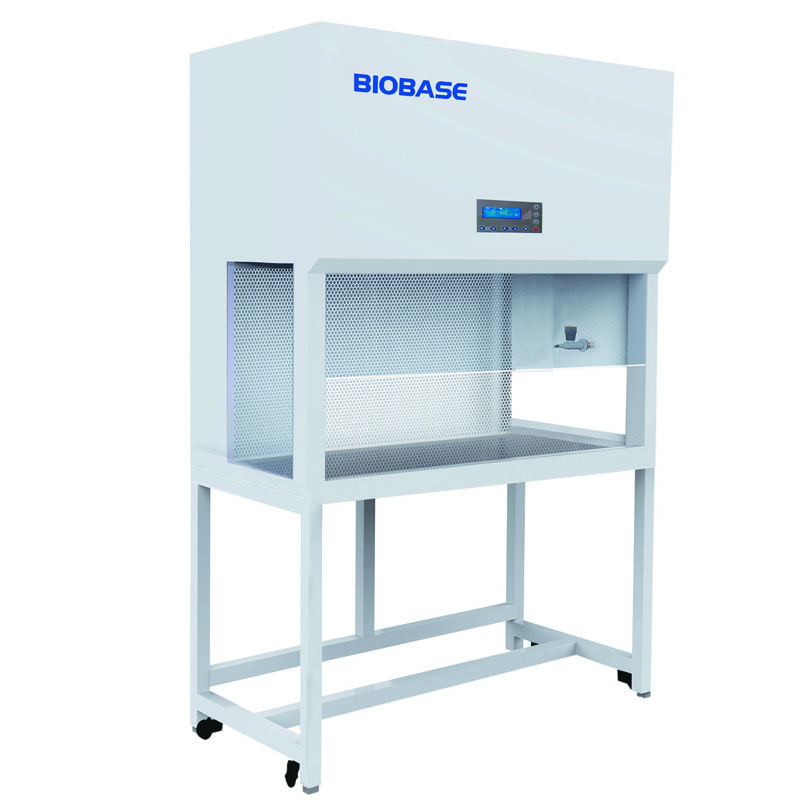

BIOBASE China Horizontal Laminar Air Flow Cabinet
UV Laminar Air Flow Clean Bench
Laminar Flow Cabinet –sample protection only
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Details
LCD Display Waterproof Socket
Airflow velocity, UV timer, UV work time, 2 waterproof sockets are located in the side
system work time, real time panel, for optimum convenience of using small
devices inside the cabinet
UV lamp Gas Tap
Emission of 253.7 nanometers for most
efficient decontamination
Side Glass Window
The transparent side glass windows maximize light and
visibility inside the cabinet, providing a bright and open working environment.
Technical Parameters
Model | BBS-H1300 | BBS-H1800 |
External Size(W*D*H) | 1300*825*2040mm | 1800*825*2040mm |
Internal Size(W*D*H) | 1200*500*570mm | 1700*500*570mm |
Work Surface Height | 750mm | |
Display | LCD Display | |
Airflow Velocity | Average of 0.3~0.5m/s | |
Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | |
Work Table:304 stainless steel | ||
Side and Front Window: 5mm toughened glass, anti-UV | ||
Pre-filter | Polyester fiber, washable | |
HEPA Filter | 99.999% efficiency at 0.3um | |
Noise | <60dB | |
Front Window | Motorized | |
Max Opening | 430mm | |
Fluorescent Lamp | 28W*1 | 28W*1 |
UV Lamp | 30W*1 | 30W*1 |
Emission of 253.7 nanometers | ||
Consumption | 400W | 700W |
Caster | Universal caster with leveling feet | |
Waterproof socket | Two, total load≤500W | |
Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
Standard Accessory | Fluorescent lamp, UV lamp*2, Base stand, Gas Tap, Waterproof socket*2, Water Tap (only for BBS-H1800) | |
Gross Weight | 254kg | 328kg |
Package Size(W*D*H) | 1450*1060*1650mm | 1950*1060*1600mm |
