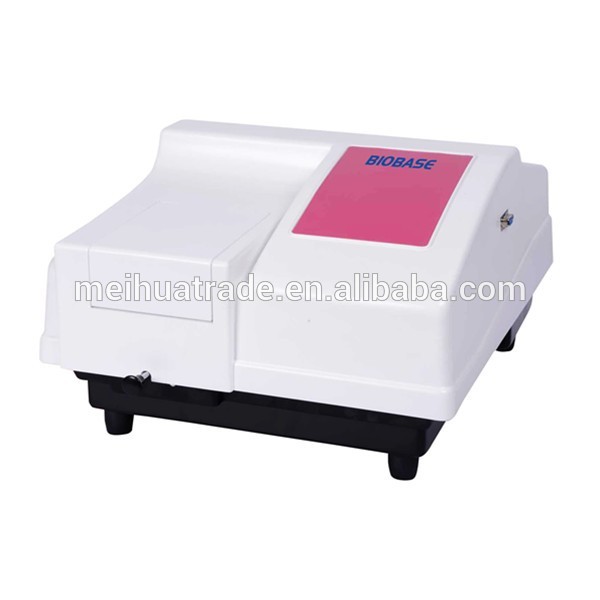

Grating monochromator system NIR spectrophotometer
NIR spectrophotometer,mainly used for liquid samples qualitative and quantitative analysis, applies to gasoline, drinks, milk and other areas of nutrients, water chemistry and other physical properties of the rapid non-destructive analysis determination.
Features:
* Single-channel whole spectrum scanning.
* Fast scan, wavelength calibrates time from 900nm to 1700nm less than 2 minutes.
* Built in SCM technology, auto zero adjustment and auto background subtraction.
Model | BK-S410 |
Wavelength Accuracy | ±1nm |
Wavelength Reproducibility | ≤1nm |
Wavelength Scanning Interval | 4nm or 8nm or 16 nm |
Wavelength Range | 900-1700nm |
Absorbance Reproducibility | 0.002A (at 0.4A) |
Signal to Noise Ratio | ≥ 103 (at 1500nm) |
Scanning Time | ≤2mins |
StandardAccessories | 1cm quartz square sample cell ,1cm cell holder |
Optional Accessories | Laptop |
Optical system | Grating monochromator |
Detector | InGaAs |
Interface | RS232 serial port |
Power Supply | 110V/220±10% ,60/50Hz |
Packing size | 830*570*500mm 12kg |
